Room Sensor
Housing
Models 050 070 100 125 150
Feet Position
1 ‘A/B’
167/124 167/185 167/246 160/314 160/375
Feet Position
2 ‘A/B’
93/198 93/259 93/320 100/374 100/435

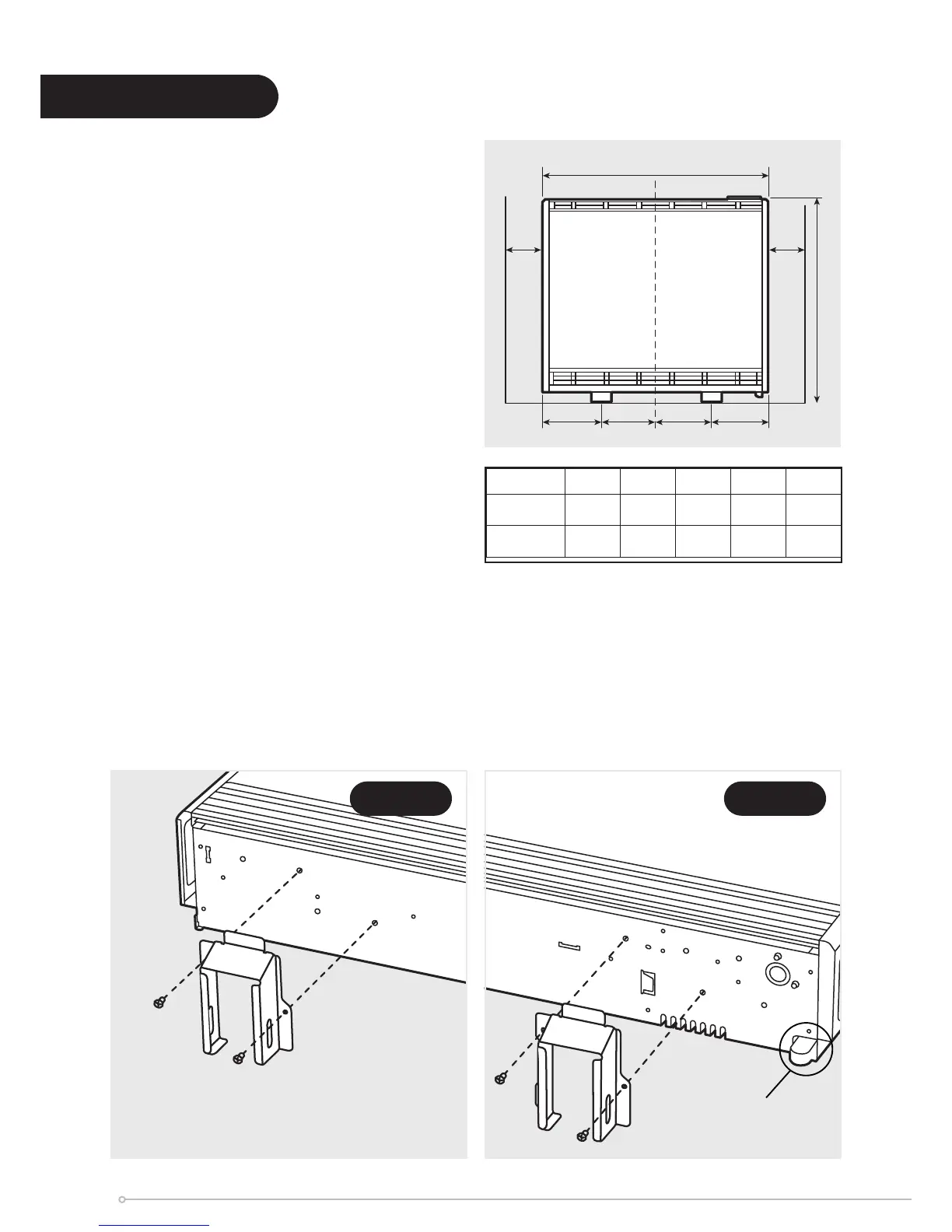

1. Place the heater within its packaging at
on the ground with arrows printed on the
base of the carton pointing upwards.
2. Feet are tted in the default position (X
position) and can be moved to the outside
position (Y position) if necessary. (Fig.
1a and Fig. 1b). NB: Repositioning
of feet may be required depending on
oor arrangement (e.g. replacing an
installation).
Stand the heater on its feet before removing
the packaging.
CAUTION SHOULD BE TAKEN NOT TO
REST THE HEATER UPON THE ROOM
TEMPERATURE SENSOR HOUSING. (Fig. 1b)
Dispose of packaging in an appropriate way.
Read these instructions carefully before
proceeding any further with the installation.
3. Ensure the heater is stable before removing
the screws which hold the bottom grille panel in position. (Fig. 2) Set the bottom grille to one
side, avoiding its sharp edges when handling.
4. Remove the two screws securing the front panel, located at the bottom of the heater (Fig. 3).
Once removed set carefully to one side to avoid damage.
NOTE - Retain these screws for reassembly. If misplaced, M4 x 10 Tritap screws must be used.
IMPORTANT - Do not use the outer top panel or the rear heat shield to lift or carry the heater.
A
749mm
150mm
(min)
150mm
(min)
B
W
BA
Preparation
Fig. 1bFig. 1a
6
To Next Page
