BATTERY CHARGING
WARNING
As with all rechargeable systems, explosive gases
could be vented from the battery on overcharge,
therefore, use the battery charger in a ventilated
area away from sources of ignition.
INTERNAL BATTERY
Charge the battery fully prior to initial use of the test
lamp. Before charging the battery, be sure that the
power switches are in the "off" position.
AC/DC Adapter
Plug the battery charger into the upper jack on the test
lamp (See Figure 2 for location), then plug the power
cord into a standard 120 vac outlet. The LED glows a
steady red while the unit is charging. The LED blinks
to indicate that the battery is fully charged. The time
required to fully charge the battery is approximately 15
hours.
NOTE
Do not use any charger other than the one
provided with the W8067S.
Cigarette Lighter Adapter
Plug the large end of the adapter into an external 12
Vdc power outlet and the other end into the lower jack
on the test lamp. The LED glows steady red with the
external power source connected to the test lamp.
W1212 BATTERY PACK
1. Attach the battery socket. Remove the protective
paper on the adhesive strip that is affixed to the
socket, then locate the socket on top of the battery
as shown in Figure 3 and press it firmly into place.
2. Connect the two spade connectors from the socket
to the battery terminals — small spade connector to
small battery terminal (negative) and large spade
connector to large battery terminal (positive).
3. Connect the charger to the battery socket and plug
the power cord into a standard 120 vac outlet.
4. Charge the battery for approximately 36 hours
initially and 24 hours after each complete discharge.
Do not charge for over 48 hours or damage may
result.
5. To use the W1212 with the W8067S, connect one
end of the cigarette lighter adapter to the socket
on the W1212 and the other end to the lower power
jack on the test lamp.
OPERATION
WARNING
The test lamp creates high heat. To prevent risk
of re, do not lay the test lamp face down on any
surface when it is on. Unplug the test lamp when
not in use.
WARNING
Do not look directly into the test lamp when it is
on or shine it into another person’s eyes at close
range.
GENERAL OPERATING INSTRUCTIONS
Prior to operation, charge the battery fully, following the
instructions in the “Battery Charging” section. Use the
toggle switches on the side of the lamp to turn the light
on and off. Place both switches in the "on" position.
IMPORTANT
When the test light dims, the battery charge is low.
Do not allow the battery to completely discharge.
Fully recharge the battery as soon as possible
after each use.
NEGATIVE SPADE CONNECTOR/
BATTERY TERMINAL
SOCKET
POSITIVE SPADE CONNECTOR/
BATTERY TERMINAL
W1212A1001 BATTERY PACK.
FOR USE WITH:
W8067B1001 TEST LAMP.
FOR USE IN DECLASSIFIED AREAS ONLY.
DETECTOR ELECTRONICS CORPORATION.
6901 WEST 110TH ST.
MINNEAPOLIS, MN 55438
A1721

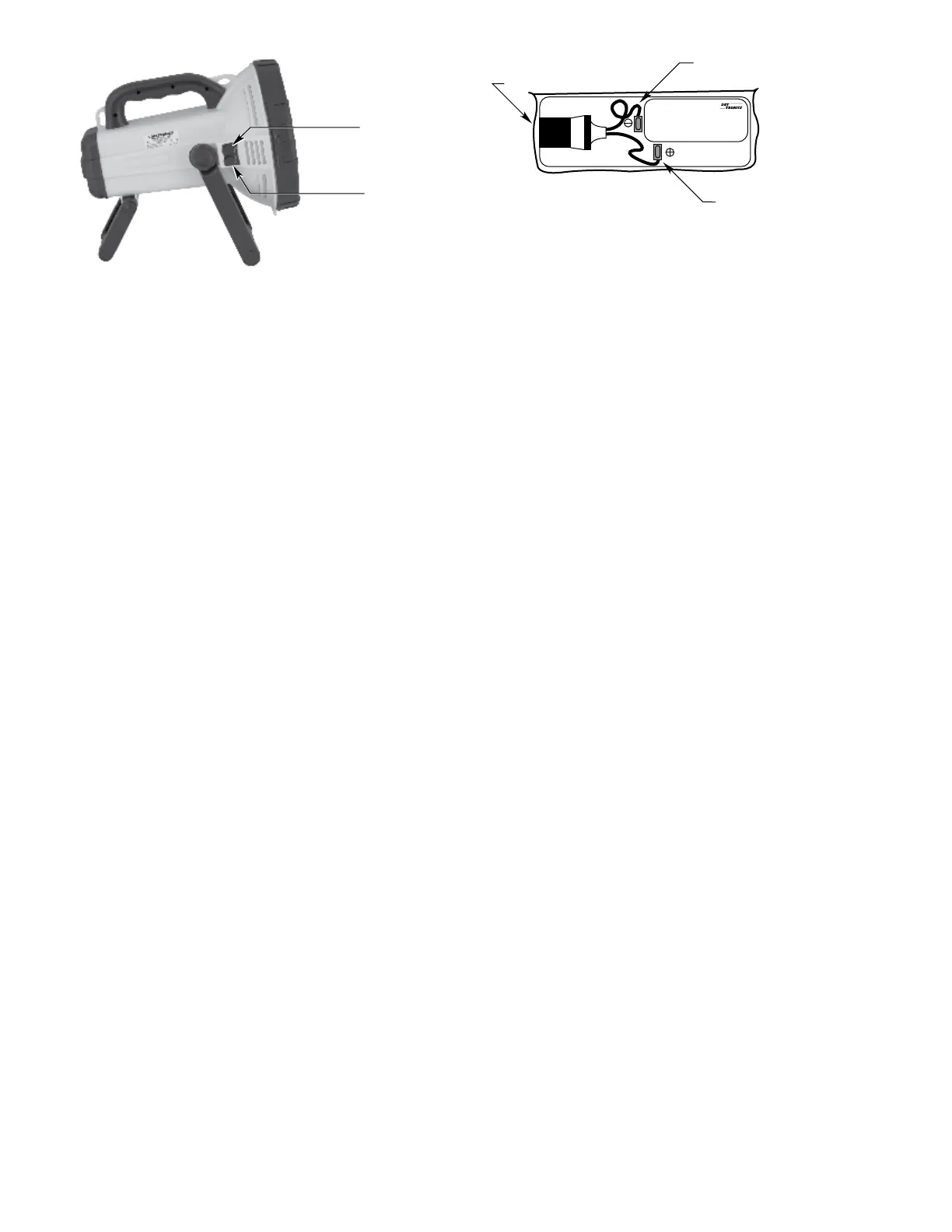

Figure 3—W1212 Battery Pack Connections
CONNECT 120 VAC
BATTERY CHARGER HERE
CONNECT 12 VDC
CIGARETTE LIGHTER
ADAPTER HERE
B2418
Figure 2—Location of Power Terminals
