Page 15 (Programming Mode)

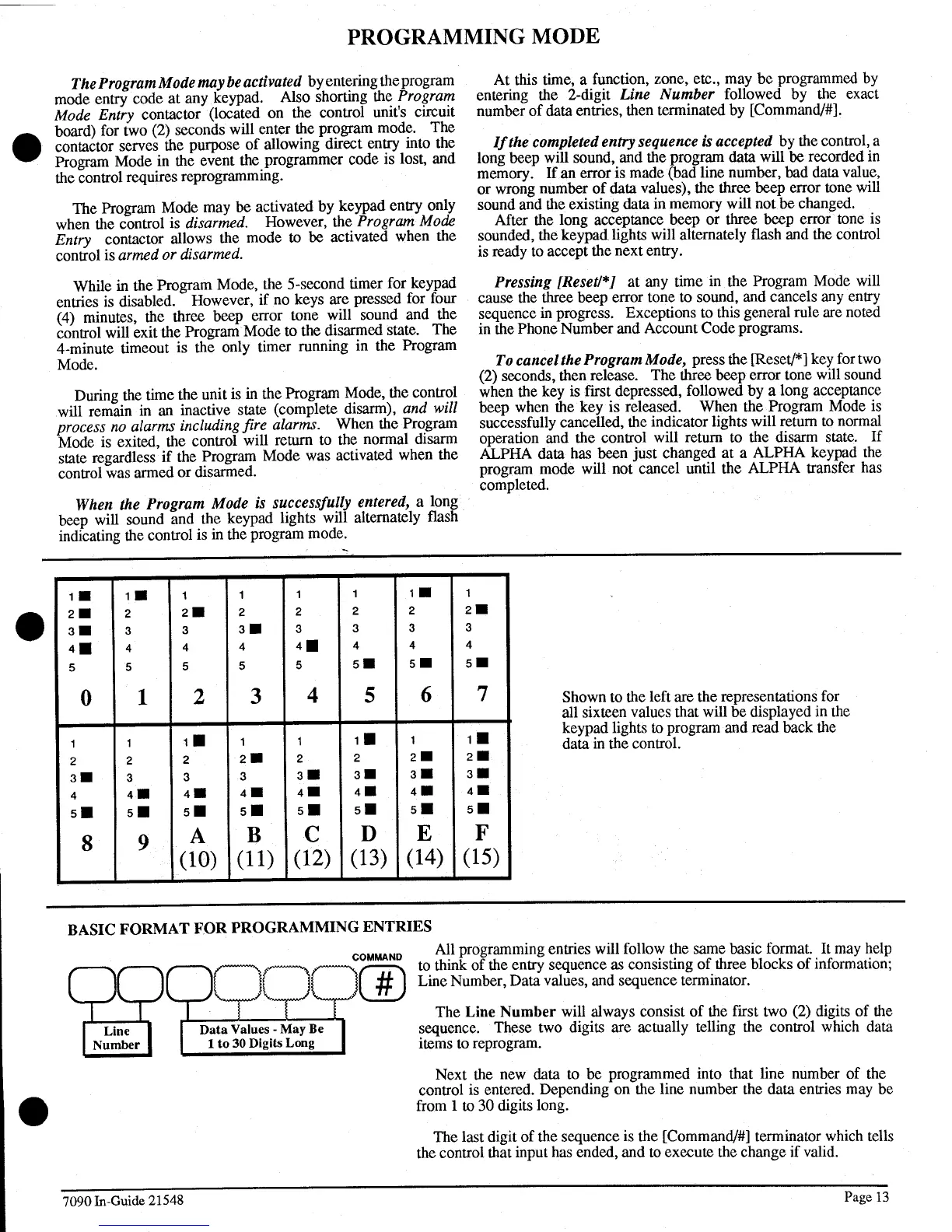

Detection Systems 7090 - Programming Mode; Basic Format for Programming Entries

Detection Systems 7090

38 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Table of Contents

Keypad Quick Reference Guide1
Time of Day Programming1
7090 And 7090TM Specifications2
Table of Contents3
Control Terminal Wiring4
Terminal Functions5
Communication Basics7
Communicator Programming7
Communicator Test Report7
Exception Closing and Opening Report8
Late to Close and Late to Open Reports8
Report Extended8
Restoral Extended8
Keypad Programming9
User Code Reporting9
Closing Ringback9
Emergency Keypad Alarms9
Zone Programming10
Trouble Display10
Keyswitch Zone10
Special Area Protection10
Fire Alarm11
Remote Programming11
Zone Verification11
Phone Line Answering11
Control Testing12
Remote Agency Codes and Passwords12
Calling the Remote Programmer12
Automatic Dialout12
Zone Test also Voltmeter and Phone Line Test13
FCC Compliance Notice13
Canadian Department of Communications13
FCC Phone Connection Notice to Users13
Smoke Detector Placement14
Programming Mode15
Basic Format for Programming Entries15
Key Switch System Programming16
Activate the Program Mode16
Programming Zone 516
Program Data Read Back17
Factory Default Programming17
Cancel the Program Mode17
Programming Reference Guide18
Pr.1 Zone Programming18
Recommended Zone Programming18
Pr.2 Zone Verification Programming19
Pr.3 Custom Arming Programming19
Pr.4 Report Programming for Reports with Restoral20
Pr.5 Report Programming for Reports Without Restoral21
Pr.6 Timer Programming21
Pr.7 Phone Number Programming22
Pr.8 Account Code Programmign22
Pr.9 Communication Format Programming23
Pr.10 Automatic History Report and Reprogramming Time24
Pr.11 Remote Programming Control24
Pr.12 Fire Zone Programming25
Pr.13 General Control Programming25
Pr.14 Programmer Code Programming26
Pr.15 User Code Programming26
Pr.16 System Configuration27
Example Program28
Silent Knight with 4/2 Format28
Silent Knight SK9000 4/2 Format 028
Radionics Nex Reveiver no Fire29
Radionics Hex Receiver with Fire29
Installation Guide for U.L. Installations30
Installation Considerations30
Programming the 709030
Household Fire Alarm30
Local Burglary Alarm31
Police Station Connection31
Central Station Burglary Alarm32
7090 Program Worksheet (Panel Copy)34
7090 Program Worksheet (Record Copy)36
