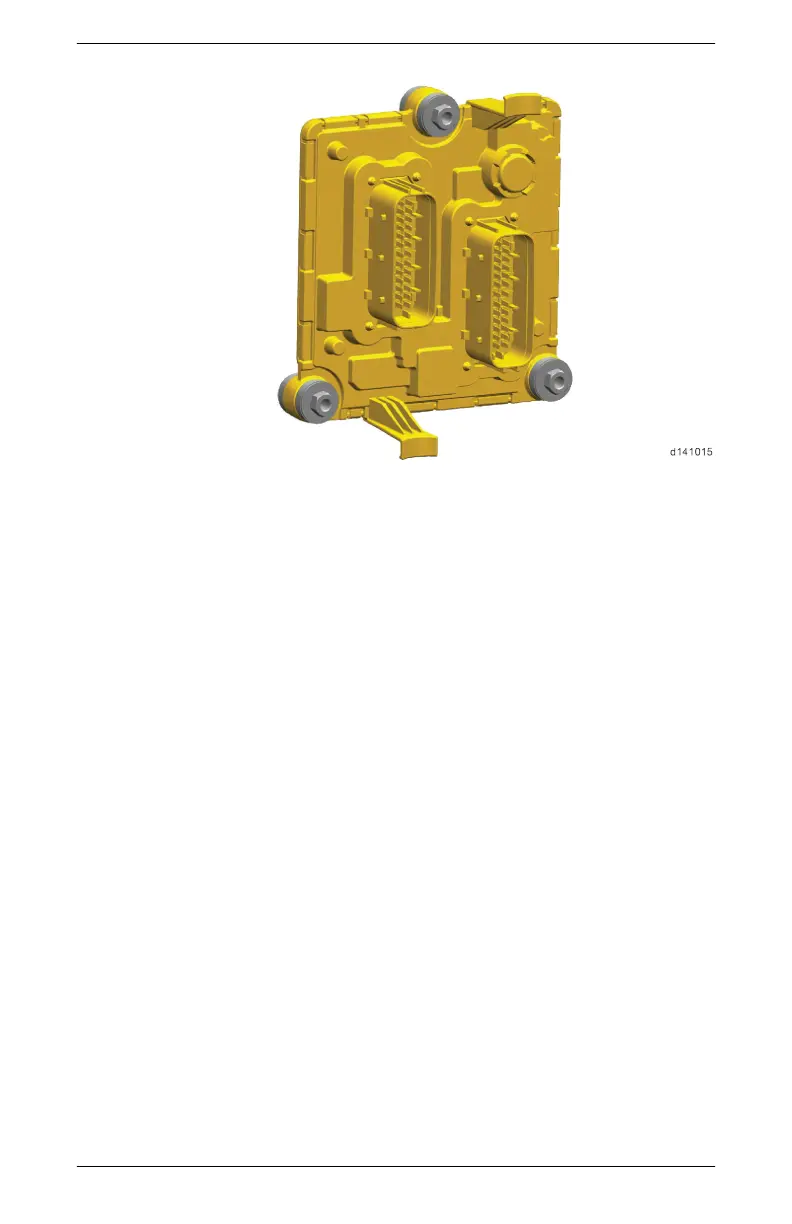

Figure 9. Aftertreatment Control Module
The ACM controls the aftertreatment functions. When a malfunction or other
problem is detected, the system selects an appropriate response to deliver to the
operator. The ACM uses the inputs from the sensors to control the ATS. The data is
compared to the characteristic maps stored in the ACM.
Transmission Control Module
Vehicles equipped with a Detroit Transmission will also be equipped with a TCM.
The TCM will be mounted on the left side of the transmission (see graphic below).
Gen 5 DD Platform Operators Manual
All information subject to change without notice. 35
DDC-SVC-MAN-0217 Copyright © 2020 DETROIT DIESEL CORPORATION
