ELECTROVAP KIT MC
Maintenance - Valves

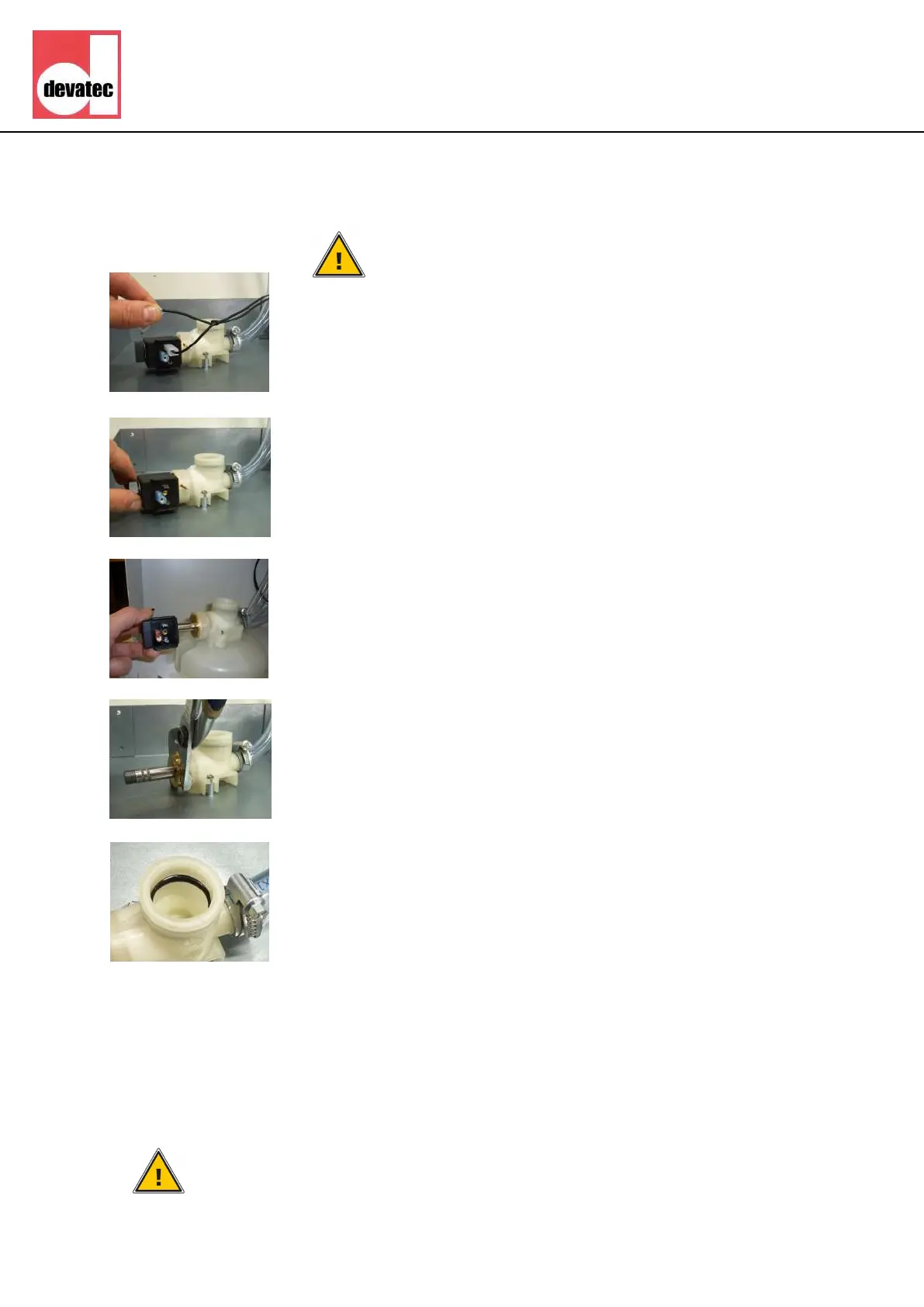

The drain valve should be maintained whenever the
steam cylinder is maintained or changed.
Once the steam cylinder has been pulled out (please
refer to the « cleaning of the steam cylinder » page ),
disconnect the drain valve supply wires.
Unscrew the solenoid retaining nut and remove the
washer. Put them on the cylinder compartment tray.
Remove the coil from the valve stem.
Unscrew and remove the valve stem and the filling hose
from the valve body.
Important : Apply some soap on the O-ring and the
cylinder draining outlet
Remove the « O » ring and the drain valve collar.
Remove any pieces of calcius, rinse the steam and the
body with fresh water.
Assemble in reverse order.
It is now time to locate the new or cleaned steam cylinder in its compartment in
proceeding this way : set the maintaining clip on the steam cylinder outlet, engage the
drain outlet into the drain valve and push the cylinder downward. Reconnect the power
cables. Make sure that the power cable with the brown identification mark be connected
to the cylinder connection identified with a brown spot. If the brown spot is missing, the
cylinder electrode connection can be identified as the one closest to the high water level
probe. Locate the steam hose and fasten the clamp.
Ensure that all the clamps are properly tightened whenever the humidifier
is maintained.
ENTRETIEN DE LA VANNE DE VIDANGE
