ELECTROVAP KIT MC

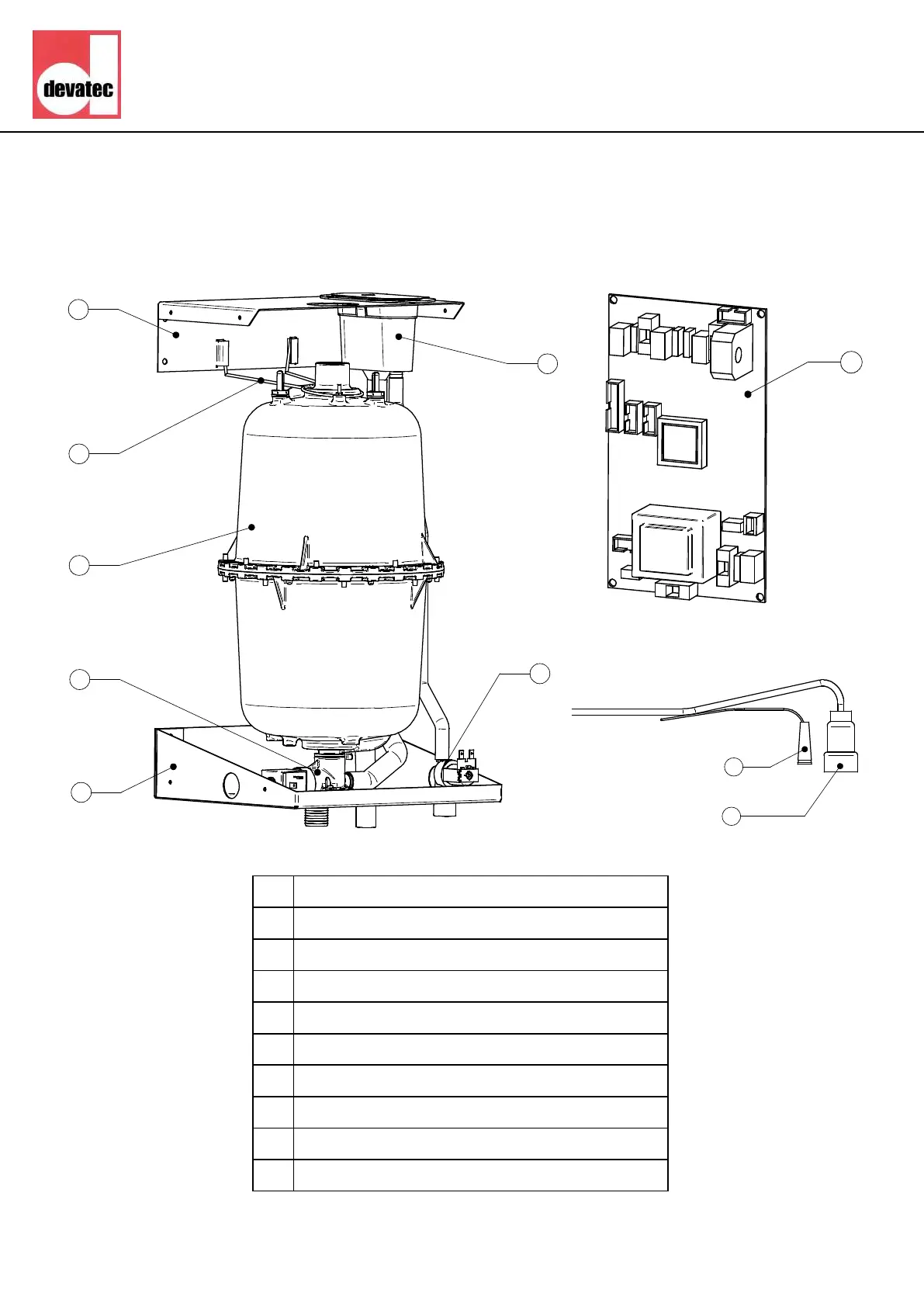

KIT MC component parts
1
2
3
4
5
6
7
10
9
1 Bracket (lower)
2 Drain valve
3 Steam cylinder
4 Cylinder holding spring
5 Bracket (upper)
6 Filling cup
7 Inlet valve
8 Main electronic board (Ref: 500102)
9 High water level electrode wire
10 Power electrode wire (x3)
Example : KIT MC 5 to 30
