30
FIGURES, DIAGRAMS, AND VIEWS
Sieve Bed
Cable Tie

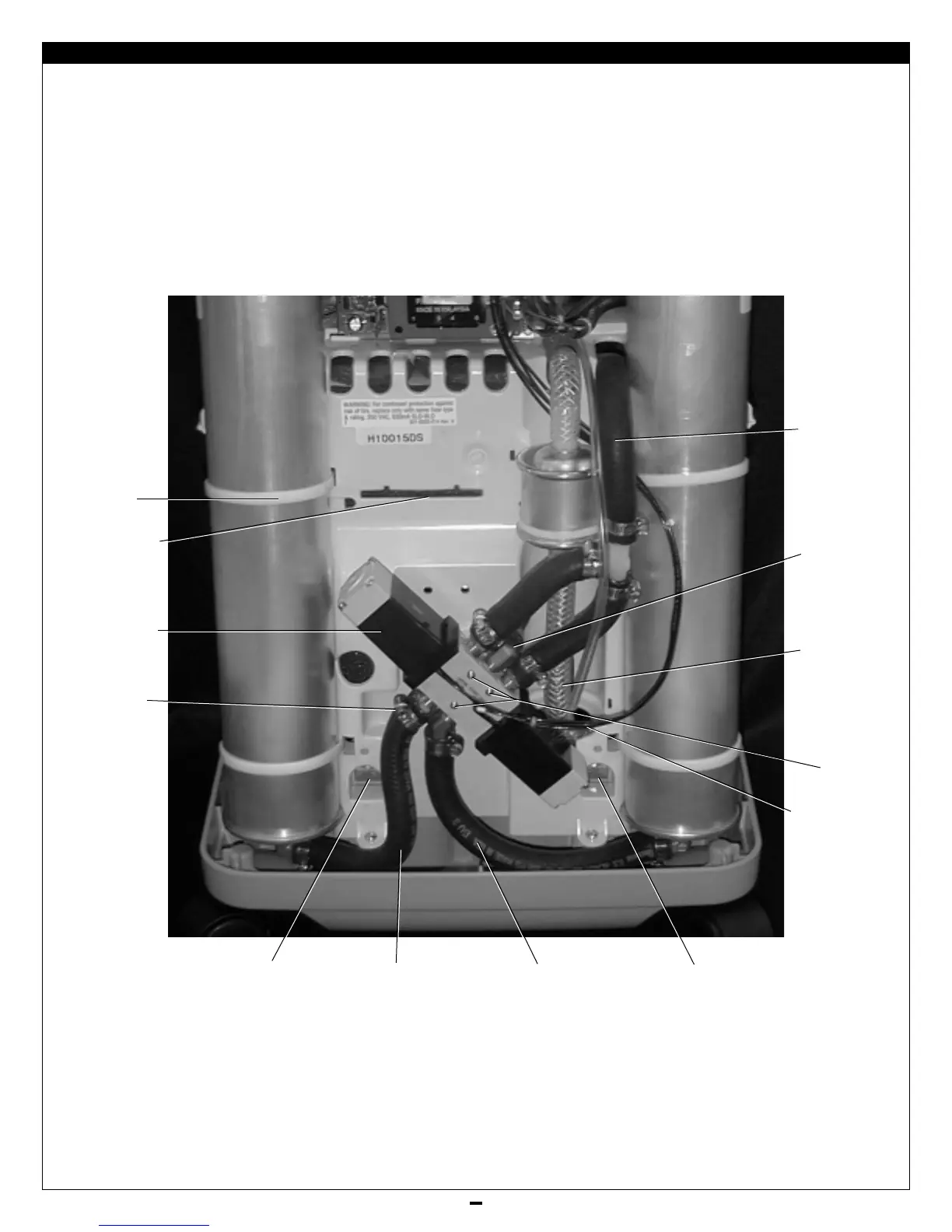

Figure 6A. Interior, Front Lower View (early valve version)
Compressor Mounting
Plate Hex Nut
Compressor Mounting
Plate Hex Nut
Slot for Bib Tab
Four-Way Valve
Hose Clamp
for
1/2"
Rubber Hose
Hose to Right
Sieve Bed
Hose to Left
Sieve Bed
Four-Way
Retaining Screws
Four-Way Wires
1/2" ID Hose
(Braided)
Pressure Inlet
from
Compressor
1/2" ID
Exhaust Hose
(Nitrogen)
