devibliss 515DS - Page 34

34
FIGURES, DIAGRAMS, AND VIEWS
Flow Meter

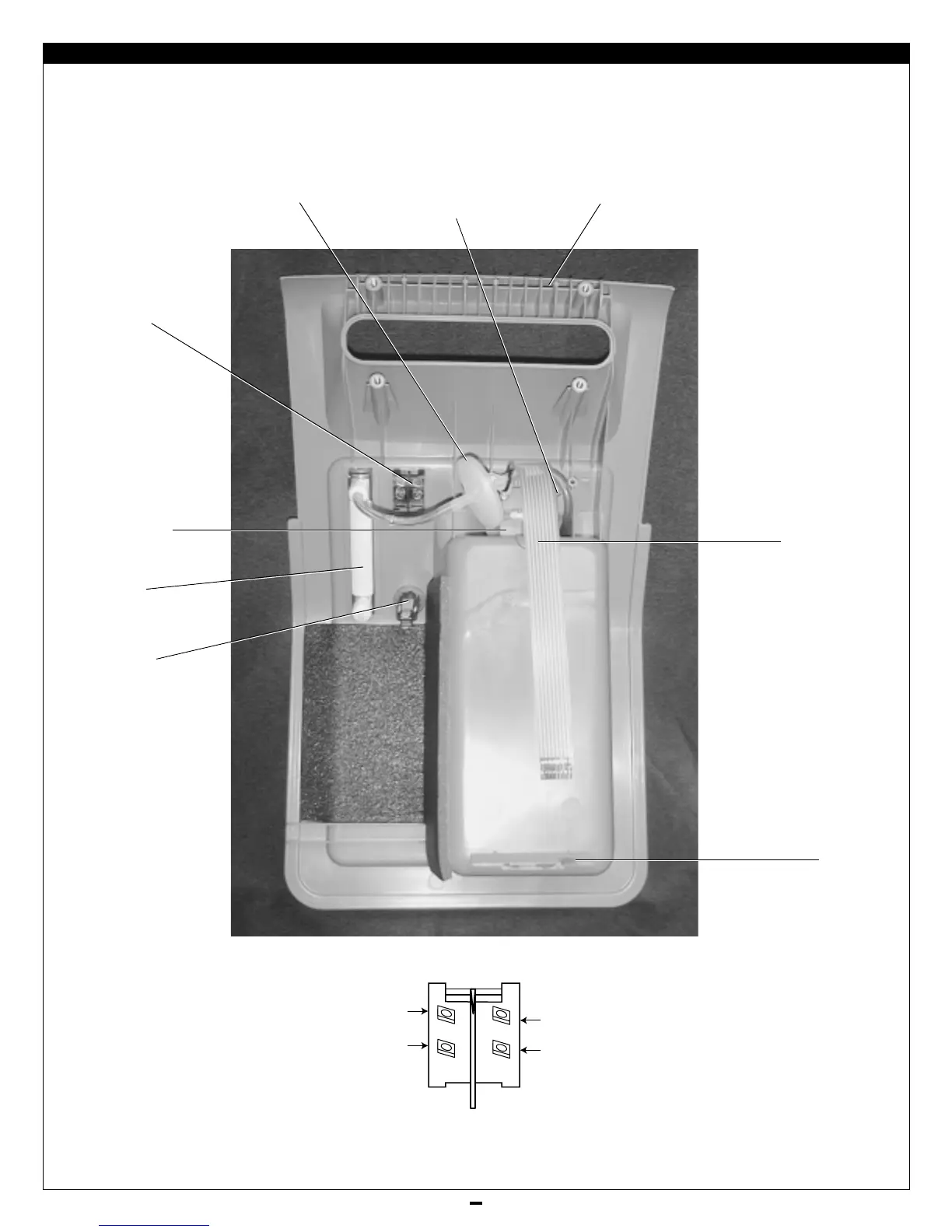

Figure 8. Interior, Behind Bib View
Power Switch
Final Bacteria Filter
Circuit Breaker
Final Check Valve
Oxygen Outlet
Port Screw
Handle
Bib Tab
Light Panel
Ribbon Connector
RED WIRE
SWITCH DETAIL
RED WIRE
BROWN WIRE
2 BLACK WIRES
EITHER RED WIRE CAN BE CONNECTED TO
EITHER LEFT HAND TERMINAL OF SWITCH
Brown Wire (or 2 Black Wires)
Red Wire
Red Wire
2 Black Wires (or Brown Wire)
