Devine Artis 12A - Amplifier Module Overview; Controls and Connections Explained

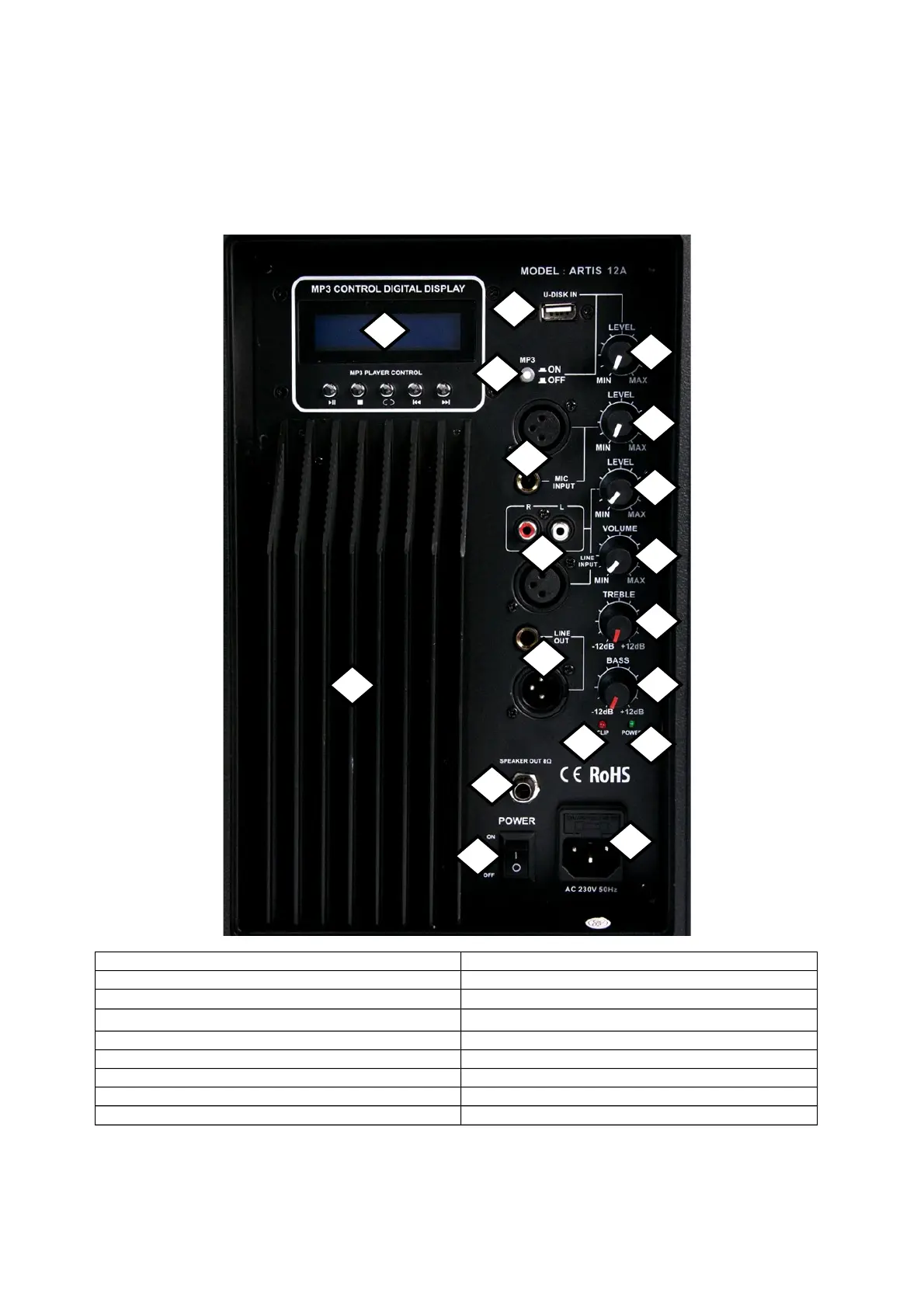

Power amplifier module section
The built-in power amplifier module, combined with the built-in MP3-player, connectors and volume controls,
has several options. A short explanation for each feature is described below:
1. MP3 player display with menu buttons 10. EQ adjustment – treble (+/- 12 dB)
2. MP3 player USB input 11. EQ adjustment – bass (+/- 12 dB)
3. MP3 player on/off switch
12. CLIP LED indicator (red)
4. MP3 player level control
13. Power LED indicator (green)
5. Microphone input (XLR / 6.35 mm TRS) 14. Passive speaker power output (8 Ohms)
6. Microphone level control 15. Power on/off switch
7. Line input (stereo RCA/mono XLR balanced) 16. IEC power input with fuse holder
8. Line input level control 17. Amplifier heatsink
9. Main volume level control
18. Line output – balanced XLR or 6.35 mm TRS
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 27-03-2014 RV
