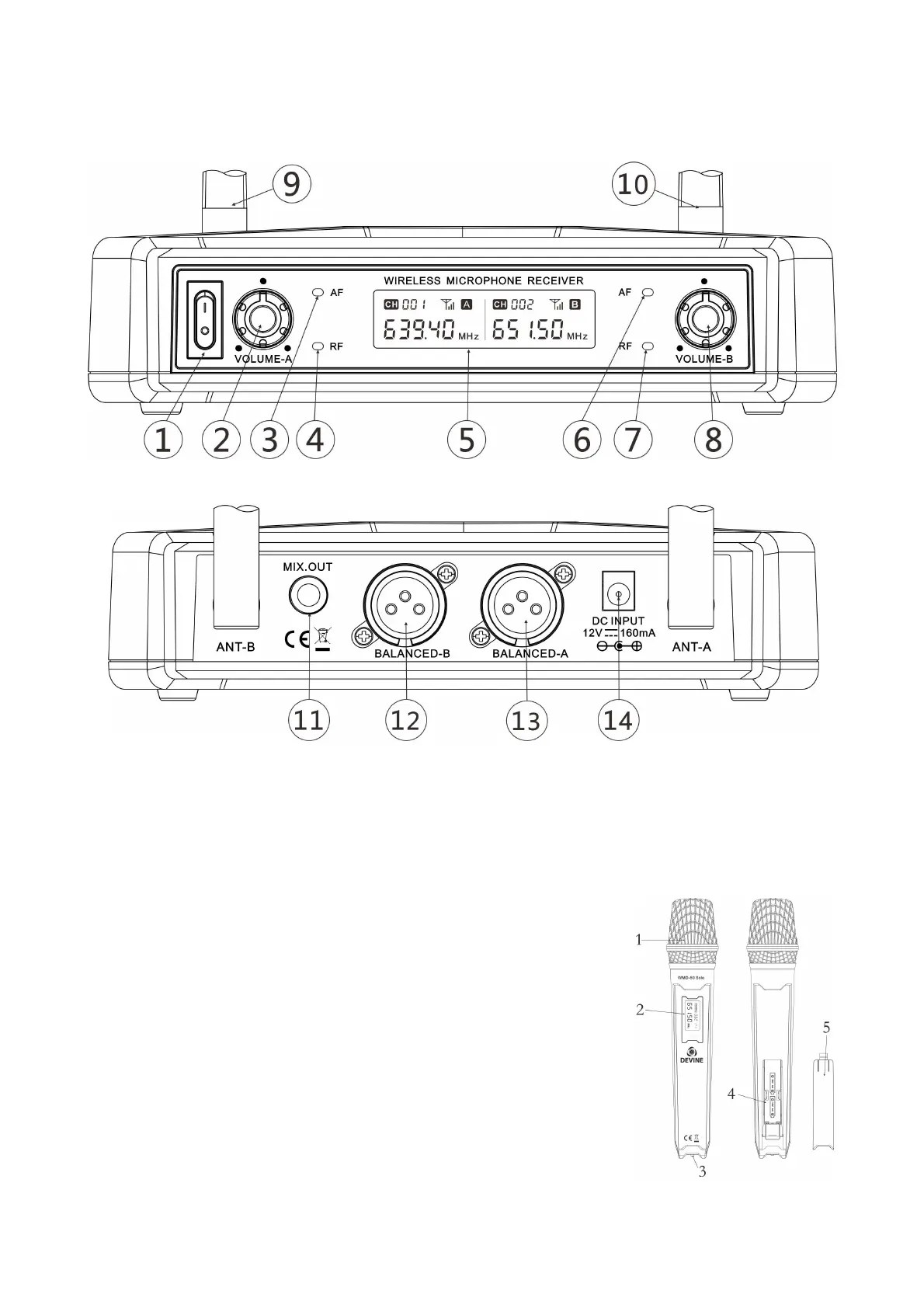

Overview & Use
Receiver:
1. ON/OFF switch
2. Microphone A volume control
3. AF signal indicator A (audio level strength)
4. RF signal indicator A (transmission signal strength)
5. LCD display with channel selection indicator, frequency etc.
6. AF signal indicator B (audio level strength)
7. RF signal indicator B (transmission signal strength)
8. Microphone B volume control
9. Antenna microphone A
10. Antenna microphone B
11. Mixed audio output via 6.35 mm TS jack
12. Balanced 3-pin XLR audio output for microphone B
13. Balanced 3-pin XLR audio output for microphone A
14. Power supply input
Handheld microphones:
1. Microphone grille
2. LCD display screen with basic info
3. Antenna
4. Battery compartment
5. Battery cover
The information included in this user manual is subject to change at any time and without notification:
Version:
1.0
Date and author initials: 04-08-2020 RV Revision and author initials: -
