Oscillation
Press the OSC button for the fan to automatically vertically oscillate.
Press the Swing button for the fan to automatically horizontally oscillate.
Note:Do not attempt manual oscillation over 100°.
Installation

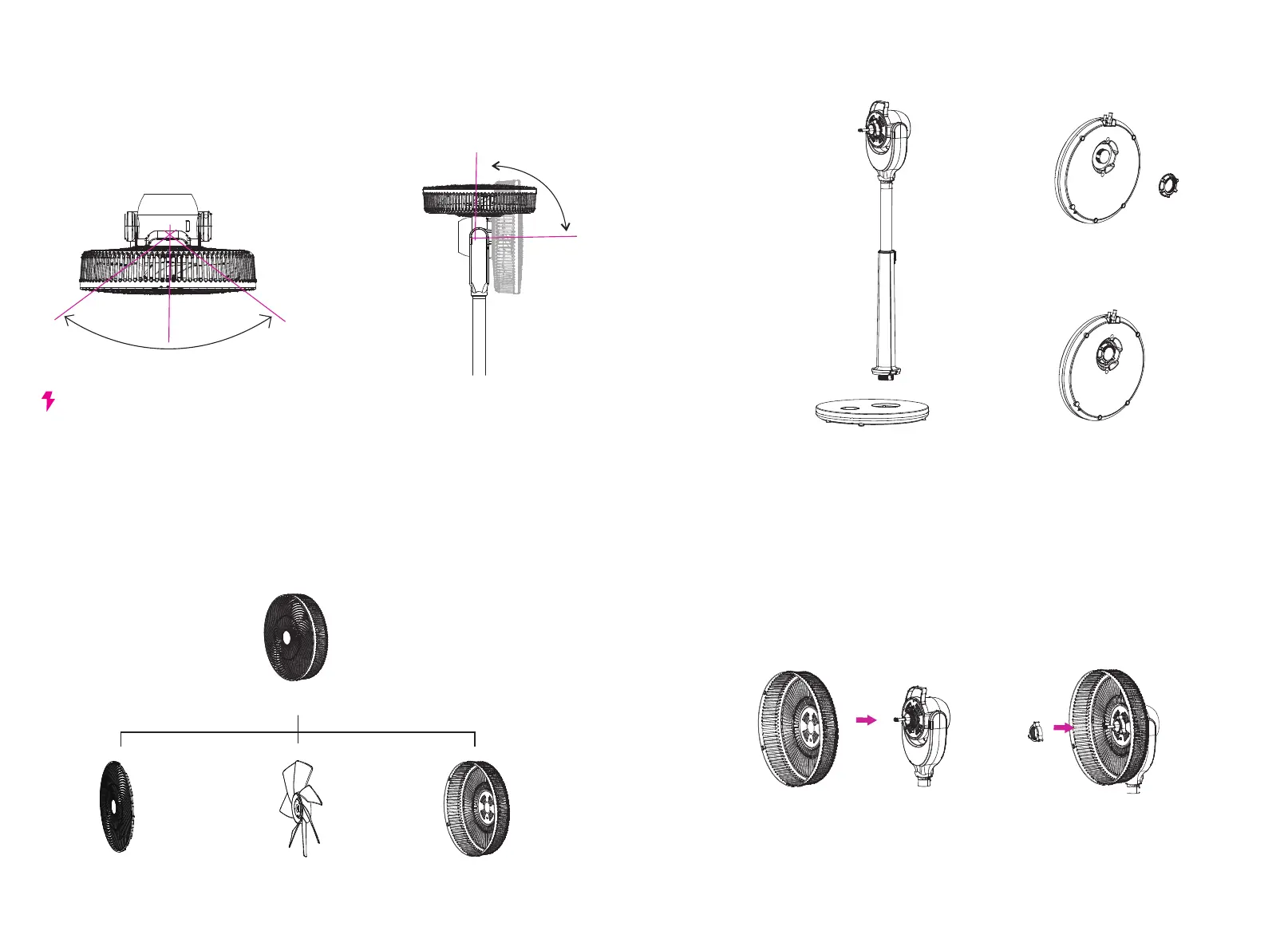

1. Take out the Fan’s Assembly
Rotate the fan guard clockwise, remove the front mesh and take out the blades.
Front Guard
Blade Rear Guard
Fan’s Assembly
Align motor + support with base socket
according to graphic direction, insert
lower end of support into base socket
Put the screw into the bottom
Turn the screw clockwise
and tighten the base bolt
to fix it
2. Install the Pedestal
3. Install the Rear Guard
Position the rear guard on the motor head and tighten the knob clockwise to attach
the guard to the motor head.
100°
90°
Left-right oscillation of 100° Up-down swing oscillation of 90°
Note:Ensure that the fan blade is tightend, otherwise there is a danger hazard!
-5-
-6-
