Devolo Magic 2 LAN DINrail User Manual

1 2
EN: Installation by person with relevant electrotechnical knowledge and experience only!
DE:  ArbeitenmüssendurcheineElektrofachkraftmitentsprechenderQualikationerfolgen.
FR:  Lestravauxdoiventêtreeectuésparunélectricienqualié.
NL:  Werkzaamhedenmoetenwordenuitgevoerddooreengekwaliceerdeelektricien.
ES:  Lostrabajosdeberárealizarlosunelectricistadebidamentecualicado.
IT:  Gliinterventidevonoessereeseguitidaunelettrotecnicoqualicato.
PTG:  Ostrabalhostêmdeserefetuadosporumeletricistaespecializado,comarespetivaqualicação.
GR: Οι εργασίες στον ηλεκτρικό πίνακα πρέπει να αναθέτονται για λόγους ασφαλείας σε εξειδικευμένους
ηλεκτρολόγους.

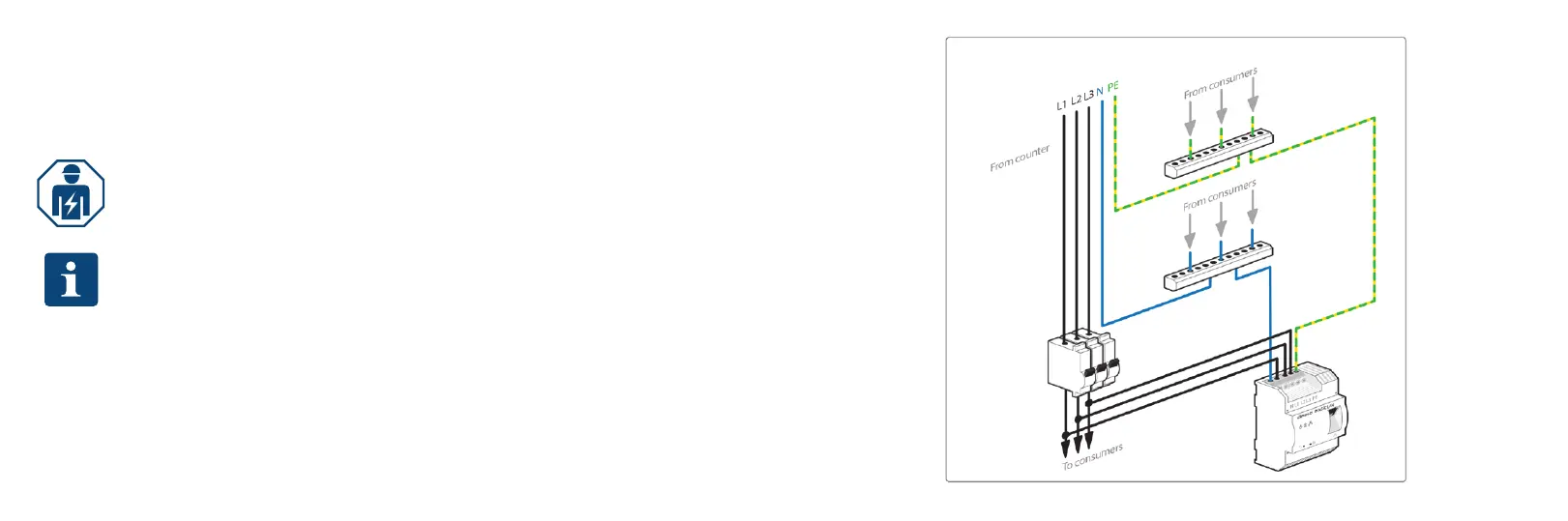

A) 3-phase installation without residual current circuit breaker

Devolo Magic 2 LAN DINrail Specifications

General

Wi-Fi	-
Ethernet LAN	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	2400 Mbit/s
Certification	CE
Product color	White
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	0.7 W
Power consumption (typical)	4.8 W
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	92 mm
Width	118 mm
Height	190 mm
Antenna length	405 mm
