18
Belt Care
A damaged or worn belt may prevent the mower from
self-propelling. Periodically inspect the belt and pulley
system for damage or wear. If necessary contact an
authorized Service Center to have belt replaced.
NOTE: Several components must be removed in order
to change the mower’s drive belt. See an authorized
Service Center to have belt replaced.

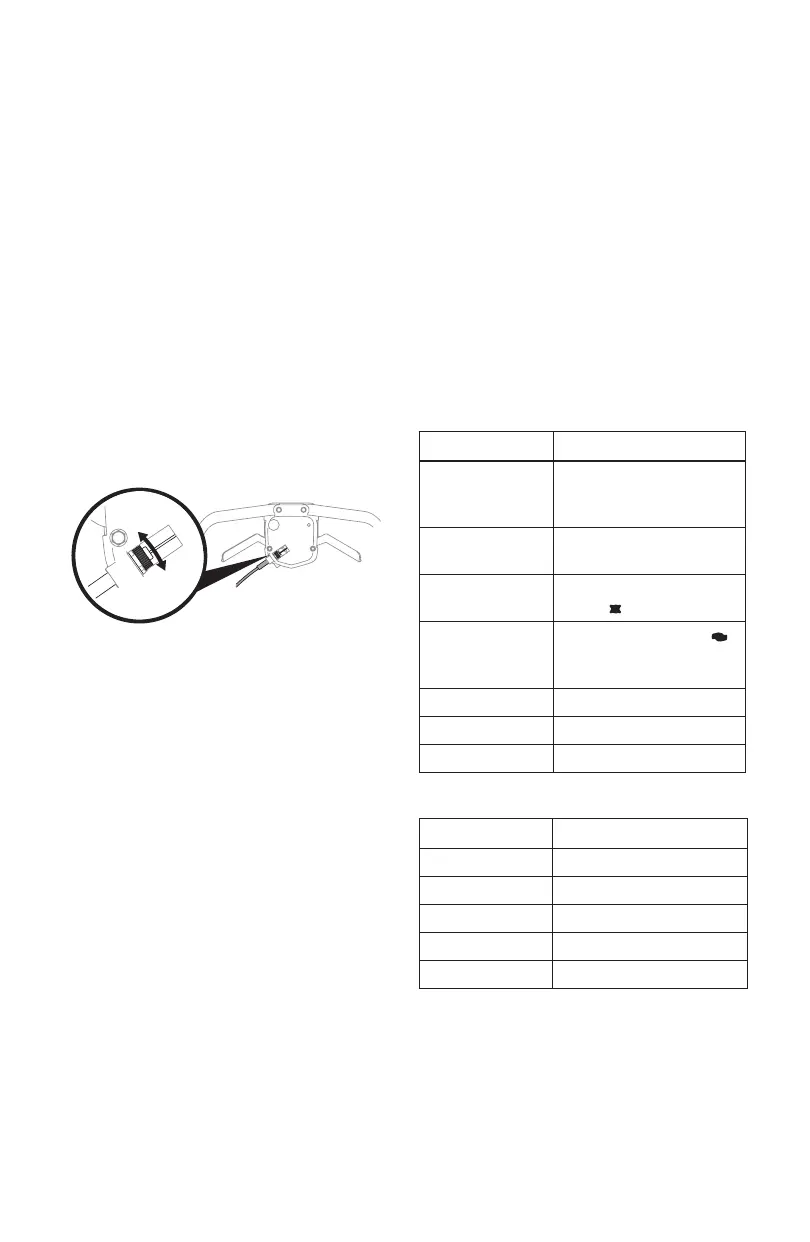

Dual Lever Drive Control Adjustment
(If Equipped)
If equipped, there is an adjustment wheel located in the
drive control handle housing that is used to tighten or
loosen the drive belt. You will need to adjust the drive
control if the mower does not propel itself with the
drive control engaged or if the mower’s wheels hesitate
with the drive control engaged. If either of these
conditions occur, rotate adjustment wheel clockwise to
tighten cable or counterclockwise to loosen the cable
(Figure 20).
Tighten
Loosen
Figure 20
PRODUCT CARE, cont'd
Customer Support
For machines needing service or parts
replacement please contact your local DEWALT
®
Service Center or the Customer Support
Department before attempting to return
the machine.
If you have difficulty assembling this product, have
questions regarding the controls, operation, or
maintenance of this machine, want to order replacement
parts/attachments/accessories, or want to view an online
How-To video; you can seek help from the experts. Have
your full model number and serial number ready. Choose
from the options below:
◊ Web: www.DEWALT.com.au
◊ Phone: 1300-951-594
Replacement Parts
Part Number Description
634-07619
Wheel (Rear - 8” x 2”,
Sleeve Bearing: Zag
Tread)
634-07634
Wheel (Rear - 11” x 2”, Ball
Bearing: Zag Tread)
942-0741A
Mulching Blade (Bow Tie
Mount
)
742P05643
Mulch Blade (S Mount
, Serial numbers starting
with the number 2 only.)
731-07486 Discharge Chute
764-04082D Grass Bag (Bag Only)
954-04282 Belt (RWD)
Accesories Parts
Part Number Description
490-850-0005 Blade Removal Tool
490-850-0018 Spark Plug Wrench
490-850-0008 Oil Siphon
490-850-0016 Side Discharge Blower
490-290-0012 Mower Cover
