ENGLISH

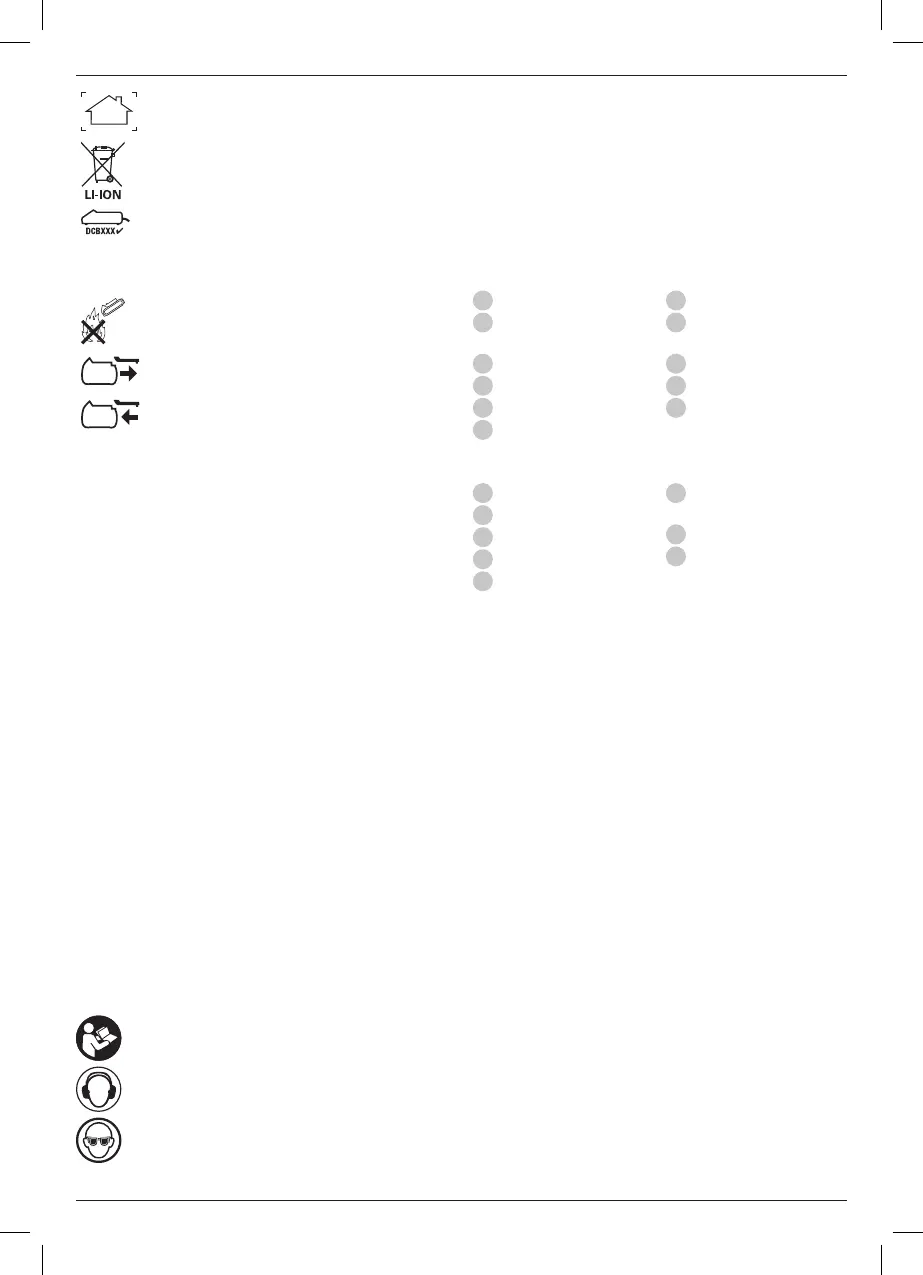

Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other
than the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh).
Battery Type
The DCF620 operates on an 18 volt XR Li-ion batterypack.
These battery packs may be used:DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
1 Cordless drywall screwdriver
2 Battery packs
1 Battery charger
1 TSTAK compatible kitbox
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Date Code Position
The date code, which also includes the year of manufacture, is
printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Depth locator
2
Screw depth adjustment
collar
3
Locking collar
4
Nose cone
5
Battery release button
6
Battery pack
7
Trigger switch
8
Forward/reverse control
lever
9
Lock-on button
10
LED worklight
11
Belt hook
Collated Magazine Attachment DCF6201 (Fig.E)
(Available separately)
12
Screw guide
13
Screw length adjustment
14
Fine depth adjustment
15
Advancing mechanism
16
Shoe
17
Advancing mechanism
release button
18
Release Buttons
19
Collated attachment
screwdriver bit
Intended Use
Your drywall screwdriver has been designed for driving
drywall fasteners through drywall board into timber or metal
framingstuds.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This drywall screwdriver is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Dead Spindle Drive Clutch
This screwdriver is equipped with a dead spindle feature; the
spindle does not turn until the fastener is pressed into the
workpiece. This enables fasteners to be placed onto the drive
accessory of a runningscrewdriver.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
