DeWalt DCMWP500 - Description (Fig. A); Intended Use; Assembly and Adjustments; Single Touch Handle Adjustments

54
ENGLISH
Date Code Position (Fig. E)
The production date code
61
consists of a 4-digit year followed
by a 2-digit week and is extended by a 2-digit factorycode.

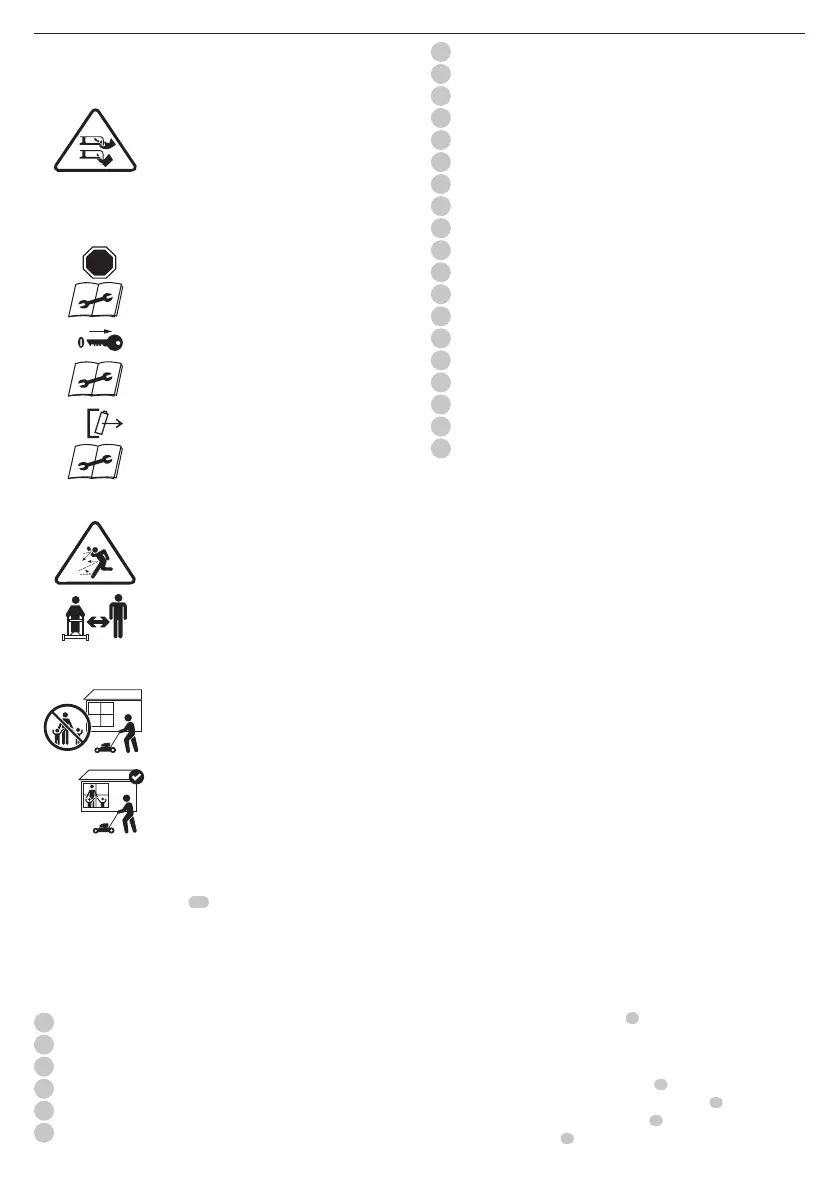

Rotating blades can cause serious injury.
Keep hands and feet clear of mower deck
and discharge opening at all times. Always
be sure blade has stopped. Release bail
handle to turn mower off and wait for
the blade to stop rotating (approximately
3seconds) and remove the safety key
and battery pack before removing and
replacing grass catcher, cleaning, servicing,
transporting or lifting themower.
Turn mower off and wait for the blade to
stop rotating (approximately 3seconds)
and remove the safety key and battery pack
before cleaning, servicing, transporting or
lifting themower.
Objects struck by mower blade can cause
serious injury. Stay behind the handle
when the motor is running. Always ensure
persons and pets are a safe distance from
the mower while operating. Release bail
handle to turn mower off and wait for
the blade to stop rotating (approximately
3seconds) before crossing walk, roads,
patio and graveldrives.
Keep children and bystanders away while
operating mower.
7
Switch box
8
Bail handle
9
Self drive lever (DCMWSP550 only)
10
Speed adjustment dial (DCMWSP550 only)
11
Power button
12
Control panel
13
Overheat indicator
14
Cutting load meter indicator
15
Handle folding indicator
16
Blade sharpening indicator
17
Blade reset button
18
State of charge indicator
19
Battery port cover
20
Cut height adjustment lever
21
Rear door cover
22
Grass collection bag
23
Grass collection bag handle
24
Mulching plug
25
Rear side discharge chute
Intended Use
This lawn mower has been designed for professional lawn
mowingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This lawn mower is a professional lawn care appliance.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS

DANGER: To reduce the risk of serious personal
injury, turn unit off and remove the safety key and
battery pack before making any adjustments or
removing/installing attachments or accessories. An
accidental start-up can causeinjury.
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Single touch handle
2
Handle support
3
Handle unlock button
4
Main handle
5
Handle release button
6
Safety key
Single Touch Handle Adjustments (Fig. D, E)
The mower is shipped in the storage position. You will need
to adjust the single touch handle
1
to the operating position
beforecontinuing.
Raise the Single Touch Handle (Fig. D, E)
1. To unlock the single touch handle
1
from the storage
position, squeeze the handle unlock button
3
.
NOTE: The handle unlock button
3
is located on the back
of handle support
2
.
