charger. Be sure to read all safety instructions before
using your charger. Consult the chart at the end of this manual for
compatibility of chargers and battery packs.
Charging Procedure(Fig. 1)
1. Plug the charger into an appropriate
J
FIG. 1
outlet before inserting the battery pack.
2. Insert the battery pack (J) into the
charger, as shown in Figure 1, making
sure the pack is fully seated in
charger. The red (charging) light will
blink continuously, indicating that the
charging process has started.
3. The completion of charge will be
indicated by the red light remaining ON
continuously. The pack is fully charged
and may be used at this time or left in
the charger.

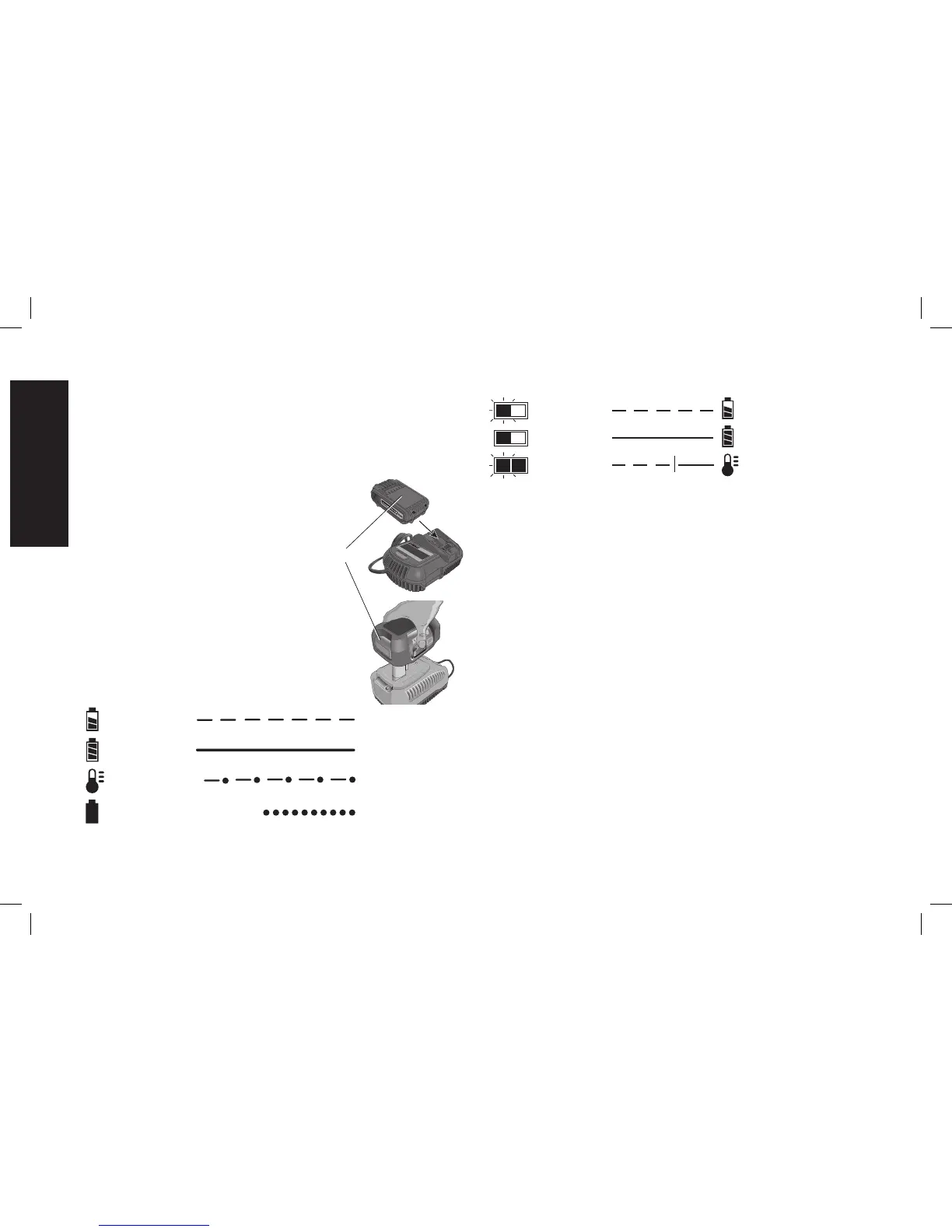

Indicator Light Operation
DCB101, DCB102, DCB103
PACK CHARGING
PACK CHARGED
x
HOT/COLD DELAY
PROBLEM PACK OR CHARGER
DCB107, DCB112, DCB113, DCB115
PACK CHARGING
PACK CHARGED
HOT/COLD DELAY
Charge Indicators
This charger is designed to detect certain problems that can arise.
Problems are indicated by the red light flashing at a fast rate. If this
occurs, re-insert the battery pack into the charger. If the problem
persists, try a different battery pack to determine if the charger is
working properly. If the new pack charges correctly, then the original
pack is defective and should be returned to a service center or other
collection site for recycling. If the new battery pack elicits the same
trouble indication as the original, have the charger and the battery
pack tested at an authorized service center.
HOT/COLD DELAY
DCB101, DCB102, DCB103
These chargers have a hot/cold delay feature. When the charger
detects a battery that is too hot or too cold, it automatically starts
a delay, suspending charging. The red light flashes long, then short
while in the hot/cold delay mode.
Once the battery has reached an optimum temperature, the charger
will automatically resume the charging procedure. This feature
ensures maximum battery life.
DCB107, DCB112, DCB113, DCB115
These chargers have a hot/cold delay feature. When the charger
detects a battery that is too hot or too cold, it automatically starts a
delay, suspending charging. The red light will continue to blink, but a
yellow indicator light will be illuminated during this suspension.
