DeWalt DH4240B - Pressure Washer DH4240 B Overview; Engine Details and Controls; Pump Model and Oil Specifications

2
English
A. Panel assembly
B. Nozzle Grommets
C. Professional Spray gun
D. Wheel
E. Quick-connect
spray wand
F. Frame
G. Engine dipstick/oil plug
H. Engine switch
I. Starter grip
J. Engine
K. Throttle control lever
L. Choke control
M. Fuel valve lever
N. Gas cap
O. Handle assembly
P. High-pressure hose
Q. High-pressure pump

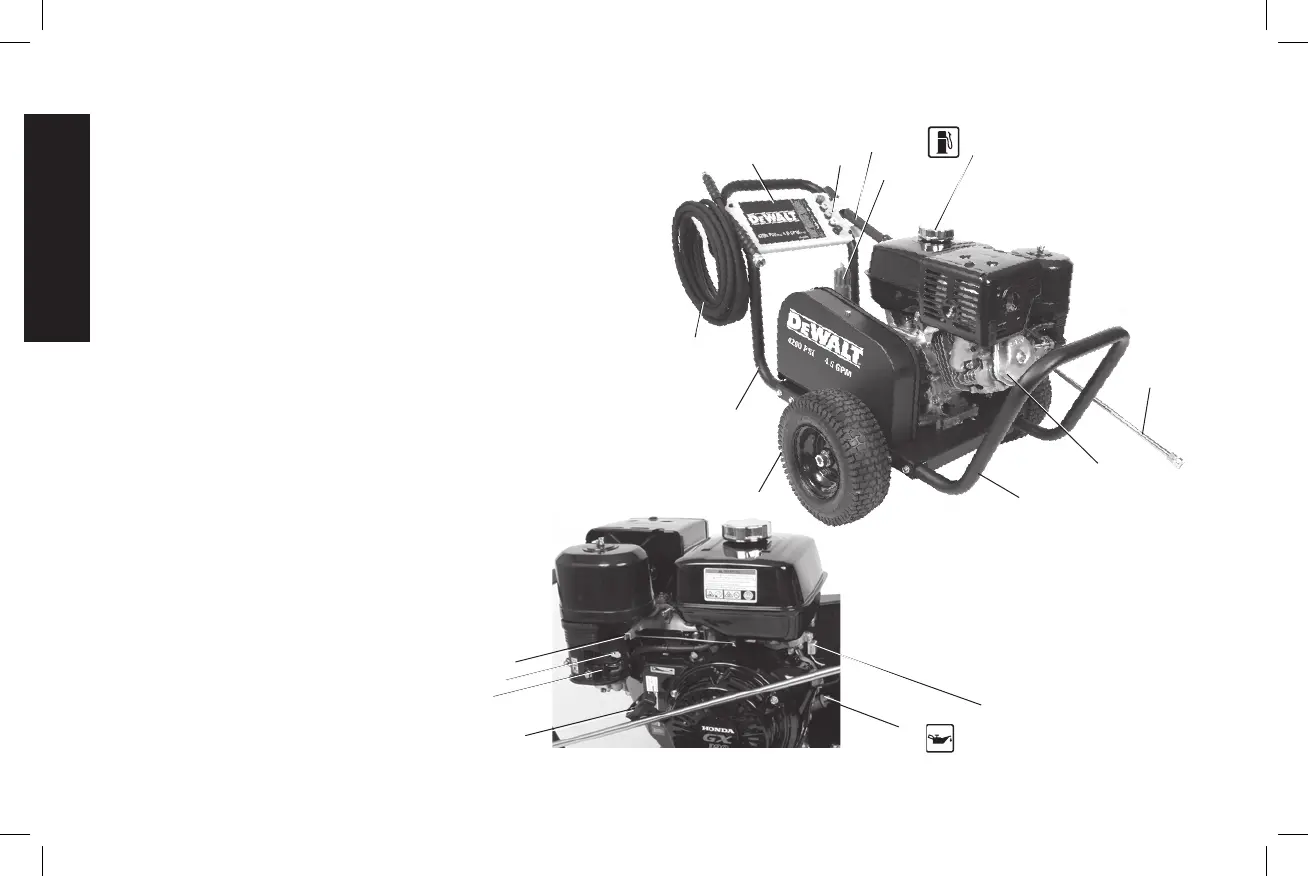

DH4240B PRESSURE WASHER
Engine
Refer to the engine instruction manual for location and
operation of other engine controls.
Pump Specications
GENERAL PUMP TX1510A
Oil Capacity: 14 Ounces
For best results, pump oil designed specifically for
pressure washers is recommended, as these contain
a rust inhibitor and an anti-foaming agent. If this oil is
not available, an SAE 30W non-detergent oil may be
used.
H
FIG. 1
J
C
E
P
A
B
Q
N
D
F
O
G
K
L
M
I
ENGINE
