A. Panel assembly
B. Nozzle Grommets
C. Professional Spray gun
D. Wheel
E. Quick-connect
spray wand
F. Frame
G. Engine dipstick/oil plug
H. Engine switch
I. Starter grip
J. Engine
K. Throttle control lever
L. Choke control
M. Fuel valve lever
N. Gas cap
O. Handle assembly
P. High-pressure hose
Q. High-pressure pump
R. Top handle
DPW3835 PRESSURE WASHER
Engine
Refer to the engine instruction manual for location and
operation of other engine controls.
Pump Specifications
General Pump
®
* TX1508 or TC1310
Oil Capacity: 14 Ounces (414 ml)/11.8 Ounces (350 ml)
For best results, pump oil designed specifically for
pressure washers is recommended, as these contain a
rust inhibitor and an anti-foaming agent. If this oil is not
available, an SAE 30W non-detergent oil may be used.
* GENERAL PUMP
®
is a registered trademark
of GENERAL PUMP, INC.

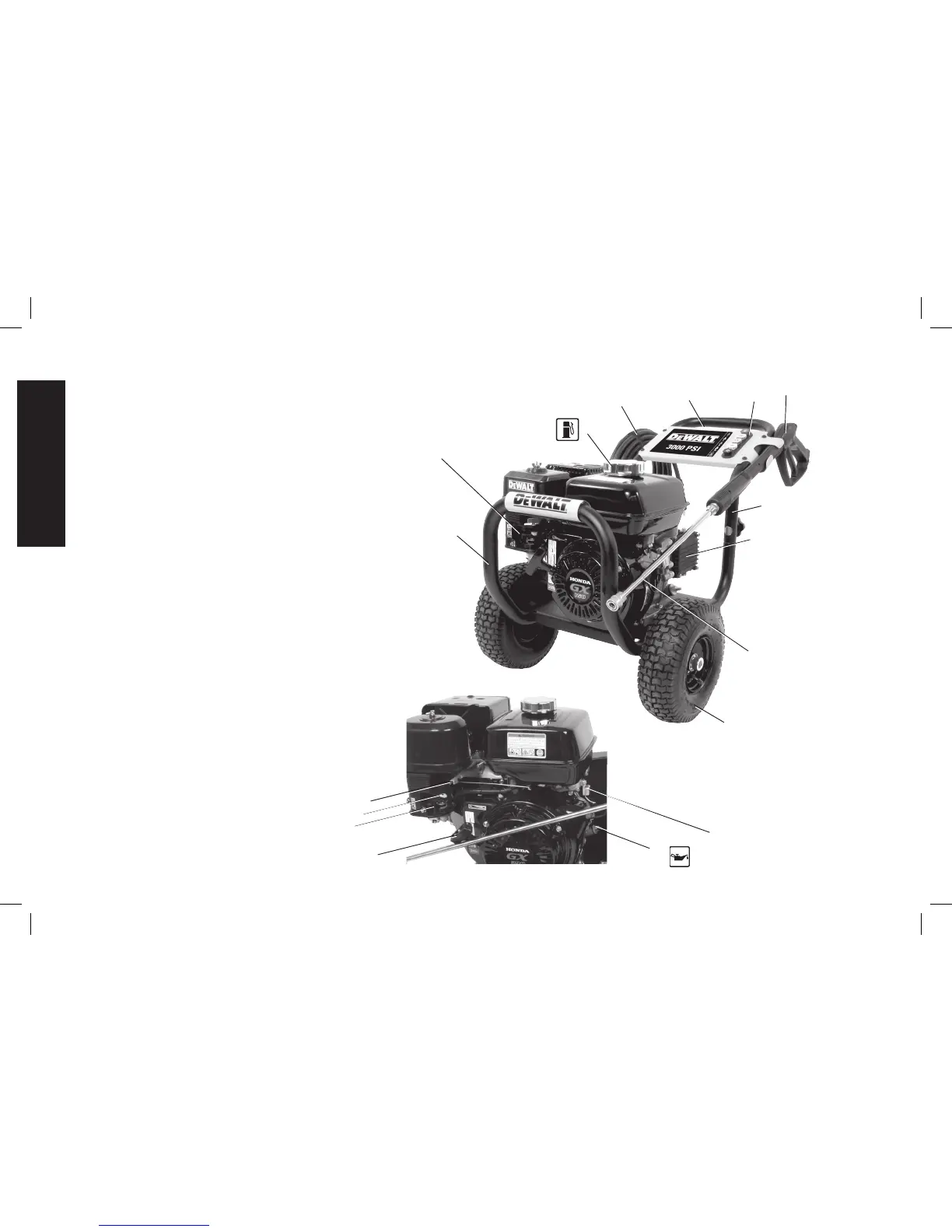

FIG. 1
j
C
E
R
a
B
q
H
N
D
F
O
G
K
L
M
I
P
