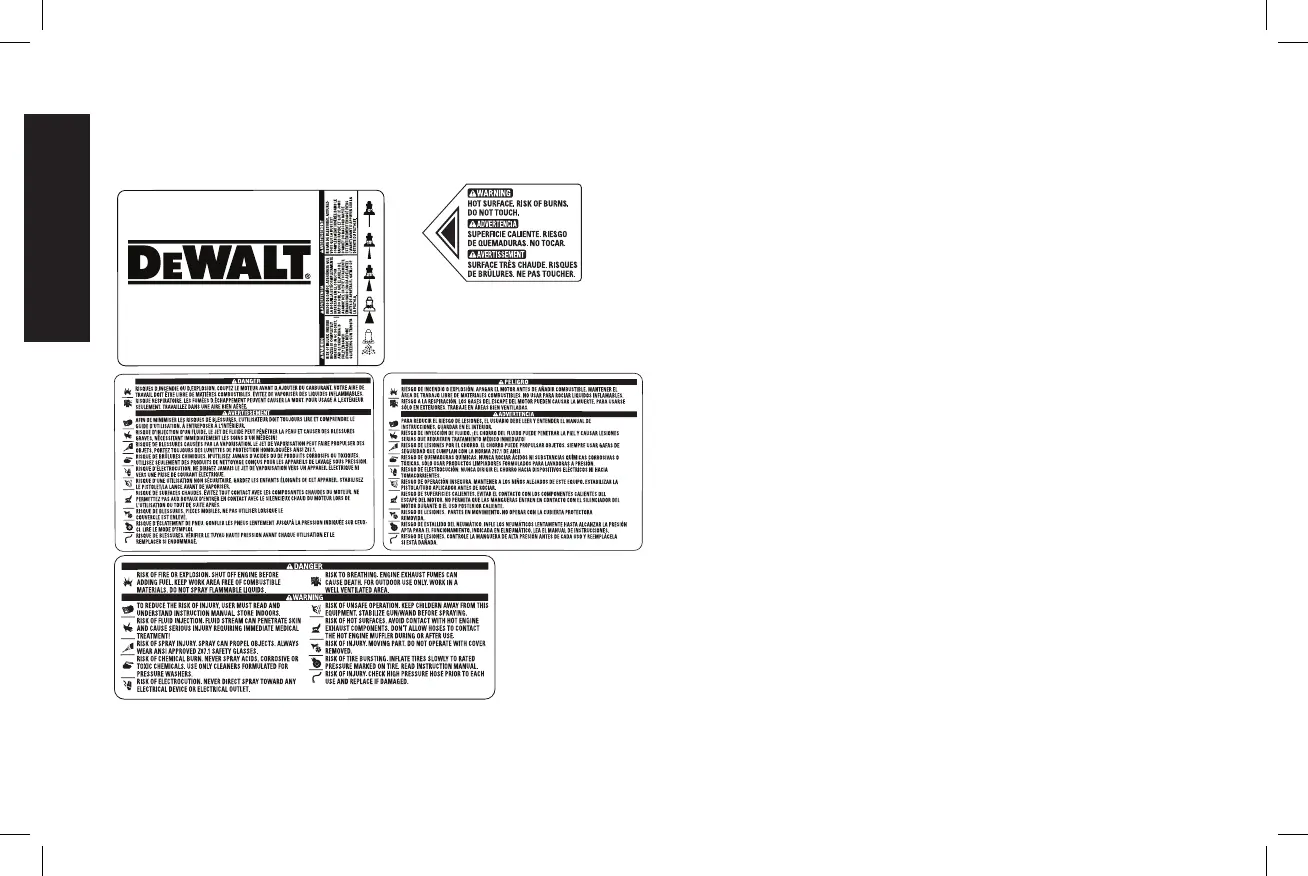

FREE WARNING LABEL REPLACEMENT: If your warning labels
become illegible or are missing, call 1-877-FNA-GAS1 (1-877-362-
4271) for a free replacement.
Glossary
Bypass mode: Allows water to re-circulate within pump when the
gun trigger is not pulled.
Chemical hose: Feeds cleaning agents into the pump to mix with
the water. Refer to Chemicals and Cleaning Solvents.
Chemical injection system: Mixes cleaners or cleaning solvents
with water to improve cleaning effectiveness.
Choke control: Opens and closes carburetor choke valve.
CU: Cleaning Units. GPM multiplied by psi. (GPM x PSI = CU)
Fuel valve lever: Opens/closes connection between fuel tank and
carburetor.
GPM: Gallons Per Minute. The unit of measure for the flow rate of
water.
PSI:PoundsperSquareInch.Theunitofmeasureforwaterpres-
sure. Also used for air pressure, hydraulic pressure, etc.
kPa (kilopascal): Metricpressuremeasurement.1kilopascalequal
1000 pascals.
Quick-connect spray wand: Allowstheusertoquicklychangeout
high-pressure nozzles. Refer to Spray Wand Nozzles.
Thermal relief valve: When the temperature inside the pump rises
too high the valve will open and release a gush of water in an effort
to lower the temperature inside the pump. The valve will then close.
Water supply: All pressure washers must have a source of water.
Theminimumrequirementsforawatersupplyare20psi(138kPa)
and 5 gallons per minute.
