6
English
Cleaning & Lubrication
Use only mild soap and damp cloth to clean the tool. Never let
any liquid get inside the tool; never immerse any part of the tool
into a liquid.
Self-lubricating bearings are used in the tool and periodic
relubrication is not required. If you need service or assistance in
locating any accessory, please contact:
D
EWALT Industrial Tool Company,
P.O. Box 158, 626 Hanover Pike,
Hampstead, MD 21074
or call 1-800-4-D
EWALT (1-800-433-9258).
Accessories
Recommended accessories for use with your tool are available at
extra cost from your distributor or authorized service center.
CAUTION: The use of any non-recommended accessory may
be hazardous.
Important
To assure product SAFETY and RELIABILITY, repairs,
maintenance and adjustment (including brush inspection and
replacement) should be performed by authorized service centers or
other qualified service organizations, always using identical
replacement parts.
Full Warranty
DEWALT heavy duty industrial tools are warranted for one year
from date of purchase. We will repair, without charge, any defects
due to faulty materials or workmanship. For warranty repair
information, call 1-800-4-D
EWALT. This warranty does not apply to
accessories or damage caused where repairs have been made or
attempted by others. This warranty gives you specific legal rights
and you may have other rights which vary in certain states or
provinces.
Setting the Adjustment Plate (Fig. 13)
1. Place blade edge (A) touching the inside edge of gauge plate (B).
2. Place adjusting plate (C) on blade with the heel flush against the
base (D).
3. Fit and tighten the two blade holder screws (E).

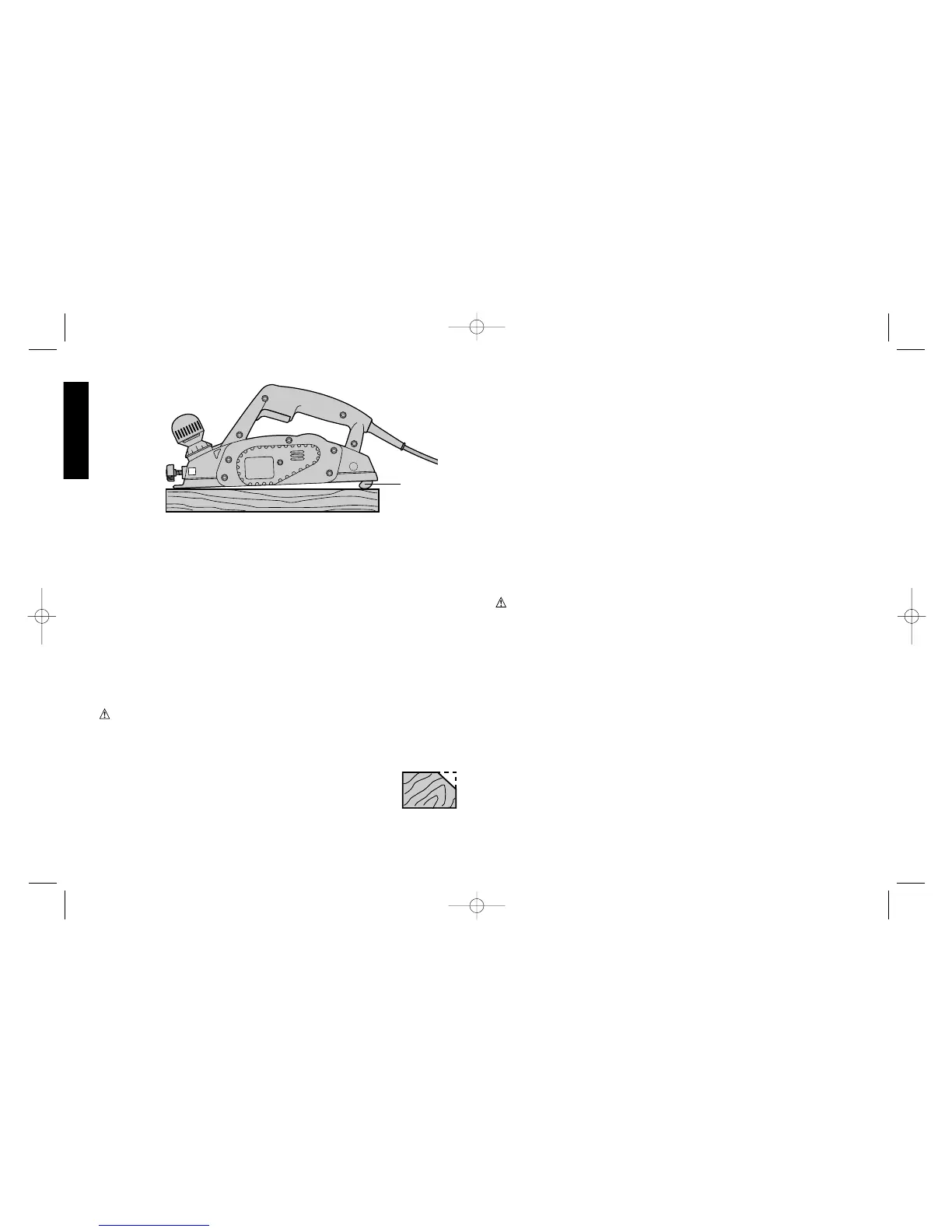

Parking Foot (Fig. 14)
Your planer is equipped with a parking foot (A) that automatically
falls down into place when the tool is lifted from the work surface.
When planing, the parking foot folds up, out of the way, as the tool
is pushed forward. When the parking foot is down, the tool can be
left standing on the work surface without the blade touching the
work.
CAUTION: Do not lock the trigger switch on and engage the
parking foot. The vibration of the running motor will cause the
planer to move, possibly falling from the work piece.
Edge Chamfering
Your planer has 3 precision machined grooves in the
front shoe for planing along a corner of the wood (Fig.
9). The width of the grooves are 1.5mm, 2mm, and
2.5mm. It’s a good idea to try a piece of scrap wood
before doing finish work.
FIG. 14
A
