DeWalt DWE46253 - Surface Finishing Shroud Installation; Mounting Diamond Cup Wheels

ENGLISH
8
The guard release lever should snap into one of the
alignment holes
26
on the guard collar. This ensures
that the guard issecure.
5. To remove the guard, follow steps 1–3 of these
instructions inreverse.
Fig. C
26
22
21
7

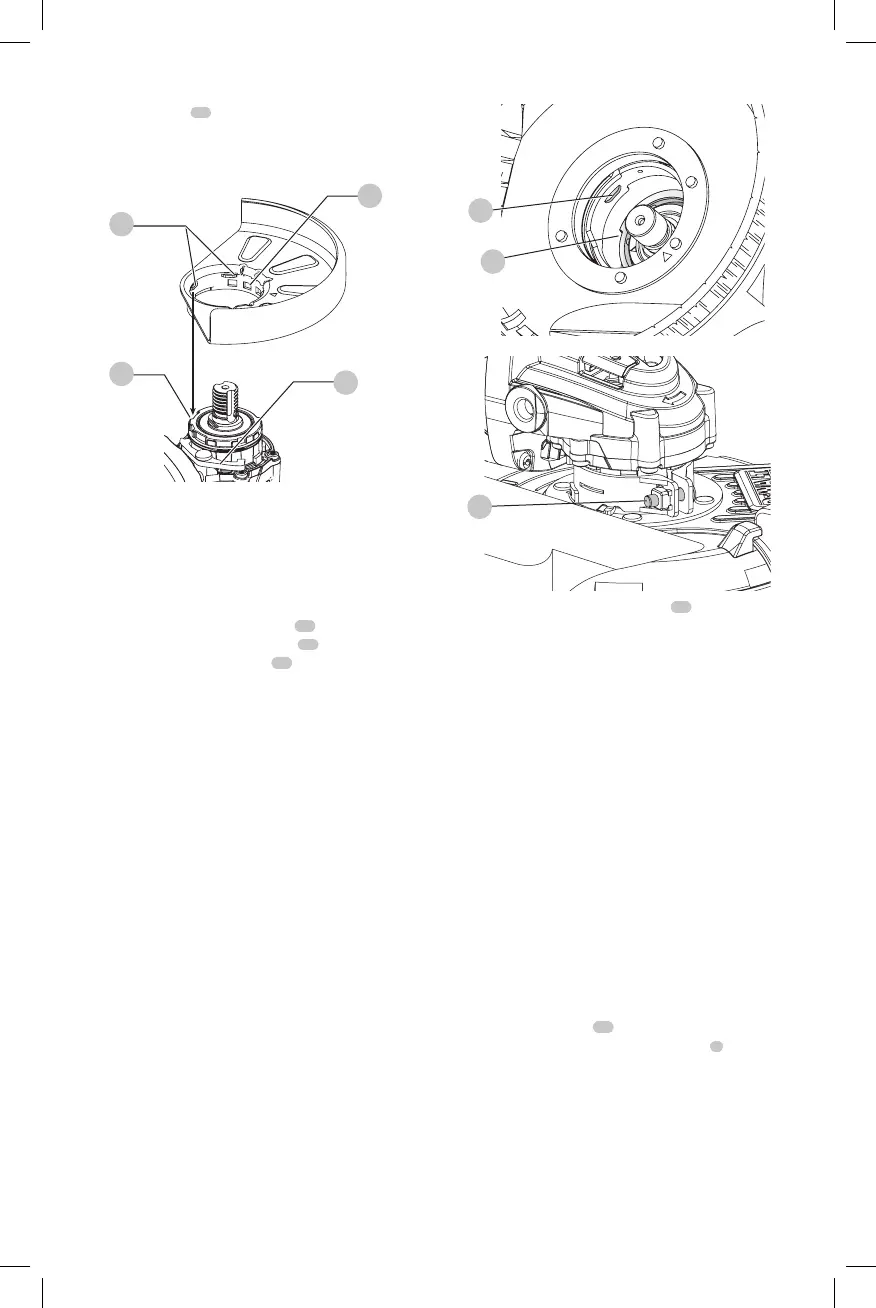

Mounting and Removing Surface
Finishing Shroud (Fig. D)

WARNING: When loosening the clamp screw, make
sure the screw remains attached to theshroud.
1. Follow the mounting and removing guard instructions
in tool manual to remove the guard fromgrinder.
2. Loosen the clamp adjusting screw
12
on the surface
finishing shroud and align the tabs
23
on the surface
finishing shroud with the slots
24
on the grinder
gearcase.
3. Rotate the shroud into the desired working position.
The surface finishing shroud should be positioned
between the spindle and the operator to provide
operatorprotection.
24
23
12
Fig. D
4. Tighten the clamp adjusting screw
12
to ensure shroud
is secured to gearcase.
For optimal positioning, the diamond wheel should
ride above the brushes 1/8" (3.18mm). If diamond
wheel rides inside the shroud or stands taller than 1/4"
(6.35mm) the shroud will not workproperly.
NOTICE: If surface finishing shroud cannot be
tightened by the clamp adjusting screw, do not use
the tool and take the tool and surface finishing shroud
to a service center to repair or replace the surface
finishingshroud.
5. To remove the surface finishing shroud, loosen the
clamp adjusting screw, rotate the surface finishing
shroud to align the slots and tabs and pull up on the
surface finishingshroud.
Mounting Dry Diamond Surface Cup
Wheels (Fig. E)
Follow the mounting and using cutting wheels instructions
in the tool manual and mount the grinding wheel. DO NOT
use Type 1 cutting wheels or bonded abrasivewheels.
Dry diamond surface cup
19
wheels are recommended for
use with this shroud. The inner flange washer
3
should be
installed behind the wheel allowing tool free removal and
properfit.
