Dust Extraction (Fig. F)

WARNING: Use only power tools recommended by
D
e
WALT with thissurface finishingshroud.
For more information about D
e
WALT power tools
compatible with this surface finishing shroud, please
contact your local dealer, call 1–800–4-D
e
WALT (1–800–
433–9258) or visit our website www.
DeWALT
.com.

WARNING: The surface finishing shroud must be used
with a dust extractor system. ALWAYS wear certified
safety face and appropriate dustmask.
NOTE: Ensure hose connection issecure.
NOTE: The amount of dust retained by the dust extractor
vacuum is dependent on its filter system. Refer to the dust
extractor vacuum instruction manual for moreinformation.
All D
e
WALT dust collection shrouds are designed to work
with the D
e
WALT universal DWV9000connector.
1. Attach the DWV9000 connector
18
to your
dustcollector hose
27
.
2. Unlock the DWV9000 connector
18
and slide onto
dustport
11
.
3. Lock the DWV9000 connector
18
tosecure.

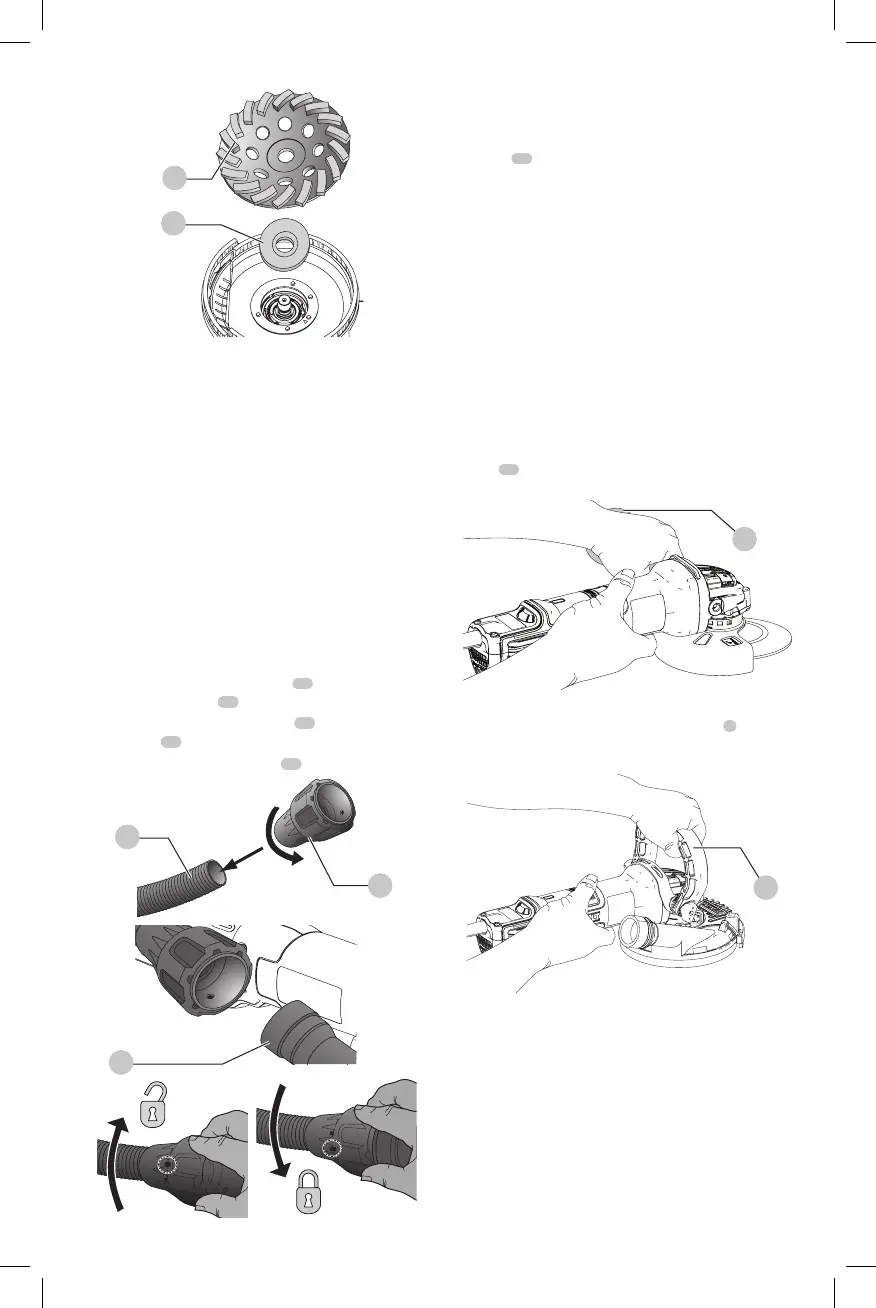

Fig. F
18
27
11
Traditional dust extractor vacuum
hoses
Attach recommended dust extractor vacuum hose to
dustport
11
.
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Proper Hand Position (Fig. G, H)

WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.

WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the side
handle
17
, with the other hand on the body of the tool, as
shown in FigureG.
Fig. G
17
For surface finishing of masony or stone, proper hand
position requires one hand on the bail handle
5
, with the
other hand on the body of the tool, as shown in FigureH.
Fig. H
5
Slider Switch (Fig. A)

CAUTION: Hold the side handle and body of the tool
firmly to maintain control of the tool at start up and
during use and until the wheel or accessory stops
rotating. Make sure the wheel has come to a complete
stop be fore laying the tooldown.
NOTE: To reduce unexpected tool movement, do not
switch the tool on or off while under load conditions. Allow
the grinder to run up to full speed before touching the work
surface. Lift the tool from the surface before turning the tool
off. Allow the tool to stop rotating before putting itdown.
