before each use as outlined in Guard Function. If the guarding
system is missing or not working properly, have the saw
serviced before using. To assure product safety and reliability,
repair, maintenance and adjustment should be performed by
an authorized service center or other qualifi ed service
organization, always using identical replacement parts.
WARNING: To avoid kickbacks, the following instructions MUST be
observed when plunge cutting:
1. Place the machine onto the track and release the anti-kickback
knob (U) by turning it counterclockwise.
2. Turn the machine on and slowly press the saw down onto the
set cutting depth and push forward in the cutting direction. The
cut indicators (T) display the absolute front and the absolute rear
cutting points of the saw blade [dia. 6-1/2" (165 mm)] at maximum
cutting depth and using the track.
3. If kickback happened during the plunge cut, turn the anti-kickback
knob (U) counterclockwise to release it from the track.
4. When you have fi nished the plunge cut, turn the anti-kickback
knob (U) clockwise into the lock position.
CROSSCUTTING
Cutting directly across the grain of a piece of lumber is called

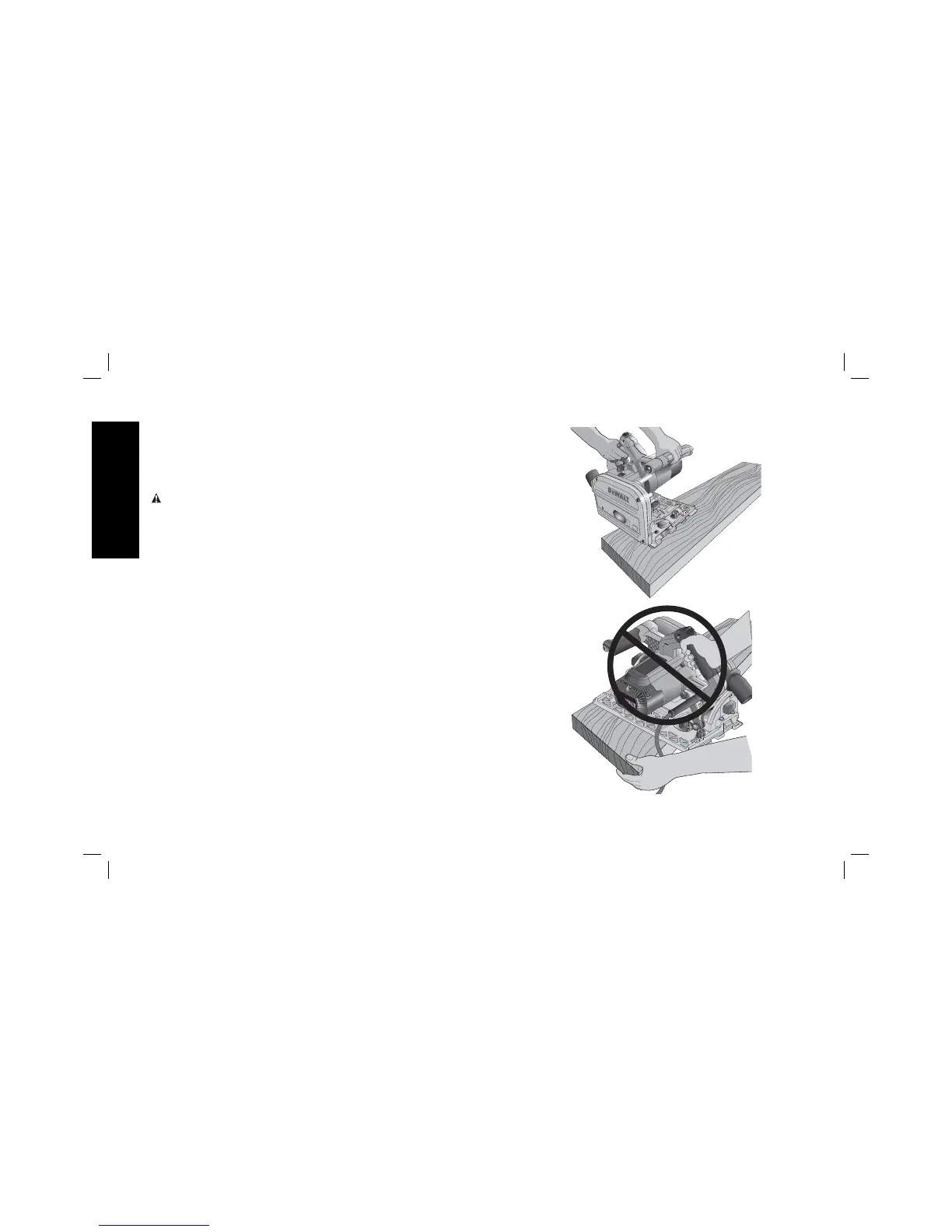

crosscutting. Figures 9 and 10 illustrate a crosscut operation. Position
the work so that the cut will be on the left.
