FIG. 4

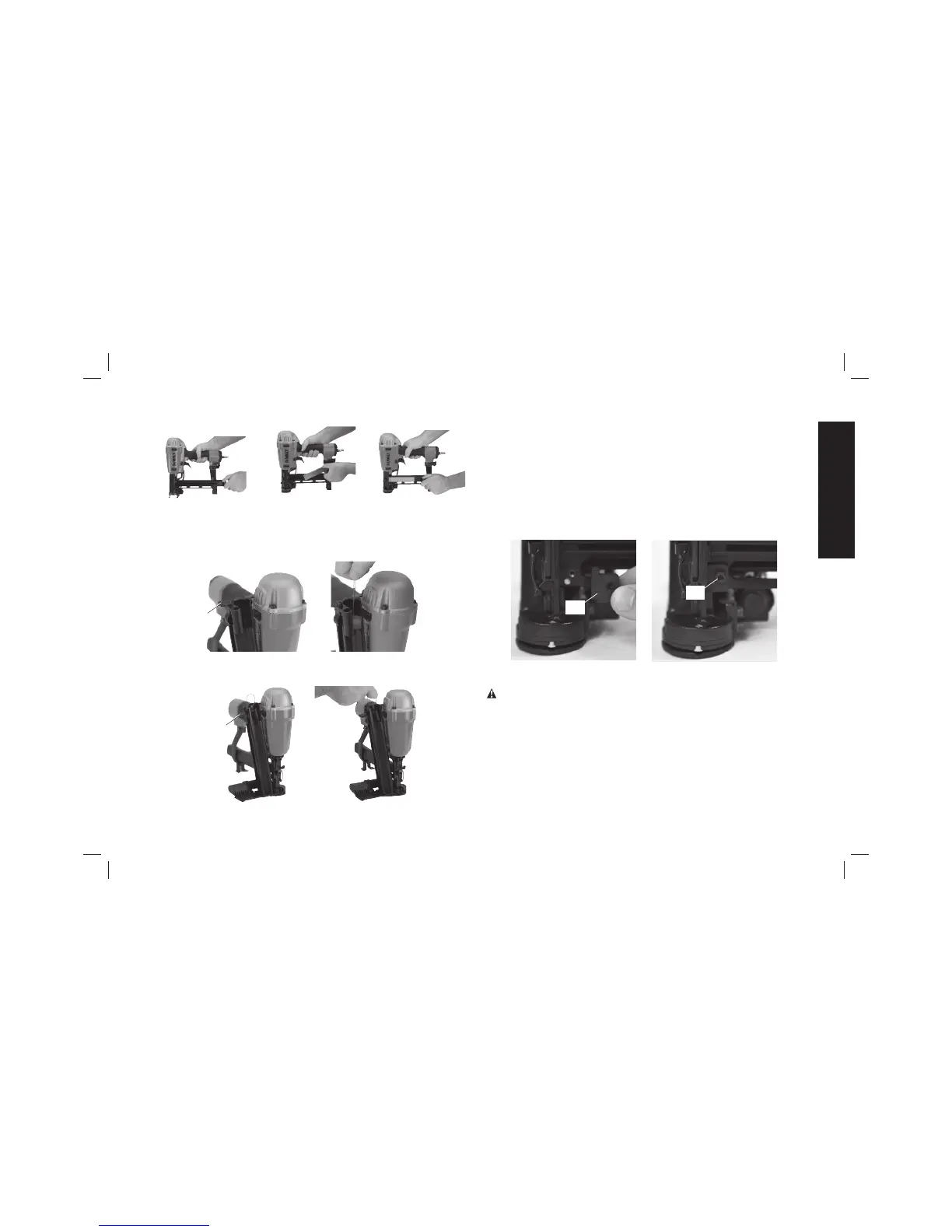

TO LOAD CAPS (FIG. 1, 5, 6)
1. Pull up on the cap pusher (M) and rotate it out of the magazine.
2. Load the caps (held together on a plastic pull string).
FIG. 5
M
3. Rotate the pusher back into the magazine.
4. Pull up and completely remove the plastic pull string.
FIG. 6
M
Installing The Short Staple Guide
(Optional) (Fig. 7)
NOTE: Only use the short staple guide (N) to drive staples from 1/2"
(12.7 mm) to 3/4" (19 mm) long.
1. Place the Short Staple Guide on the tool magazine.
2. Use the provided screw (O) to attach the Short Staple Guide to
the magazine.
FIG. 7
N
O
Depth Setting (Fig. 1)
WARNING: Disconnect air line from tool and remove fasteners
from magazine before making adjustments or personal injury may
result.
The fastener depth control adjustment feature provides control
of the fastener drive depth from flush with or just above the work
surface to shallow or deep countersink.
Rotate depth control adjustment wheel (K) to give the desired depth
of drive.
English
9
