2
English
Air Compressor
A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Pump Oil Fill Plug
J. Pump Oil Drain Plug
K. Check Valve
L. Quick Connect
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder, and aluminum head
Weight: 41 lbs. (18.6 kg.)
Oil Capacity: 16 oz. (473 mL)
Specifications
MODEL DXCMLA1983054
WEIGHT
190 lbs. (87 kg)
HEIGHT
49.3”
WIDTH
25.05”
AIR TANK CAPACITY
30 gallons (113,6 liters)
APPROX. BLOW OFF PRESSURE
175 psi

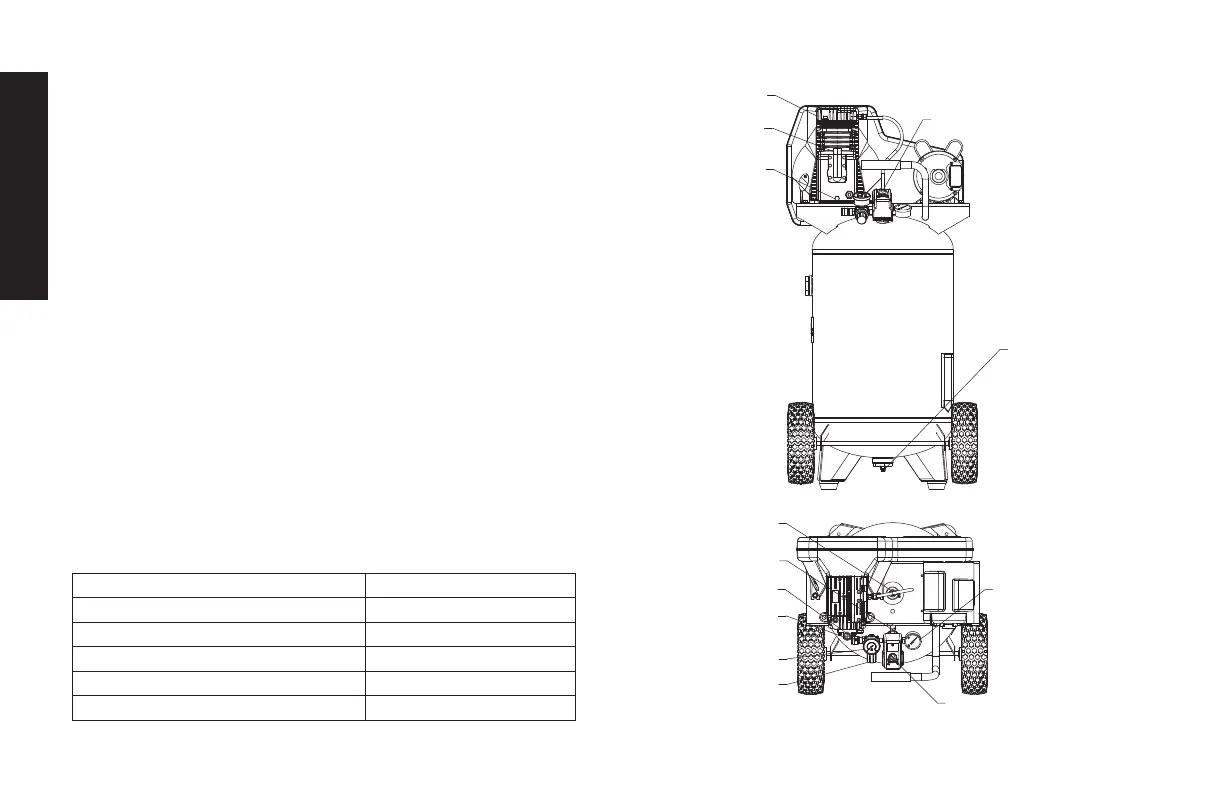

FIG. 1
E
B
K
G
D
F
CL
J
B
A
I
H
