DeWalt XR DCB115 User Manual

5
ENGLISH
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other
than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
Package Contents
The package contains:
1 Battery charger
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Charger
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Visible radiation. Do not stare intolight.
Date Code Position (Fig.A)
The date code
1
, which also includes the year of manufacture,
is printed into the underside of thehousing.
Example:
2020 XX XX
Year of Manufacture
Intended Use
The DCB115 charger is designed for charging 10.8V, 12V, 18V
Li-Ion XR battery packs (DCB122, DCB124, DCB125, DCB127,
DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B,
DCB185, DCB187, DCB189, DCB546, DCB547, DCB548).
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These battery chargers and battery packs are professionaltools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from power
source before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
Wall Mounting
This charger is designed to be wall mountable or to sit upright
on a table or work surface. If wall mounting, locate the charger
within reach of an electrical outlet, and away from a corner
or other obstructions which may impede air flow. Mount the
charger securely using screws (purchased separately) at least
76mm long, with a screw head diameter of 8–9.5mm, screwed
into wood through the mounting holes.
OPERATION
DeWALT chargers require no adjustment and are designed to be
as easy as possible tooperate.
Charging a Battery (Fig. A)
Plug the charger into an appropriate outlet before inserting
batterypack.
1. Insert the battery pack into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
2. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button on the batterypack.
NOTE: To ensure maximum performance and life of lithium-ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.

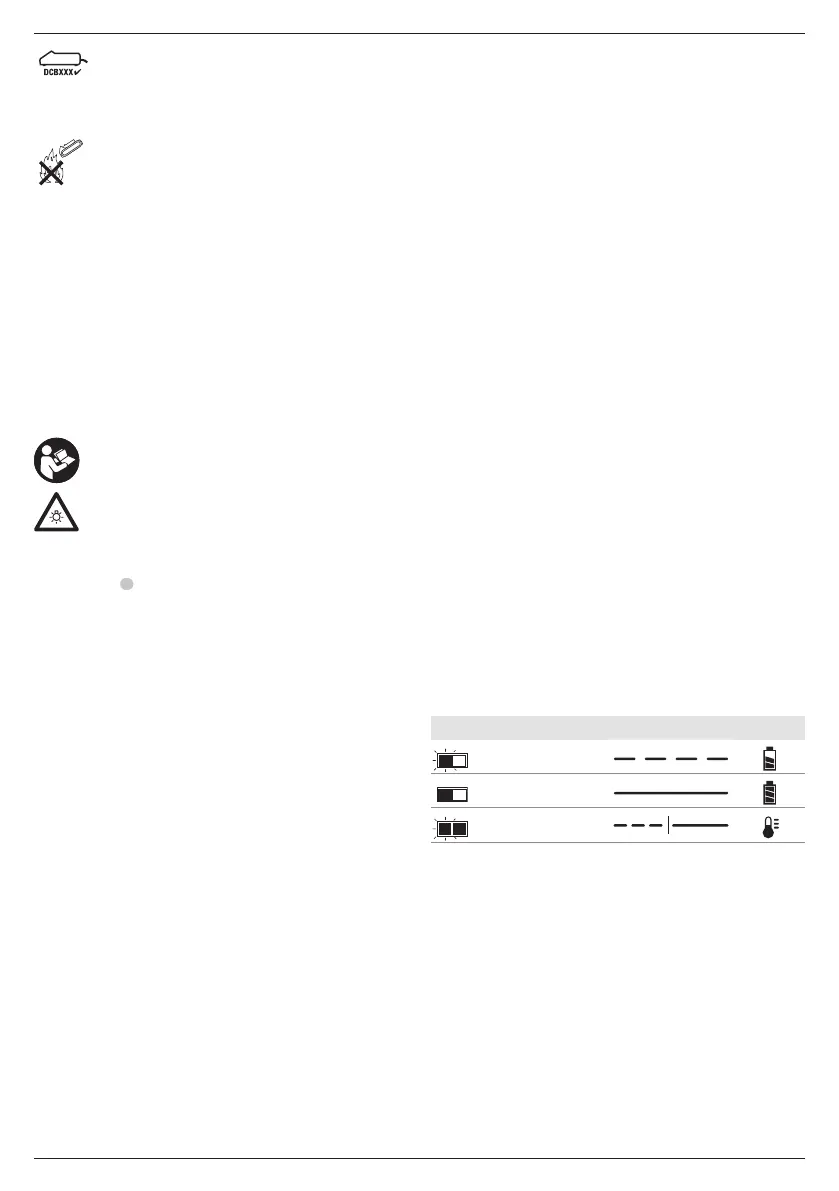

Charge Indicators
Charging
Fully Charged
Hot/Cold Pack Delay*
* The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the

DeWalt XR DCB115 Specifications

General

Input Voltage	120V AC
Output Voltage	20V DC
Charging Current	4.0A
Battery Chemistry	Lithium-Ion
Charging Time 2.0Ah	30 minutes
Charging Time 4.0Ah	60 minutes
Charging Time 5.0Ah	75 minutes
Charging Ports	1
LED Indicators	Yes
Overcharge Protection	Yes
Compatible Battery Series	20V MAX
