WARNING: Drill may stall if overloaded causing a sudden twist.
Always expect the stall. Grip the drill firmly to control the twisting action
and avoid injury.
5. IF DRILL STALLS, it is usually because it is being overloaded
or improperly used. RELEASE TRIGGER IMMEDIATELY,
remove drill bit from work, and determine cause of stalling. DO
NOT DEPRESS TRIGGER ON AND OFF IN AN ATTEMPT
TO START A STALLED DRILL — THIS CAN DAMAGE THE
DRILL.
6. To minimize stalling or breaking through the material, reduce
pressure on drill and ease the bit through the last fractional part of
the hole.
7
. Keep the motor running when pulling the bit back out of a drilled
hole. This will help prevent jamming.
Screwdriving (Fig. 10)
1. Select the desired speed/torque range using the gear shifter to
match the speed and torque to the planned operation.
2. Turn the torque adjustment collar (C) to the desired position.
NOTE: Use the lowest torque setting required to seat the fastener
at the desired depth. The lower the number, the lower the torque
output.
3. Insert the desired fastener accessory into the chuck as you would
any drill bit.
4. Make some practice runs in scrap or on unseen areas of the
workpiece to determine the proper position of the torque
adjustment collar.
5. Always start with lower torque settings, then advance to higher
torque settings to avoid damage to the workpiece or fastener.

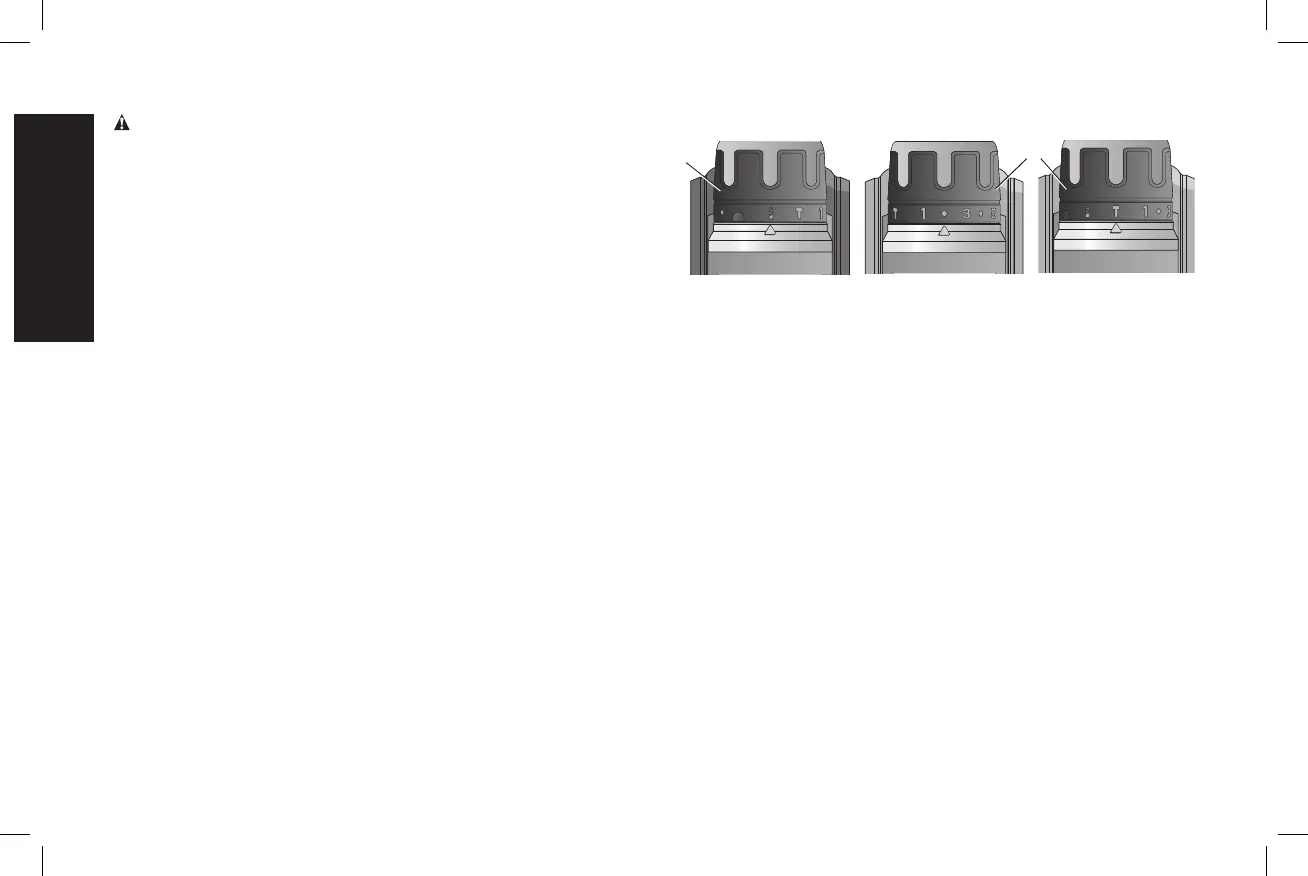

FIG. 9
HAMMERDRILLING
FIG. 11
SCREWDRIVING
FIG. 10
DRILLING
C
C
Hammerdrilling (Fig. 11)
1. Select the desired speed/torque range using the gear shifter to
match the speed and torque to the planned operation. Turn the
collar (C) to the hammerdrill symbol.
IMPORTANT: Use carbide-tipped or masonry bits rated for
percussion drilling only.
2. Drill with just enough force on the hammer to keep it from bouncing
excessively or "rising" off the bit. Too much force will cause slower
drilling speeds, overheating, and a lower drilling rate.
3. Drill straight, keeping the bit at a right angle to the work. Do not
exert side pressure on the bit when drillling as this will cause
clogging of the bit flutes and a slower drilling speed.
4. When drilling deep holes, if the hammer speed starts to drop off,
pull the bit partially out of the hole with tool still running to help
clear debris from the hole.
NOTE: A smooth, even flow of dust from the hole indicates proper
drilling rate.
