c. Mode selector
d. Worklight
e. Side handle
f. Battery pack
g. Release button
h. Main handle
i. Drill bit symbol (rotary drilling mode)
j. Hammerdrilling symbol (rotary hammering
mode)
k. Hammer symbol (hammering only mode)
l. SDS Plus
®
tool holder
m. Sleeve
n. Fuel gauge button
o. Dust cover
p Locking collar
q. Keyless chuck (DCH274)
r. Belt hook
s. Active vibration control
t. Dust extraction system electrical connection
u. Mode selector button
INTENDED USE
Your DCH273 and DCH274 cordless rotary
hammerdrills have been designed for professional
drilling and hammerdrilling applications, as well as
screwdriving and chippingapplications.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
These hammerdrills are professional powertools.
DO NOT let children come into contact with the
tool. Supervision is required when inexperienced
operators use thistool.
• This product is not intended for use by persons
(including children) suffering from diminished
physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are
supervised by a person responsible for their
safety. Children should never be left alone with
thisproduct.
Electrical Safety
The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of yourmains.

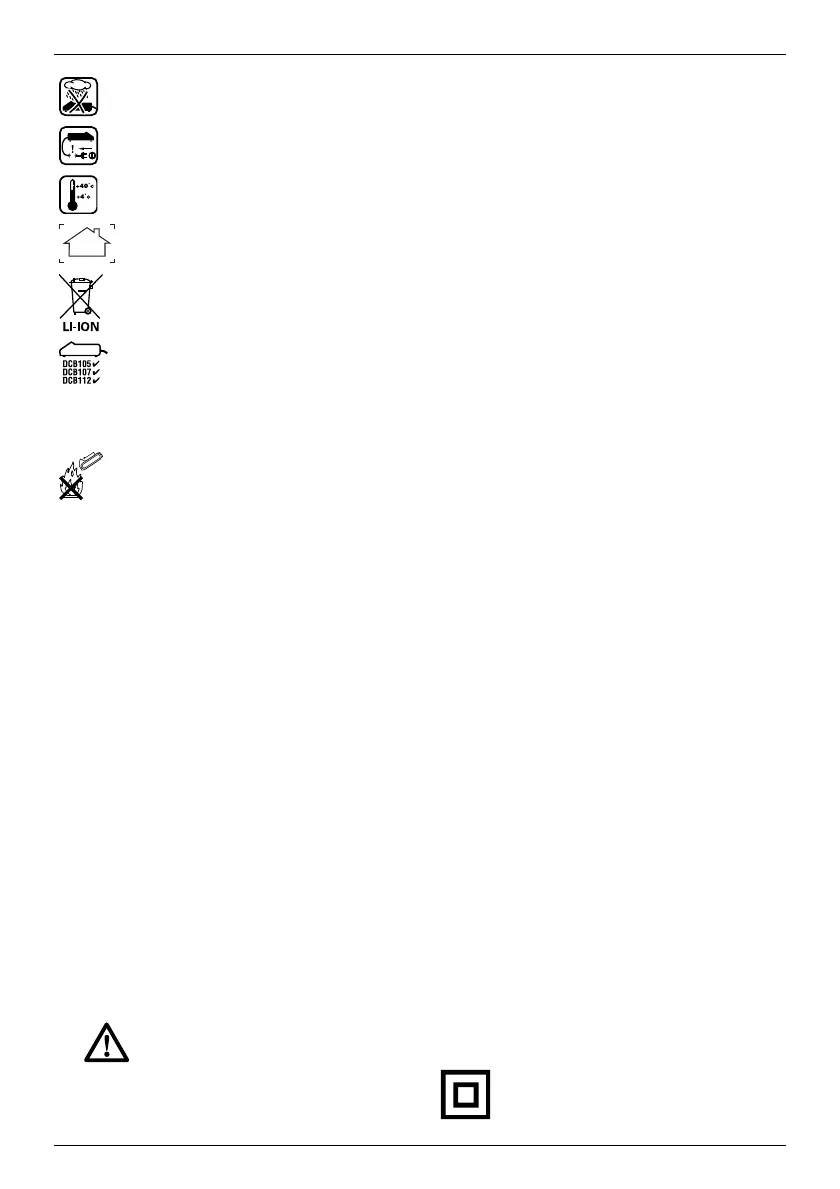

Your DeWALT charger is double insulated
in accordance with IEC 60335; therefore
no earth wire isrequired.
Do not expose to water.
Have defective cords replaced
immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.
Discard the battery pack with due care
for the environment.
Charge DeWALT battery packs only with
designated DeWALT chargers. Charging
battery packs other than the designated
DeWALT batteries with a DeWALT
charger may make them burst or lead to
other dangerous situations.
Do not incinerate the battery pack.
Package Contents
The package contains:
1 Cordless rotary hammerdrill
1 Side handle and depth rod
1 Charger
1 Battery pack (not included with "N" models)
Battery packs (not included with "N" models)
1 Keyless chuck (DCH274)
1 Kit box
1 Instruction manual
1 Warranty card
1 Service list
NOTE: Battery packs and chargers are not included
with N-models.
• Check for damage to the tool, parts or
accessories which may have occurred
duringtransport.
• Take the time to thoroughly read and
understand this manual prior tooperation.
Description (fig.1, 3, 7)
WARNING: Never modify the power
tool or any part of it. Damage or
personal injury couldresult.
a. Variable speed switch
b. Forward/reverse button
