DEWEZE 470 - Page 11

2500
0
FLOW

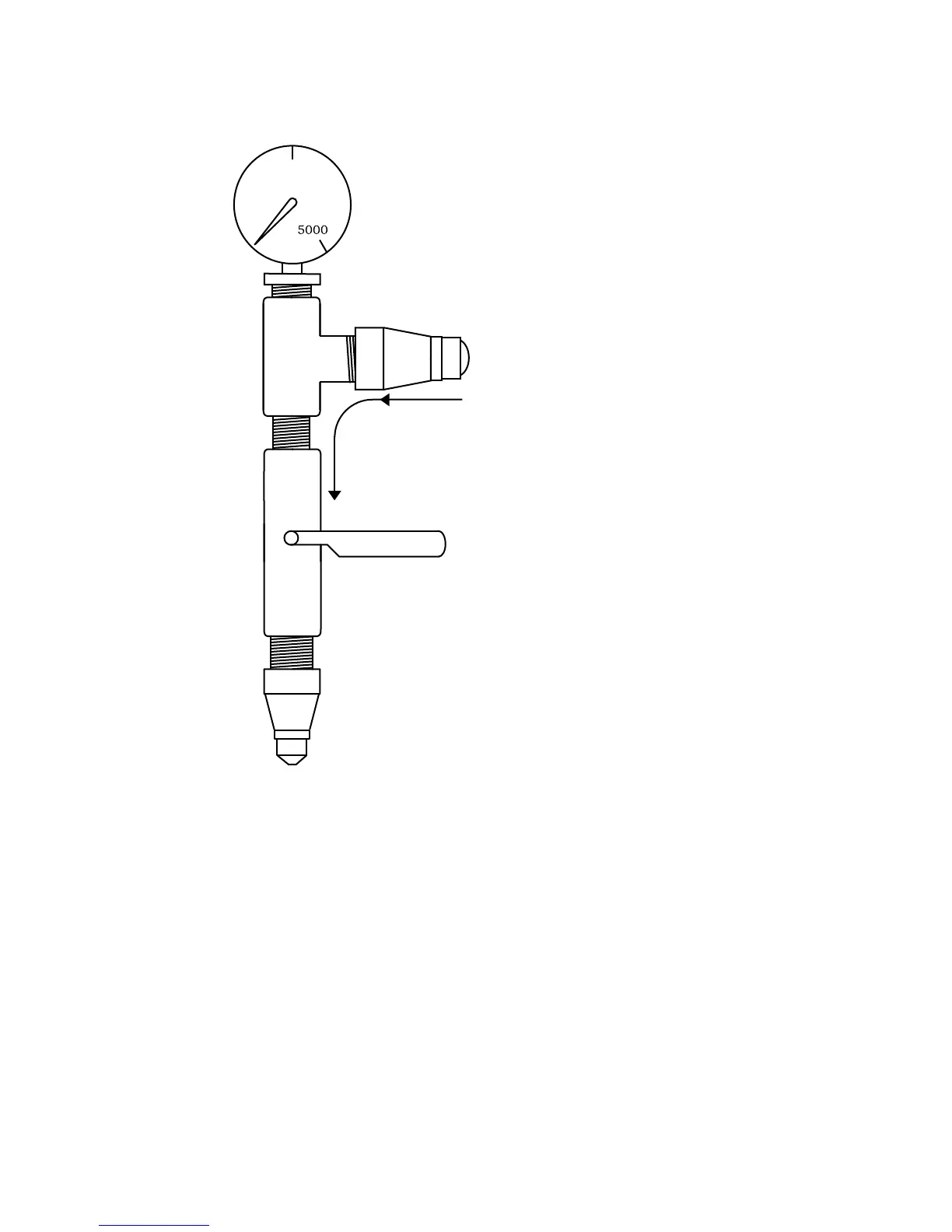

Stroke the IN-OUT switch so the flow is as shown, Gradually
close the ball valve and the needle will go to where the pressure
relief is set. Adjust the pressure relief on the valve until the gauge
reads 2500 PSI when the ball valve is closed .
Ball Valve in closed position
HYDRAULIC SYSTEM
PRESSURE TEST
