10
7.)

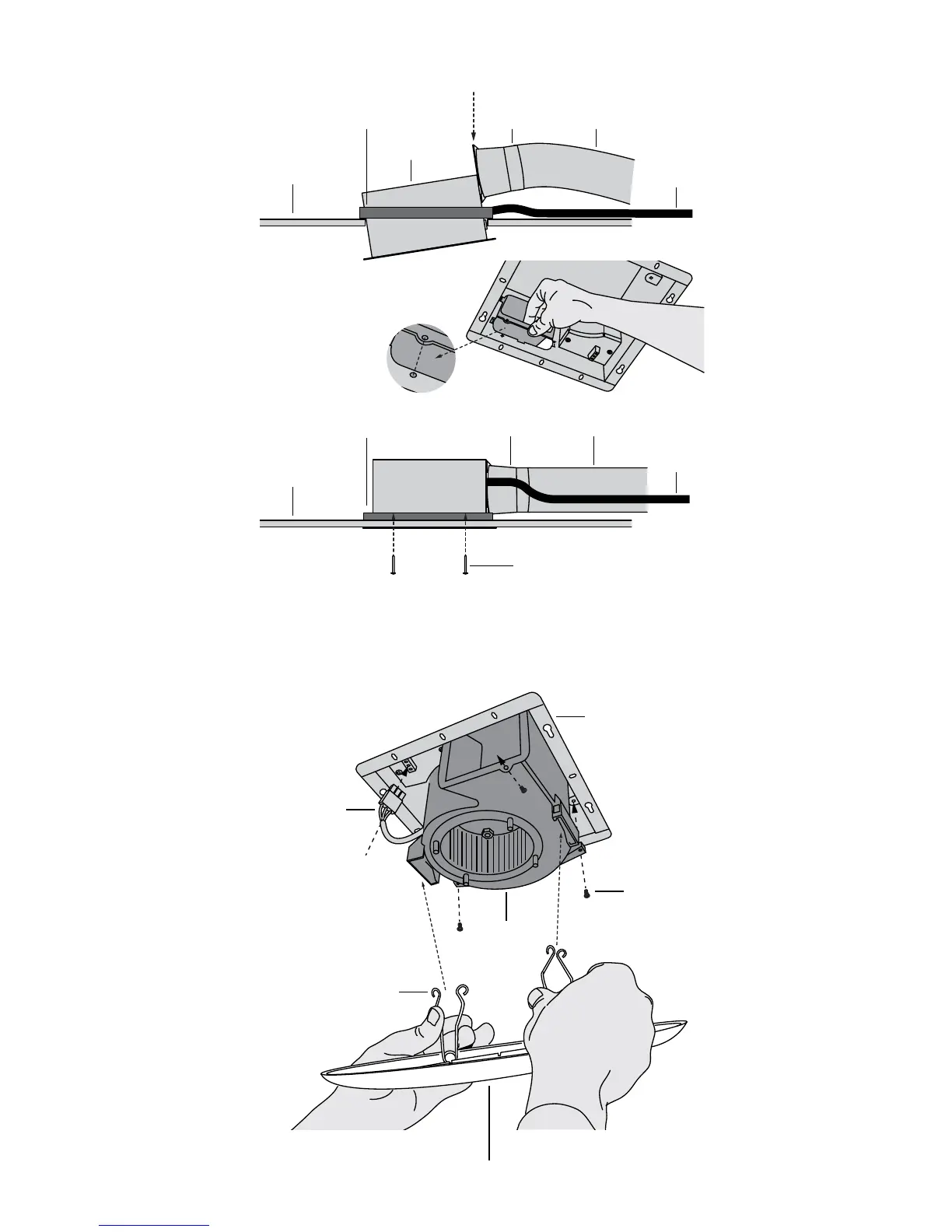

To reinstall the fan MOTOR, secure in place using the 3 MOTOR screws you
removed in step #3. Plug MOTOR into electrical. Then attach the GRILLE by
squeezing the mounting springs together and inserting the springs into the slots in
the MOTOR.
MOTOR
HOUSING
electrical plug
screws
mounting springs
GRILLE
ceiling
flex ducting
conduit
SUPPORT STRIPS
ROUNDHEAD
WOOD SCREWS
Qty:4
ceiling
DAMPER
flex ducting
conduit
HOUSING
SUPPORT STRIPS
Reattaching DAMPER:
Align notch to upper tab,
match screw holes.
reach hand in through the hole in
the HOUSING to access DAMPER
DAMPER
To Next Page
