DewStop Breeze Easy - Roomside Fan Installation; Ceiling Opening Preparation; Damper and Duct Attachment; Motor Removal from Housing

8

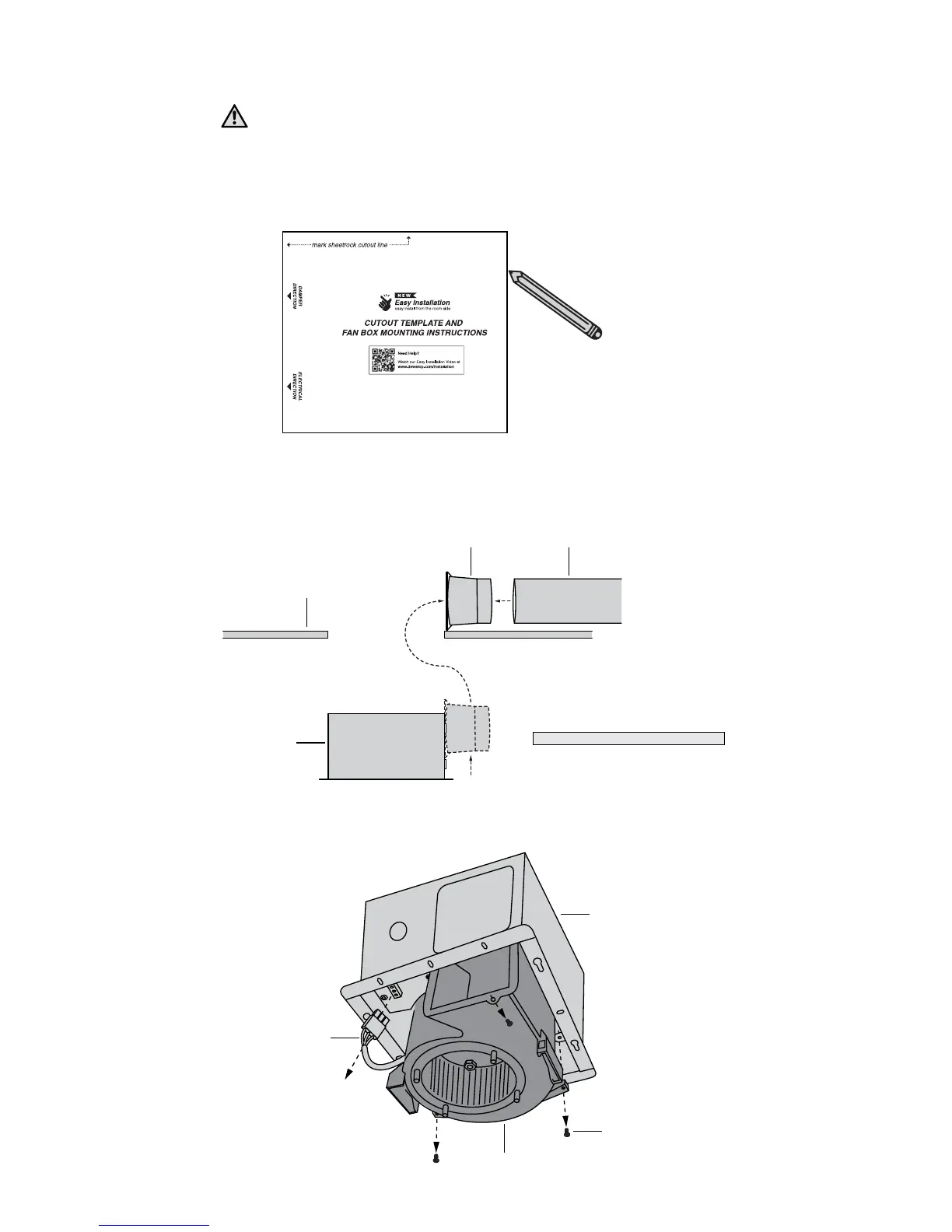

1.) Place provided sheetrock cutout TEMPLATE on ceiling where you wish the fan
to be (DAMPER and electrical positions shown on TEMPLATE). Mark around the
edge of the TEMPLATE. Remove TEMPLATE, then cut access opening along the
line.
Roomside Fan Installation
WARNING: Disconnect all AC Power Breakers or Fuses before attempting
to cut into your ceiling.
2.) Remove DAMPER from HOUSING. Attach DAMPER to 10.2 cm (4 in) ducting.
Use a length of flex ducting, 61 cm (2 ft) maximum. Hide DAMPER and ducting in
ceiling, placing DAMPER next to where it will later be reattached to the HOUSING.
ceiling
DAMPER
HOUSING
flex ducting
3.) Disconnect electrical plug from HOUSING. Remove 3 MOTOR screws. Lift
MOTOR out of metal HOUSING, then set MOTOR aside for later.
MOTOR
HOUSING
electrical plug
screws
Attach DAMPER to flex
ducting with the included
DUCT TAPE STRIP.
Mark around edge of
TEMPLATE with pencil.
DUCT TAPE STRIP
