Dexton 16/70 - INSTALLATION DIAGRAM

3

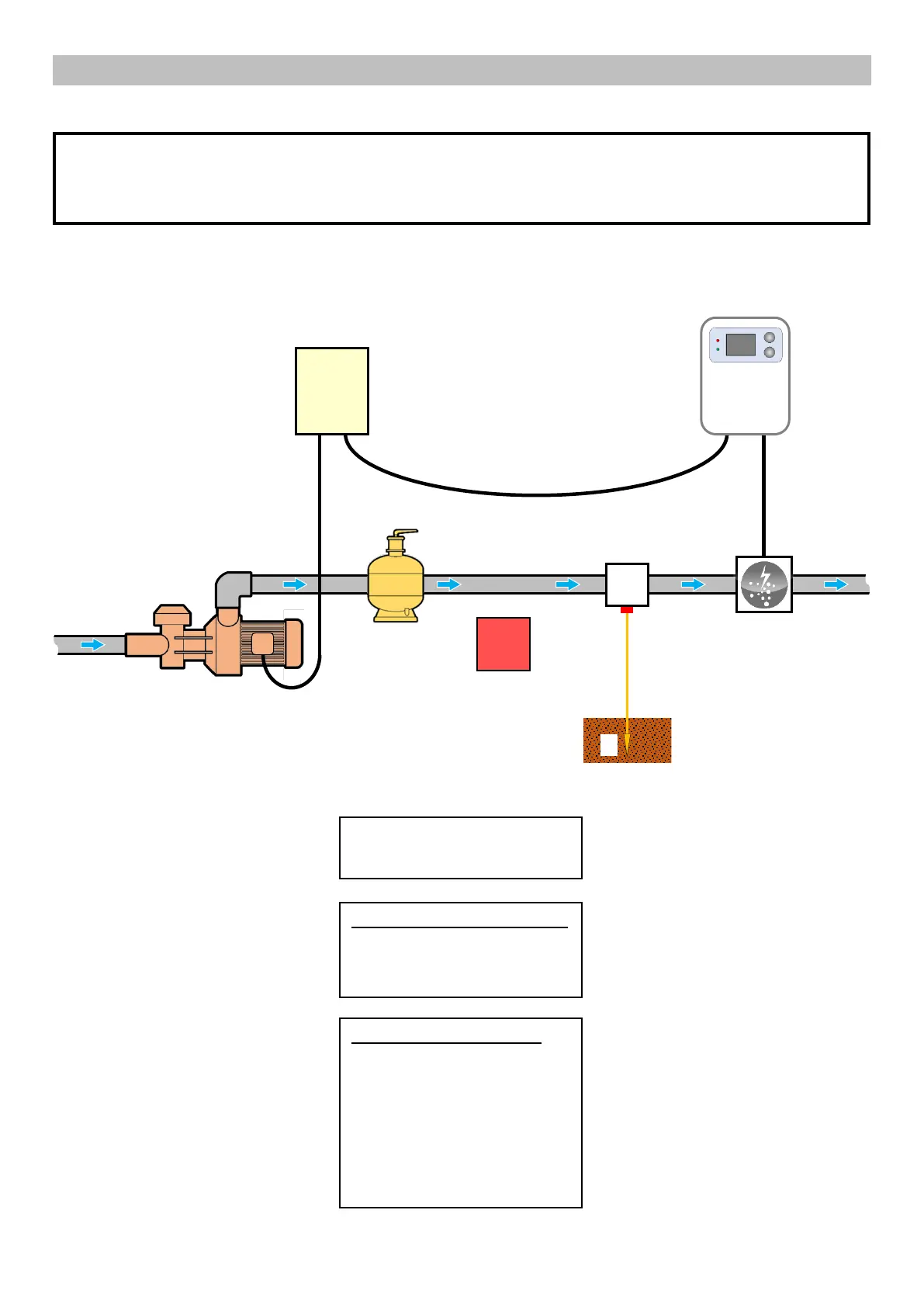

1. INSTALLATION DIAGRAM
3
SSS
1 : Cell
2 : Electronics unit
H
8
I
The electrical connections at cell-level must not point upwards, to avoid any deposits of water or humidity on them.
ELEMENTS NOT SUPPLIED :
5 : Electrical power supply
6 : Copper cable
7 : Filter
8 : Ground rod
9 : Heat pump
10 : Filtration pump
 
POOL GROUND KIT (optional) :
3 : Electrode
4 : Bracket
5
2
6
7
9
10
4
1
4
