Figure 5-1
b)

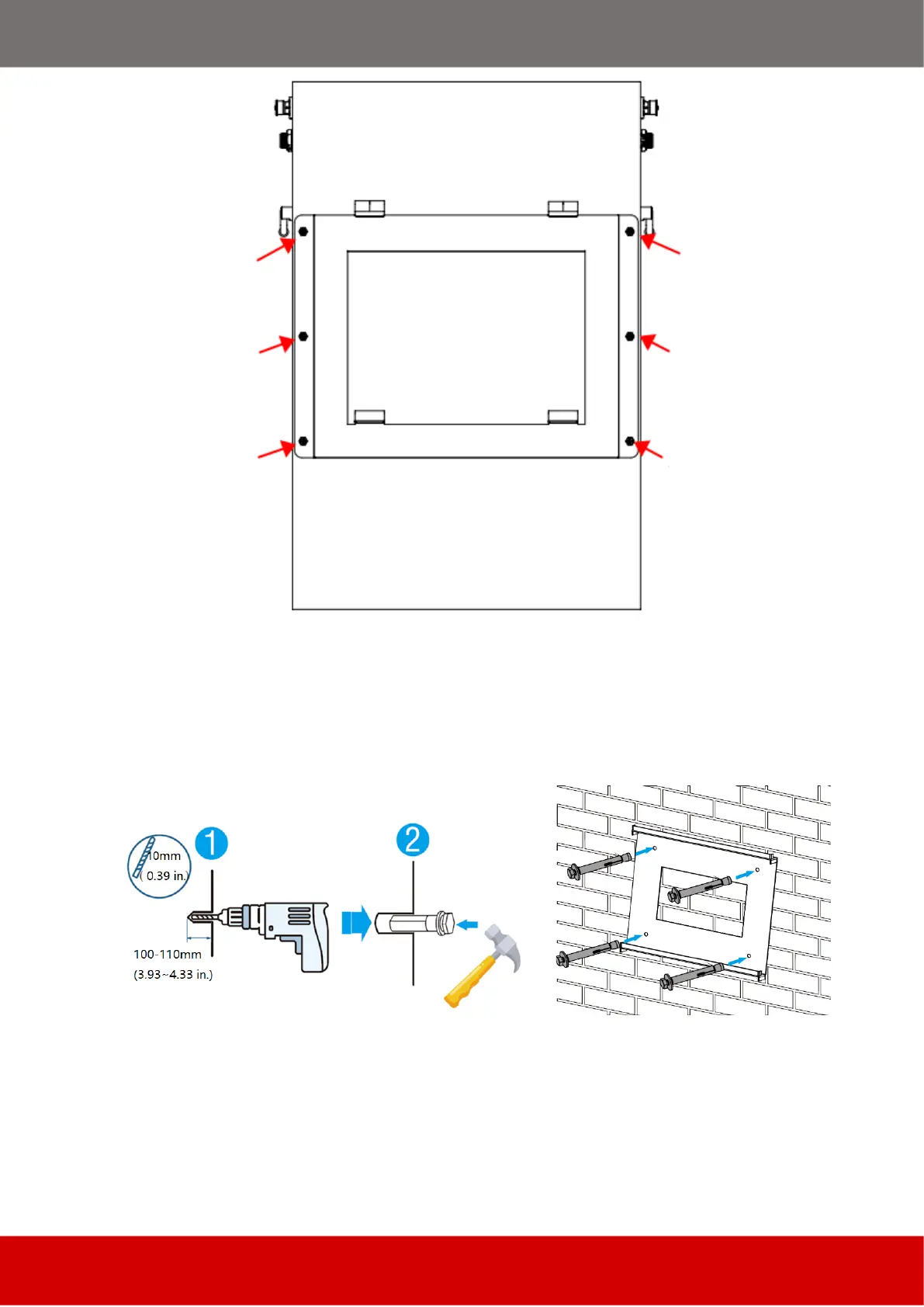

Choose the recommend drill head (as shown in Figure 5-2) to drill 4 holes on the
wall,100mm-110mm deep.
c)
Use a proper hammer to fixing the hanging plate to the wall, fit the expansion bolt into
the holes, as shown in Figure 5-2.
Figure 5-2
d)
Fasten the screw head of the expansion bolt to finish the mounting.
e)
Carry the battery and holding it, Fix the battery on the plate after fixing the hanging plate
to the wall. Ensure that the upper and lower positions of the battery backplane hook are ac-
curately buckled on the hanging plate, as shown in Figure 5-3.
