DFI AM75-EC - Page 15

15

Quick Setup Guide
Quick Setup
Guide

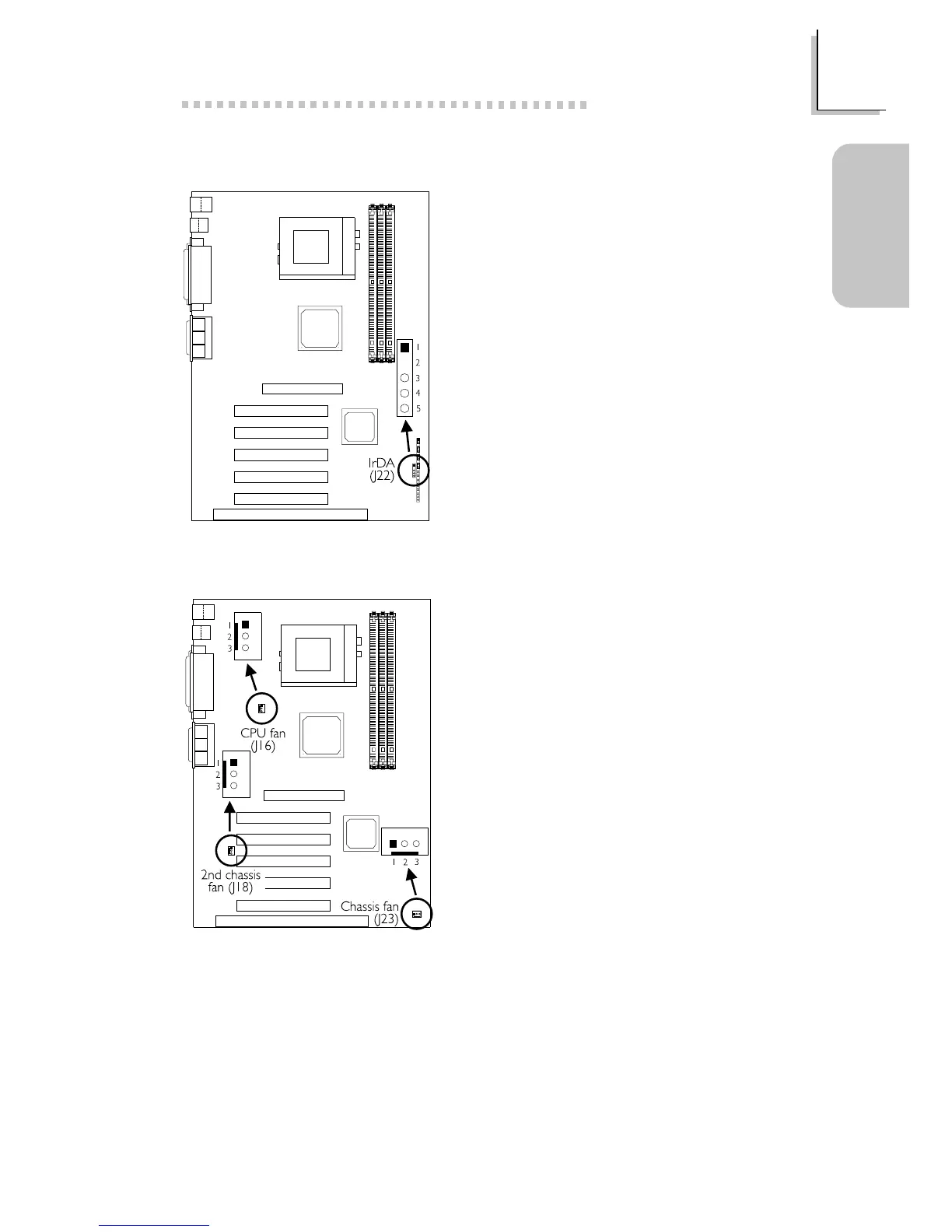

1.3.10 Fan Connectors
1On
2 +12V
3 Sense
1 On/Off
2 +12V
3 Sense
1 Ground
2 +12V
3N. C.
CPU Fan
Chassis Fan
Second Chassis Fan
1.3.9 IrDA Connector
1 VCC
2 N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on
some IrDA cable may be reversed
from the pin function defined on the
system board. Make sure to connect
the cable to the IrDA connector
according to their pin functions.
