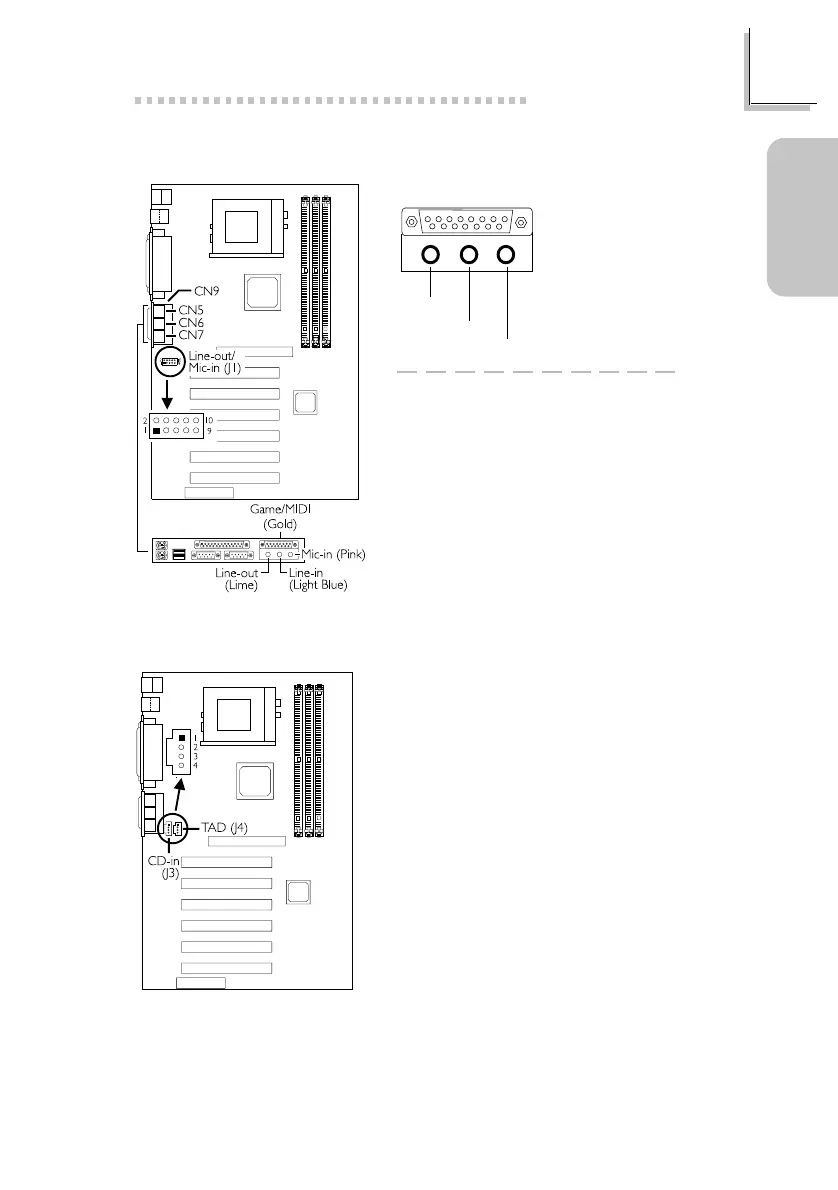

1.3.6 Game/MIDI Port and Audio Jacks
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
1.3.7 Internal Audio Connectors
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
1 Modem-out (from modem)
2 Ground
3 Ground
4 Modem-in (to modem)
CD-in
TAD
1Mic+
2 Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6 AuD_R_Return (GND)
7N. C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
Additional Line-out/Mic-in (J1)
Onboard Game/MIDI / Audio
