14
Quick Setup Guide
Quick Setup
Guide

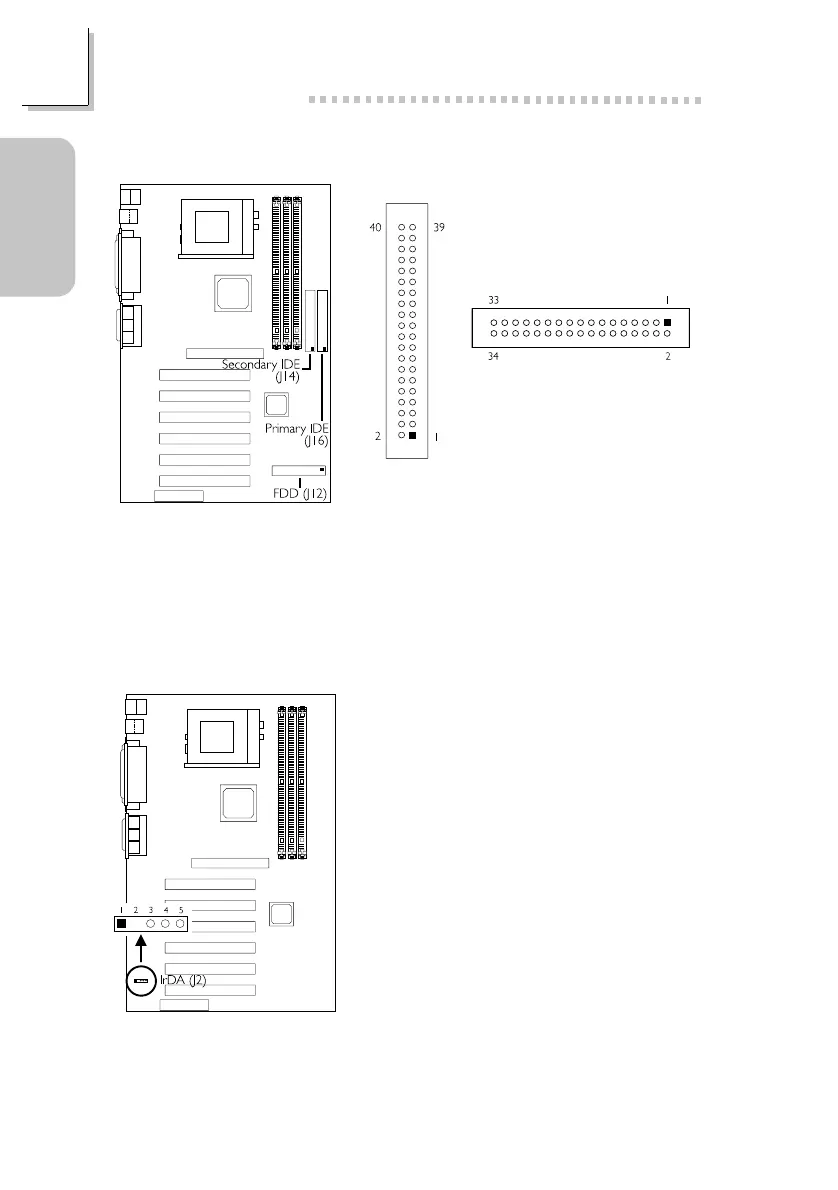

1.3.9 IrDA Connector
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on
some IrDA cable may be reversed from
the pin function defined on the system
board. Make sure to connect the cable to
the IrDA connector according to their pin
functions.
1.3.8 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
