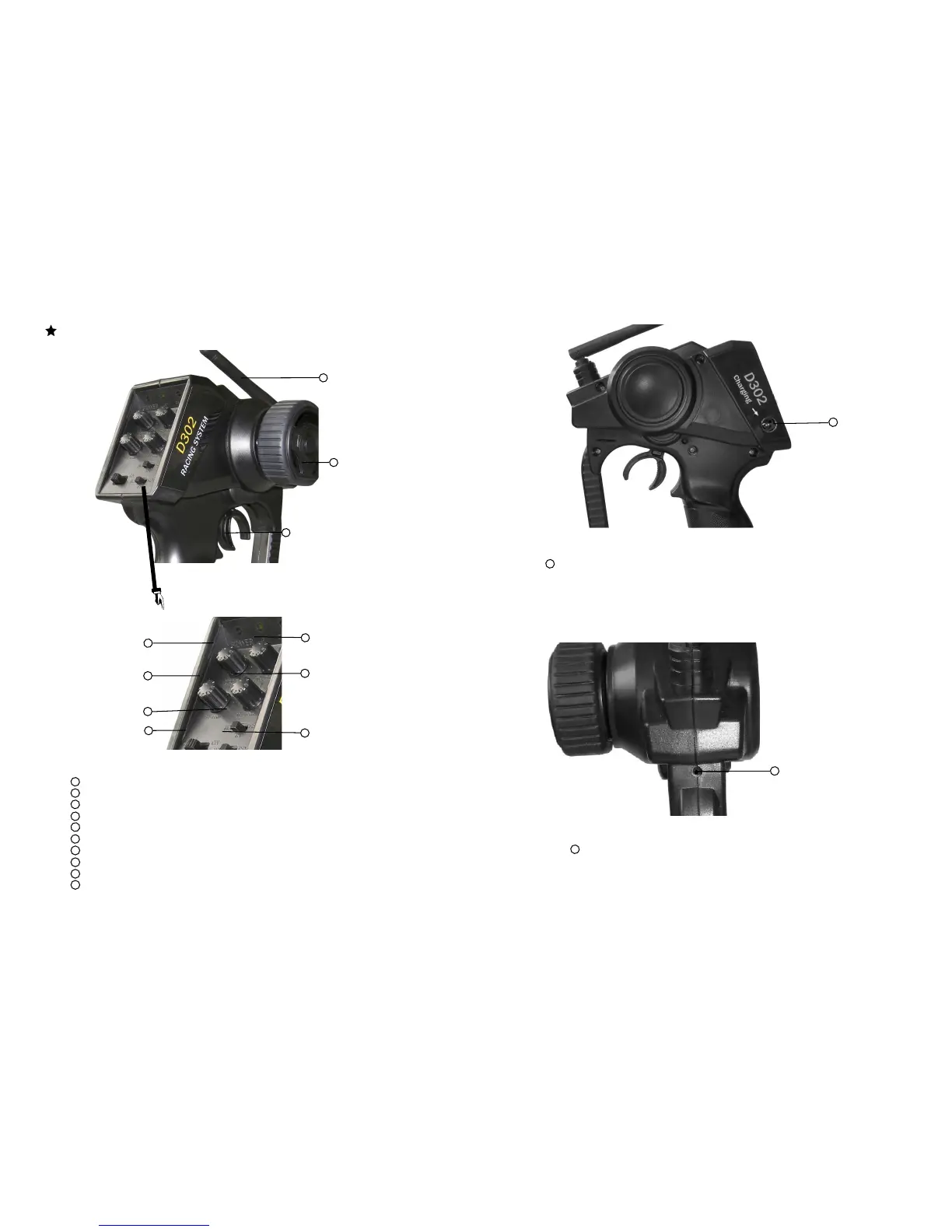

2.4GHz radio transmitter parts and their functions
2
-Antenna: Pull up the antenna straight before use.
-Power switch: Plide the switch to turn on or off.
-Throttle trigger: Please refer to the transmitter diagram.
-Steering wheel: Please refer to the transmitter diagram.
-ST-D/R trim: Adjust the steering servo angle ranging from 0% to 120%.
-TH-D/R trim: Adjust the throttle servo angle ranging from 0% to 120%.
-ST-TRIM: Adjust the steering neutral position, from 0% to 20%.
-TH-TRIM: Adjust the throttle neutral position, from 0% to 20%.
-ST-NOR/REV: Alide to left or right to choose steering mode.
-TH-NOR/REV: Push the trigger or pull it back to choose the throttle mode.
TH-D/R Trim
ST-D/R Trim
ST-Trim
TH-NOR/REV
TH-Trim
ST-NOR/REV
15
15
8
8
12
12
14
14
2
2
Power switch
Steering wheel
2.4G Antenna
Throttle trigger
13
13
Enlarged here
7
7
5
5
1
1
6
4
4
9
9
6
-Charging port: Charges Ni-Mh or Ni-Cd batteries only. Alkaline batteries are
not rechargable. NEVER charge your alkaline batteries.
3
-Throttle trigger: Please refer to the transmitter diagram.
Charging port
Throttle trigger
