DHP 3137096 - Step 5: Assemble Lower Bed Frames

DETAIL 1
After
assembling
DETAIL 2
12 /20

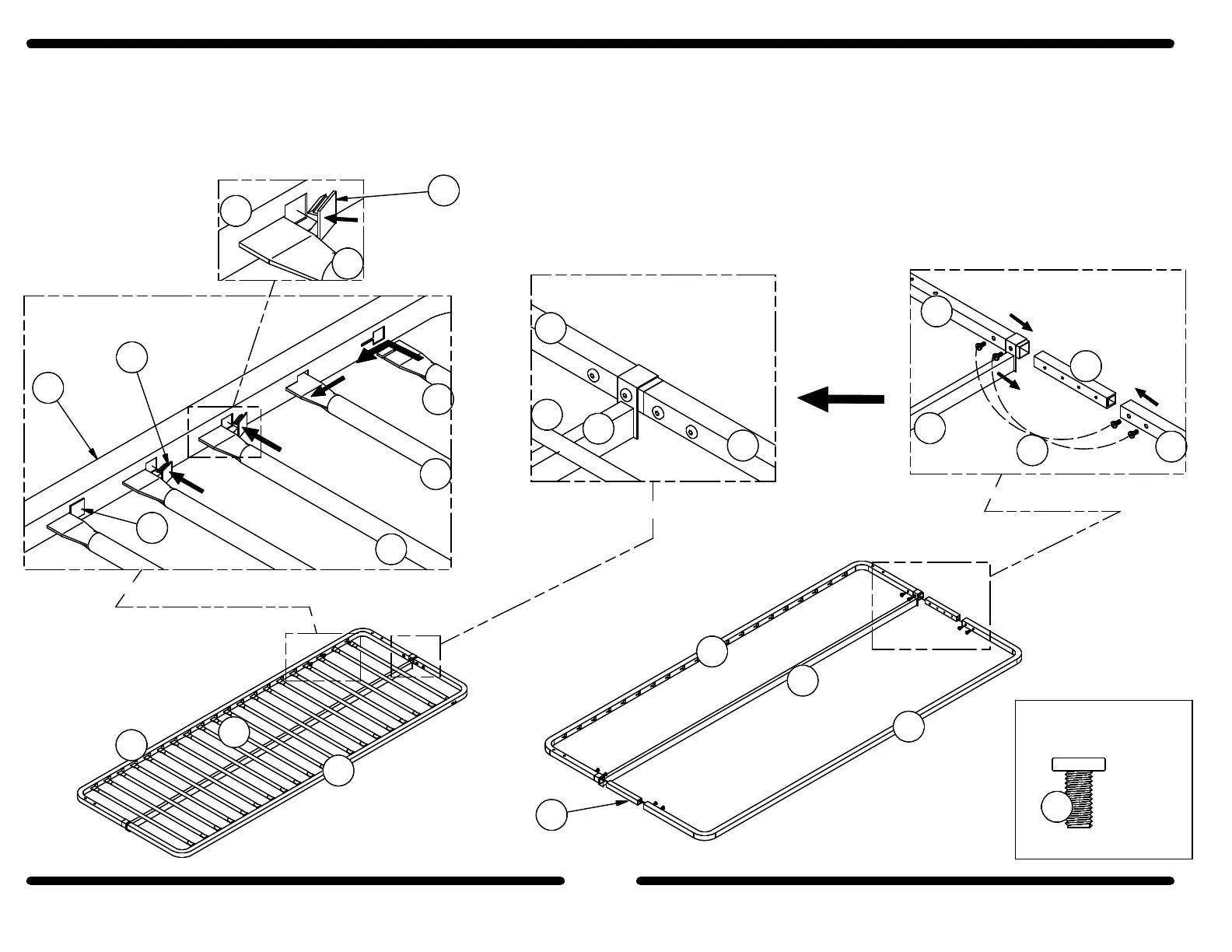

As shown in detail (1), attach the frame connector (S) to the lower bed frame-2 (V) by using bolts (6), and then attach lower
bed frame-1 (J) & middle rail (X) to the frame connector (S) by using bolts (6).
As shown in detail (2), attach the lower slats (O) to lower bed frames (V & J), then lock the slats in-place by using 2 plastic
plugs (Y) for each slat.
5
V
V
X
X
J
J
S
6
O
O
O
J
J
V
X
J
V
O
O
Y
Y
Y
J
O
B34313709605
Hardware Required
6
x 8
S
