DIAMIR Service Manual for specialist dealers 7

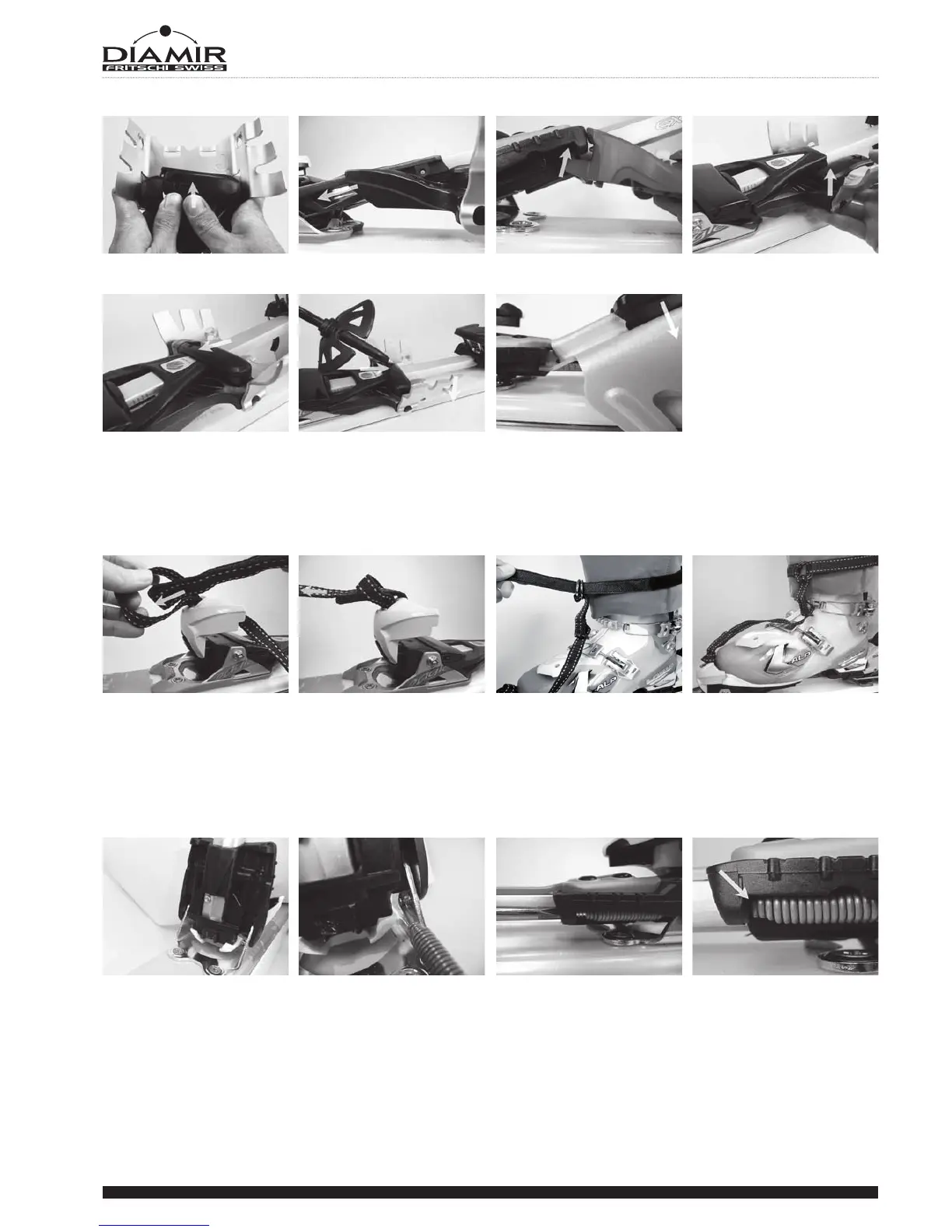

Picture 4.3 D Picture 4.3 E Picture 4.3 F Picture 4.3 G
Picture 4.3 H Picture 4.3 I Picture 4.3 J
4.4 Mounting the safety leash
A safety leash can be used in place of a ski brake.
Pictures 4.4 A–D show how to fix the safety leash on the toe piece (1) and on the leg.
Picture 4.4 A Picture 4.4 B Picture 4.4 C Picture 4.4 D
4.5 Mounting the return spring
1. Lift the binding 90° (Picture 4.5 A).
2. Hook the return spring on the bolt from below (Picture 4.5 B/C).
3. Move down the binding and tighten the screw until the spring touches the base plate (16) (Picture 4.5 D).
Picture 4.5 A Picture 4.5 B Picture 4.5 C Picture 4.5 D
