Diamond Audio Technology HEX S400 - Mounting Procedures; Ensuring a Proper Seal; Terminal Connection

Speed
Clips
Gasket
Screws
Grille
Crossover
Tweeter
Spring
Clip

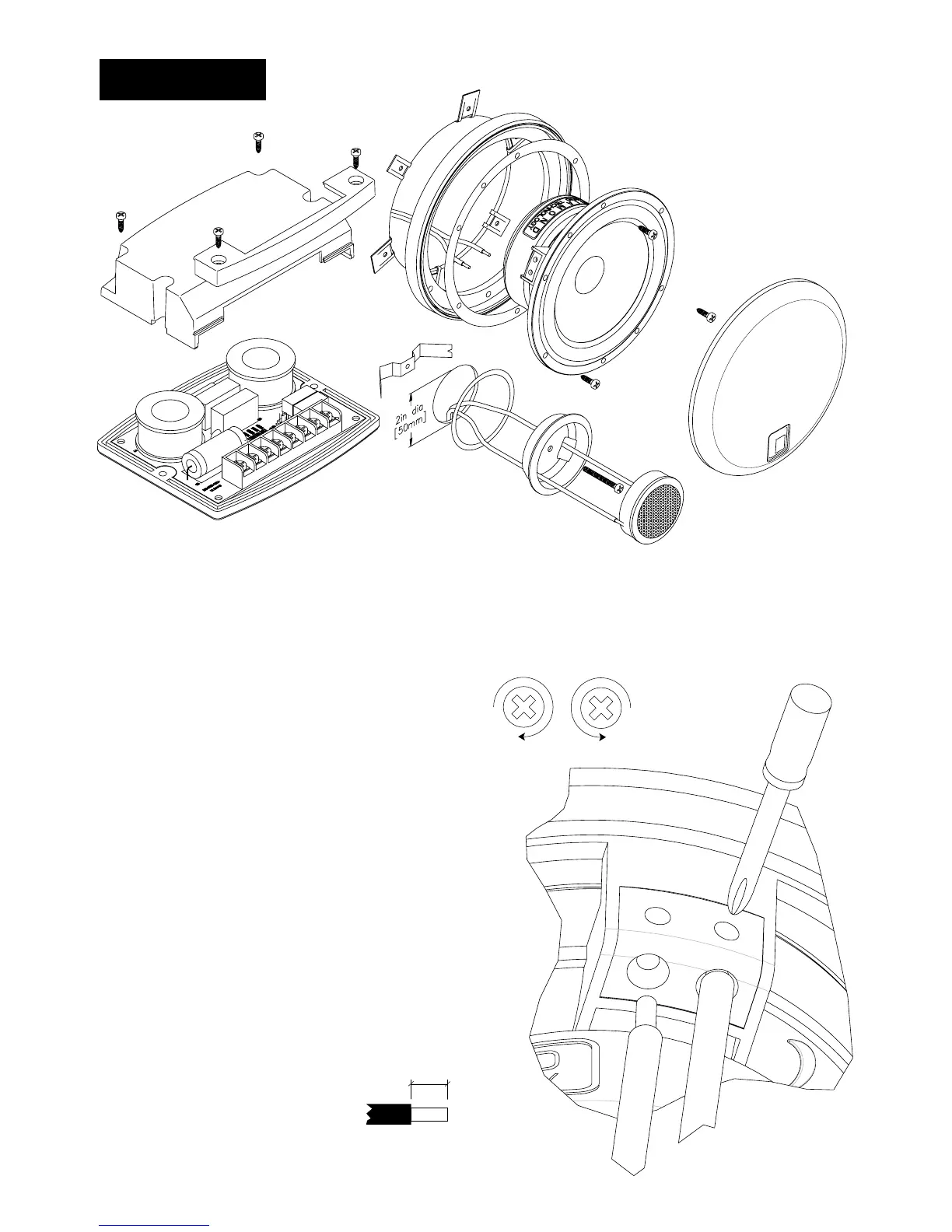

Check your available mounting depth before installing your HEX components. Use
extreme care when removing factory speakers, grilles and/or door panels. Be sure to
install the supplied foam gaskets on the drivers to insure a good seal for maximum
dynamic range.
Mounting
Grille Ring
Midbass/
Woofer
Mounting
Cup
Split Crossover
Cover
The terminals on the HEX drivers feature
a new recessed mechanism to allow direct
connection of the speaker cable up to 12
guage (2.5mm²). Simply strip the end of the
cable to 5/16 (8mm) DO NOT SOLDER,
insert into terminal and tighten down using
a #0/1 Philips-head screwdriver. This allows
for a very clean attach without exposing the
terminals to automotive metalwork.
Turn Clockwise
to tighten setscrew.
Turn Counterclockwise
to loosen setscrew.
8mm
*Up to 12AWG (2x2.5mm²)
speaker wire.
Speaker cable strip guage. Strip end
of wire to match illustration.
