Diamond Audio Technology HEX S400 - Passive 3-Way System Configuration; Adding S6.0 mx3 System

Diagram  shows that by combining the S6.0mx3 System Add-On (available separately
from your DAT dealer) with the S400 or S500 systems, a fully passive 3-way speaker
system can easily be assembled. Optionally, the RAF output of the primary HEX cross-
over may still be used to augment the front stage sound. The Sx3 crossover features
frequency and level controls to balance the bass/mid/high sound. The Sx3/HEX combo
offers great flexibility in a passive 3-way design.
+-
+-
- +
+ - + - + - + -
LPI HPI LPO HPO
REARTWEETERWOOFERINPUT
+
-+-+-+-
Sx3
HEX primary
S6.0mx3 Add-On
Rear Fill Driver
(optional RAF)
HEX Tweeter
HEX Midrange
S6.0m
Midbass

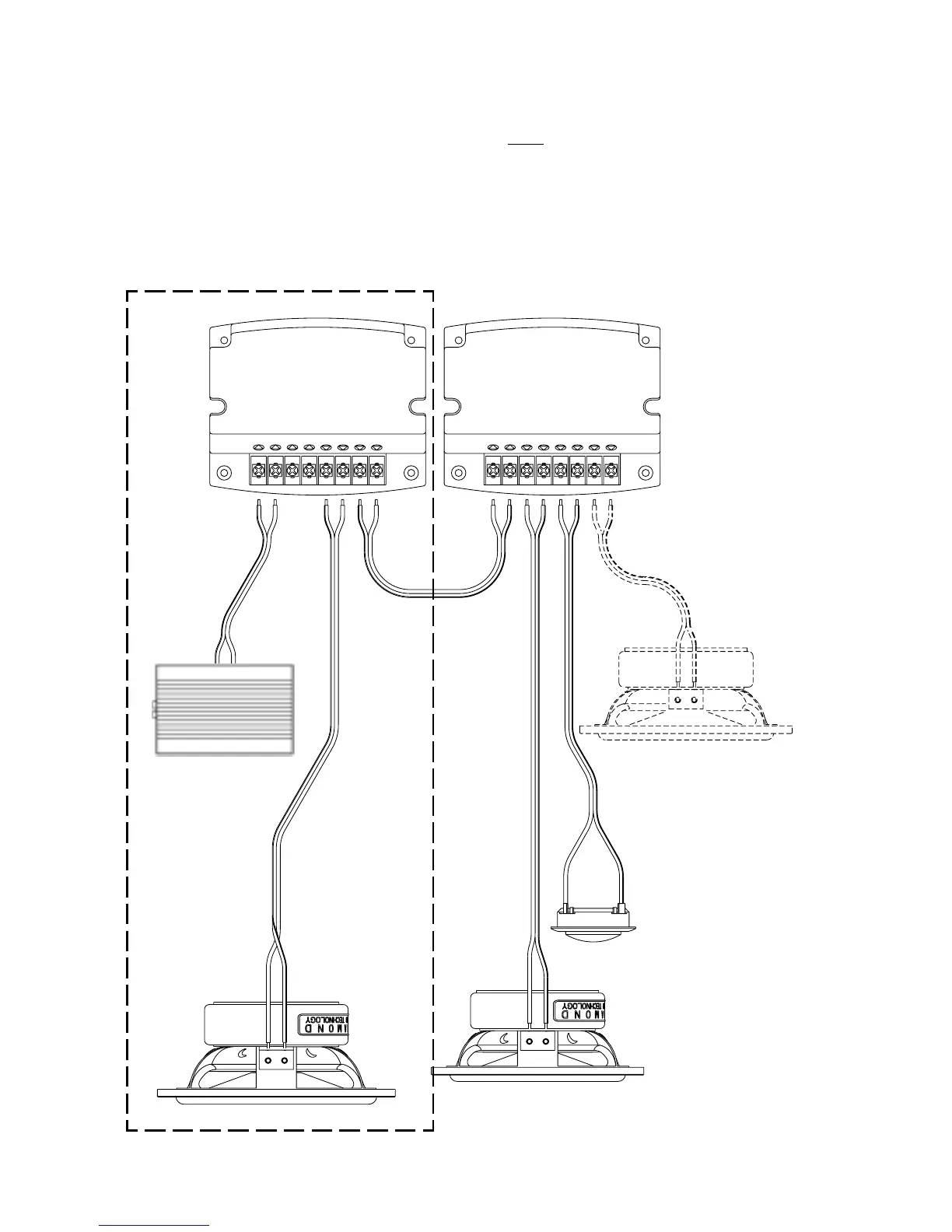

 Adding S6.0mx3 to form a passive 3-way system
(amp not supplied)
