Diamond Audio Technology HEX S400 - Front Stage with Rear-Fill System; Wiring Diagram for Rear-Fill

The HEX Series 2-way systems S400, S500 and S600 include an RAF rear-fill output as part of
the crossover design. The
RAF output is unfiltered to maintain a correct phase relationship to the
front stage, however, the output is attenuated by -10dB to optimize for typical vehicle size and
length. Rear-fill drivers are available separately from your DAT dealer.

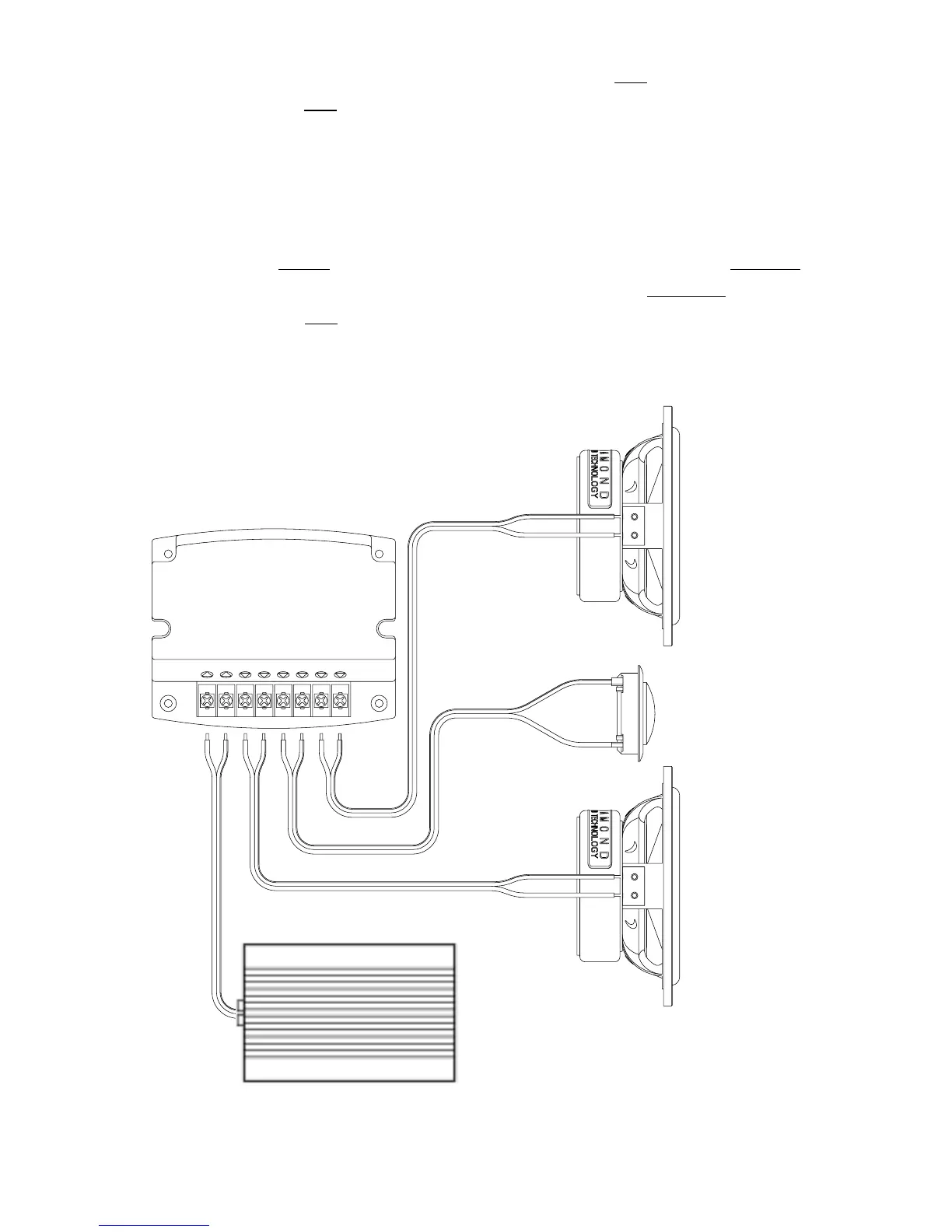

As shown in diagram  below, (1) connect the amplifiers speaker output (observing correct polar-
ity) to the crossovers
INPUT terminals. Then, (2) connect the terminals labeled WOOFER to the
woofer/midbass driver (i.e., S4.0m, S5.0m or S6.0m). (3), connect the TWEETER terminals to the
S.0ta/S.0ts tweeter. The RAF outputs (4), connect to the rear-fill driver. We suggest using the
S4.0m or S5.0m as the sound is timbre-matched to the front system.
- +- +
REARTWEETERWOOFERINPUT
+
-+-+-+-
Rear Fill Driver
HEX Midrange/
Midbass
HEX Tweeter
Crossover
 Front Stage with Rear-Fill system. Easy with the flexible HEX systems.
