Diamond 1100 - Page 42


THE PRESENT MANUAL IS PROPERTY OF THE MANUFACTURER. ANY REPRODUCTION, EVEN PARTIAL, IS PROHIBITED.



900
1100
94 710 94
850
150 700
49
222.5
323.5
63 814 63
450
1100
700
222.5
94
260 94
26
29
150
850
224
63 814 63

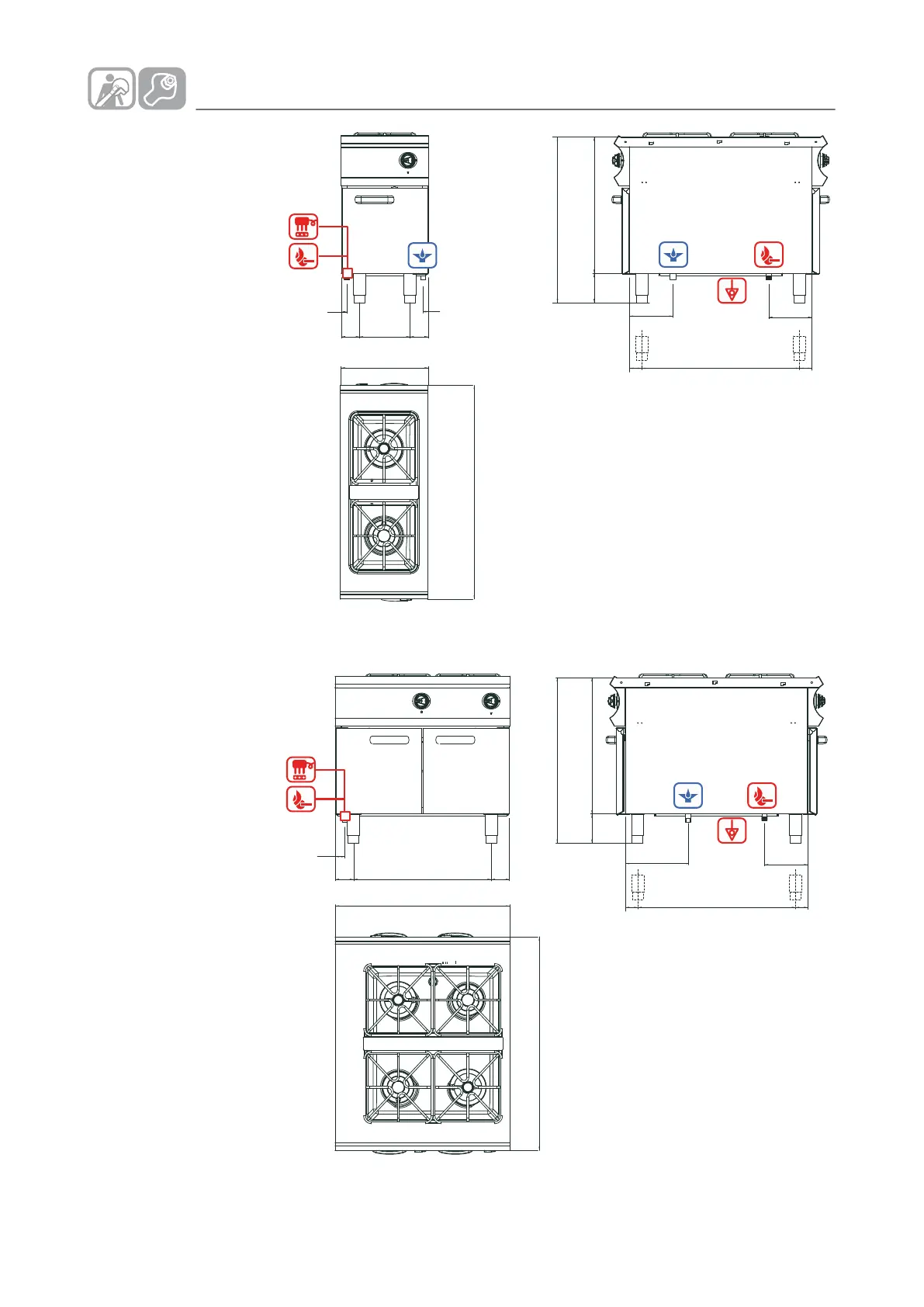

G2SA11
A: GAS Co NNECTIo N 3/4”
B: WASHING DRAINAGE
G4SA11
A: GAS Co NNECTIo N 3/4”
B: WASHING DRAINAGE
