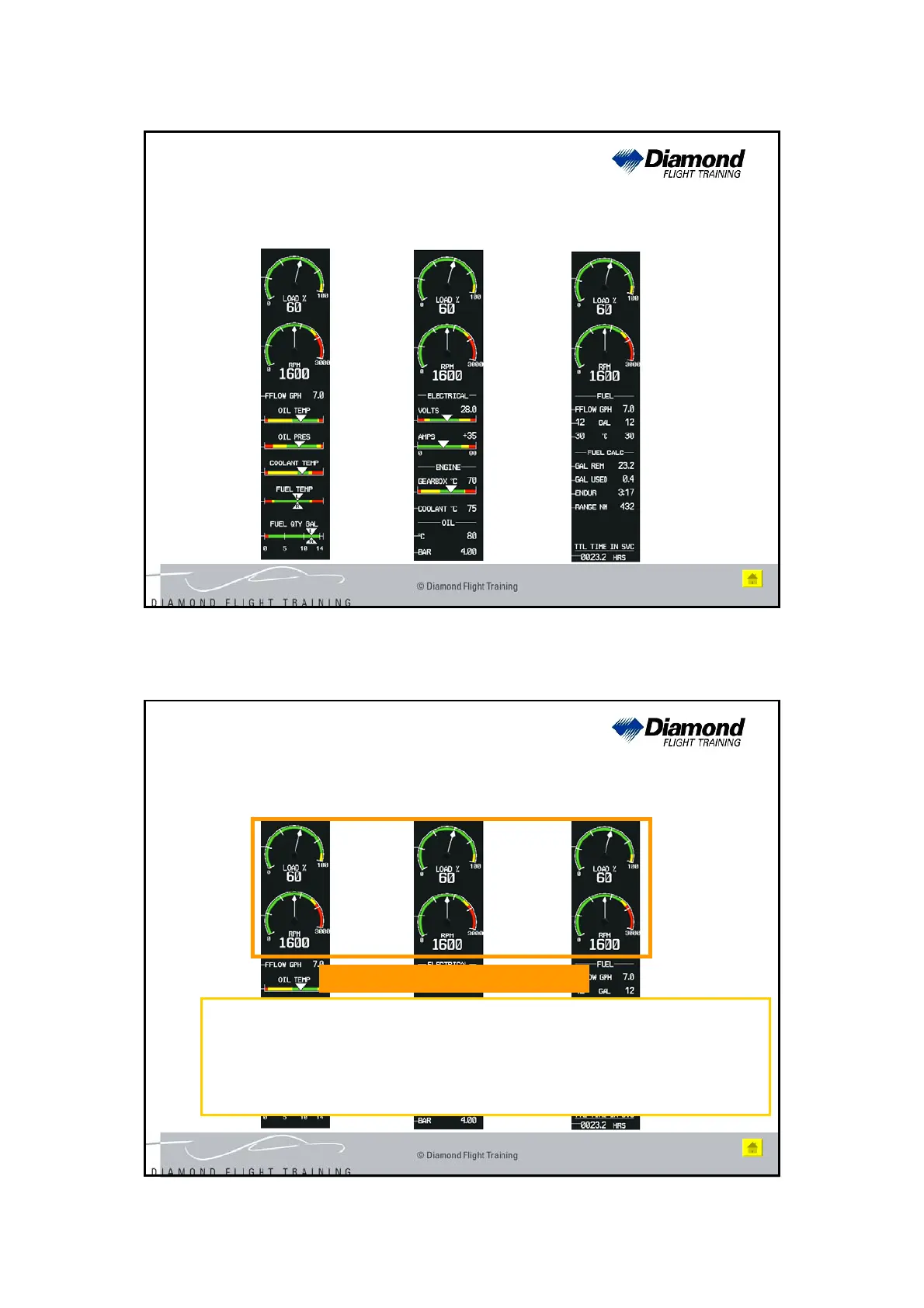

DA40 NG
73
Engine Indication System
Display when
pushing the
SYSTEM softkey
Display when
pushing the
FUEL softkey
Default page
Com
p
iled b
y
Peter Schmidleitner
DA40 NG
Default page
74
Engine Indication System
Display when
pushing the
SYSTEM softkey
Display when
pushing the
FUEL softkey
Upper part always the same
LOAD is not measured, but calculated from common rail fuel pressure,
ECU commanded injection time, manifold pressure and Prop RPM.
Fuel Flow is not measured, but calculated from fuel pressure and ECU commanded injection time.
Readouts and labels and pointers appear white to indicate normal operation yellow or red to indicate
caution or warning conditions
