DA40 NG
177

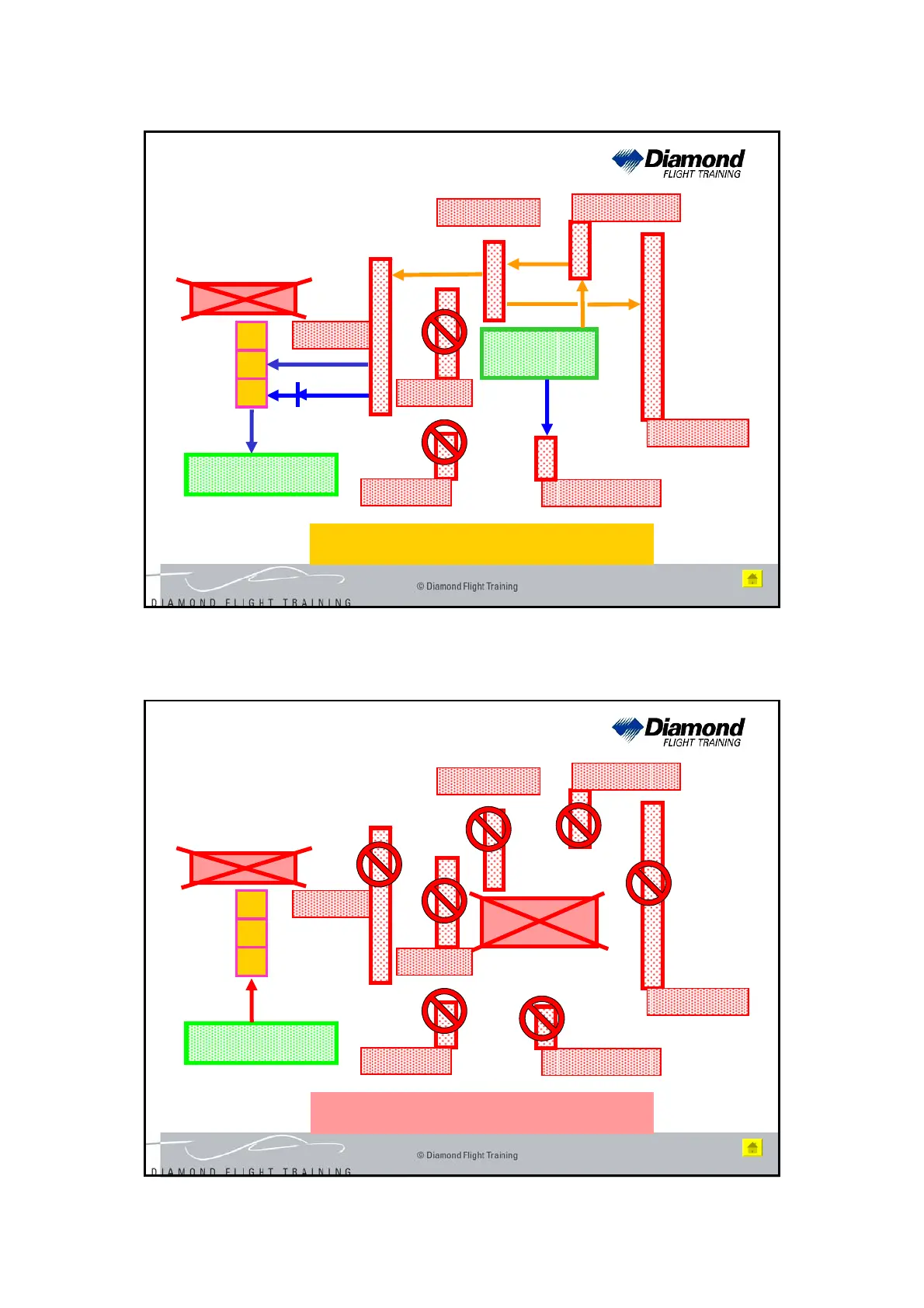

Battery Bus 2
Main Bus
Essential Bus
Main Battery
24V 13,6Ah
ECU
A
B
ECU Bus
ECU backup battery
24V 7,2 Ah
Avionic Bus
Hot Battery Bus
Battery Bus 1
Electrical system
Essential power supply
Alternator
Com
p
iled b
y
Peter Schmidleitner
DA40 NG
178
Battery Bus 2
Main Bus
Essential Bus
ECU
A
B
ECU Bus
ECU backup battery
24V 7,2 Ah
Avionic Bus
Hot Battery Bus
Battery Bus 1
Electrical system
Alternator
Total electric fail
