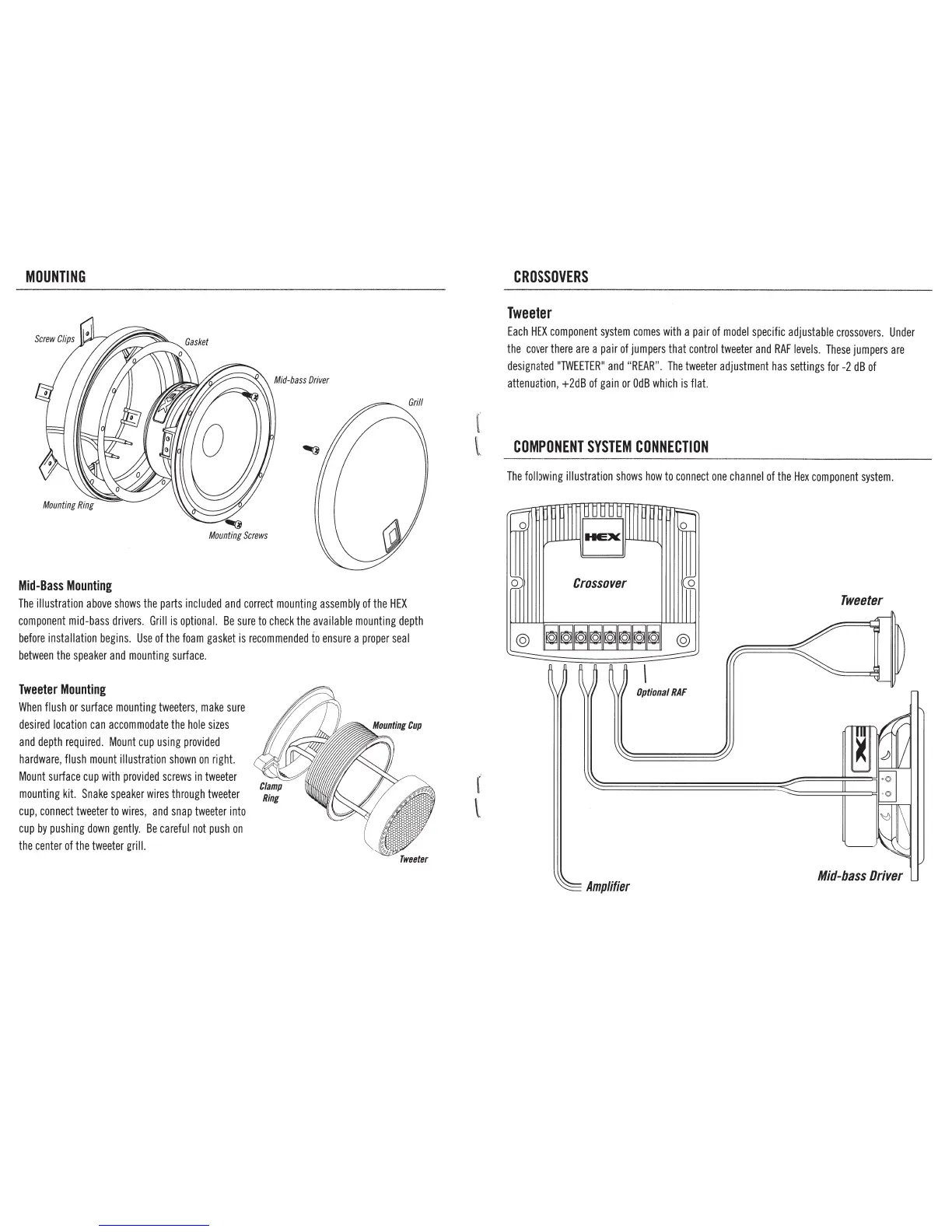

MOUNTING
Moun ting Screws
Mid-Bass Mounting
The illustration above shows the parts included and correct mounting assembly of the HEX
component mid-bass drivers. Grill is optional. Be sure to check the available mounting depth
before installation begins. Use of the foam gasket is recommended to ensure a proper seal
between the speaker and mounting surface.
Tweeter Mounting
When flush or surface mounting tweeters, make sure
desired location can accommodate the hole sizes
and depth required. Mount cup using provided
hardware, flush mount illustration shown on right.
Mount surface cup with provided screws in tweeter
mounting kit. Snake speaker wires through tweeter
cup, connect tweeter to wires , and snap tweeter into
cup by pushing down gently. Be careful not push on
the center of the tweeter grill.
[
CROSSOVERS
Tweeter
Each HEX component system comes with a pair of m odel specific adjusta ble crossovers. Unde r
the cover there are a pair of ju mpers that control tweeter and RAF levels . Th ese jumpers are
designated "TWEETER" and " REAR ". The tweeter adjustment has sett i ngs fo r -2 dB of
attenuation , +2dB of gain or OdB which is flat.
t COMPONENT SYSTEM CONNECTION
r
t
The following illustration shows how to connect one ch annel of the Hex co m po nent system.
0
EJ
0
0
Crossover
0
Tweeter
Amplifier
Mid-bass Driver
