Diamond Phase User Manual

OTHER POWER OPTIONS
The Phase can also be powered using power supplies such as the Pedal Power 2 Plus or
Juicebox. Power supplies with a dedicated 18-24V output that provide at least 100ma of
current can be used. Note that the output must be center positive or a polarity reversing
cable must be used!! Power supplies that do not have a 18-24V output can be used with a
special cable available from www.diamondpedals.com that combines 2 9V outputs and
reverses their polarity. In order to use this method, the 9V outputs of your power supply
must be electrically isolated from each other. If you are unsure, please contact the manu-
facturer of your power supply.

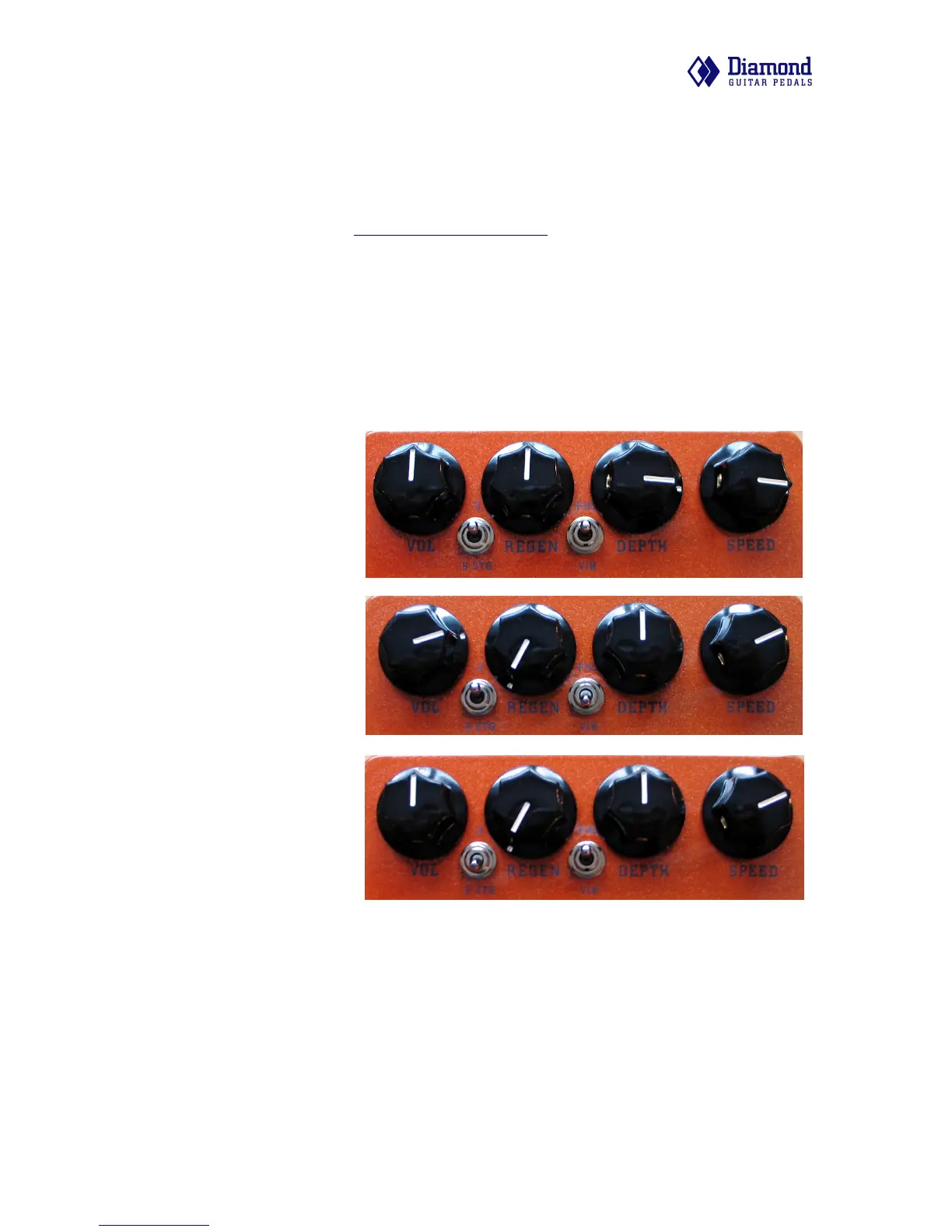

PRESETS
The Phase controls provide many tonal possibilities. As a starting point, here are a few
presets:
Spinning Rotor
Volume: 12 o’clock
Stages: 2
Regen: 12 o’clock
Mode: PHS
Depth: 3-4 o’clock
Speed: 3-4 o’clock
Vibey
Volume: 2-3 o’clock
Stages: 2
Regen: OFF
Mode: VIB
Depth: 12 o’clock
Speed: 2 o’clock
Throb and Swirl
Volume: 12 o’clock
Stages: 6
Regen: OFF
Mode: PHS
Depth: 12 o’clock
Speed: 2 o’clock
!
Phase user manual v1.00! 5

Diamond Phase Specifications

General

Switching	True Bypass
Power	9V DC
Input Impedance	1 MΩ
Output Impedance	1 kΩ
Controls	Feedback
Power Supply	9V Battery or External Power
