Diamond V2000A - 6 m Radial Adjustment Chart

6m Radial Adjustment
6m Center Internal Adjustment Rod
Frequency Length “A” Length “B”
52 MHz 2 5/8” 23”
52.5 MHz 3 5/8” 22”
53 MHz 4 5/8” 21”
53.5 MHz 5 5/8” 20”
For reference only, some installations may vary.
Tune for minimum VSWR.

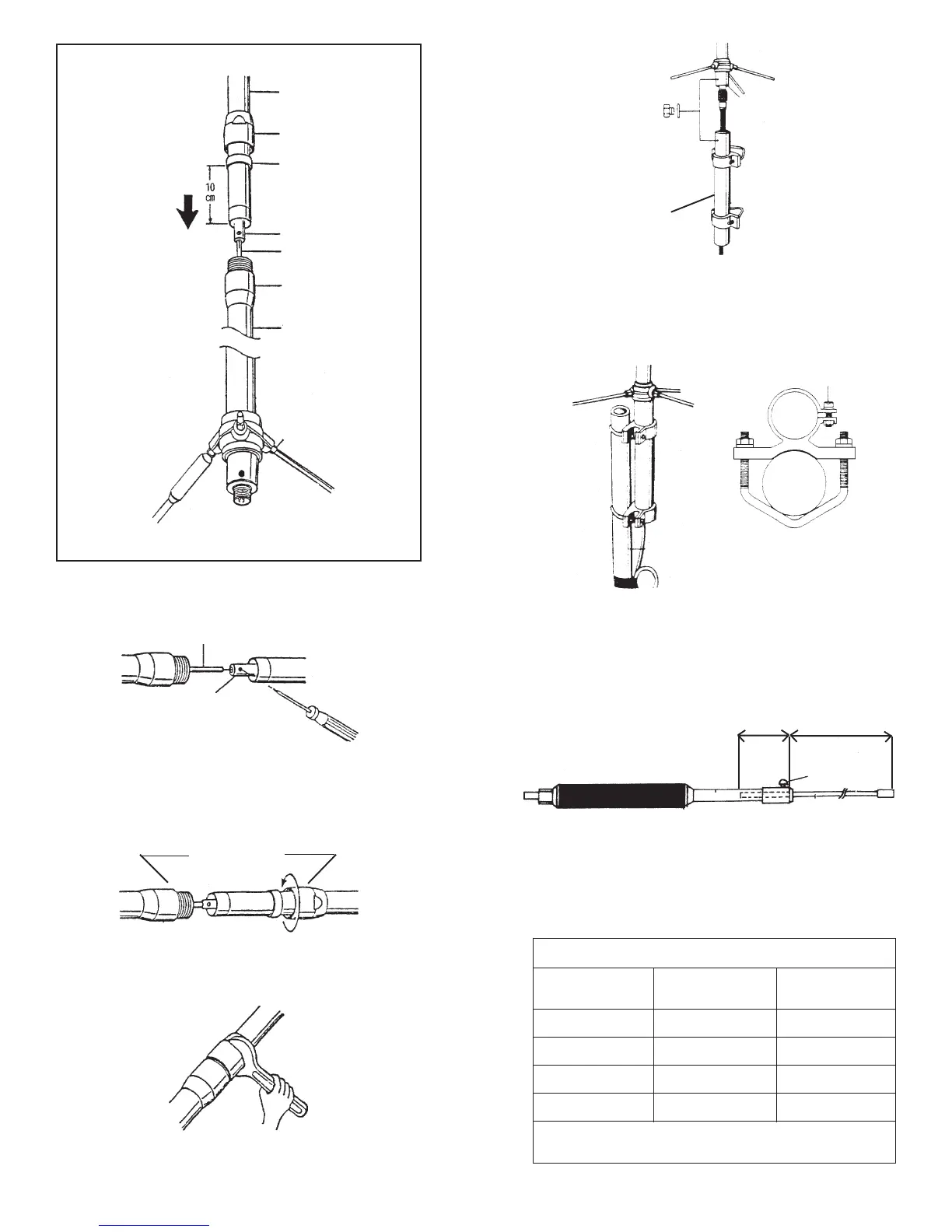

Figure 1
Fiberglass
Section
Joint
Black Line
Element Coupler
Element
Joint
Fiberglass
Section
Radials
Figure 2
Element
Element
Coupler
Figure 3
Section Joint
Figure 4
Figure 5
Coax Cable
Antenna
Support
Pipe
Figure 6
Mast
Pipe
Figure 7
V2000A 6m Counterpoise Radial
Set Screw
See Chart below
AB
6m
Counterpoise Radial
¾
