5
BUY ONLINE OR CLICK AND COLLECT IN STORE @ WWW.DIAMONDBACK.CO.UK

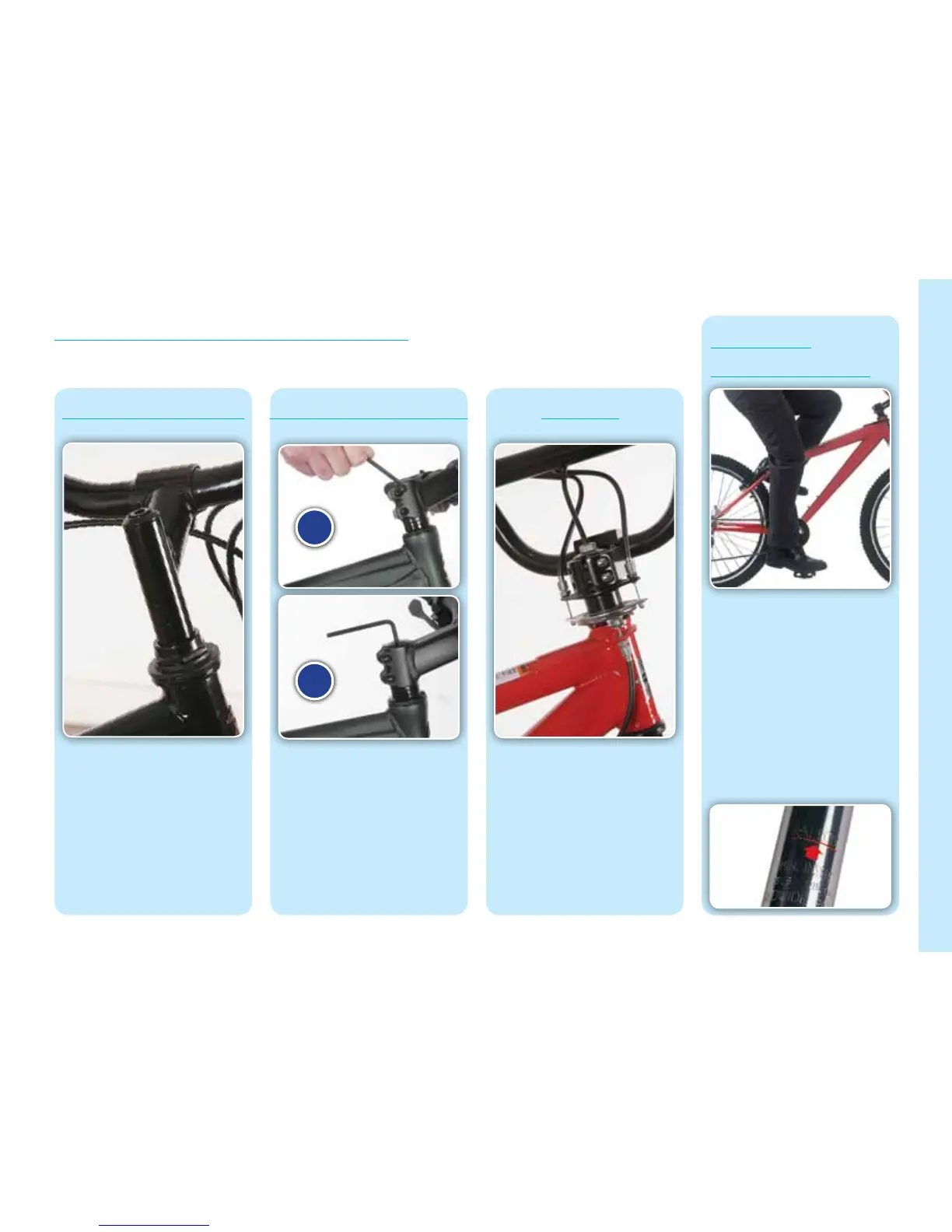

1 Remove the plastic cap
(if present) from the top of the
handlebar stem cap and loosen
the bolt using the 6mm allen key.
2 Turn the handlebar and set at
90 degrees to the front wheel. Set
at the required height and
re-tighten the bolt.
Important: Do not position the
stem outside the limit mark.
ATTACHING THE HANDLEBARS
1 Using an allen key, loosen the
2 sides bolts (A) followed by top
bolt (B) and turn the handlebar
through 90 degrees.
2 Re-tighten all bolts fully so
there is no movement whatsoever
and the handlebars are securely
fixed.
1 Loosen top nut, turn the
handlebar and set at 90 degrees
to the front wheel.
2 Re-tighten the nut fully so
there is no movement.
There are two types of handlebar attachment in general use, the stem type (single bolt) and the threadless or A-Head
type (two bolts). In addition, some BMX bikes have a different arrangement.
To adjust the saddle height,
loosen the clamp bolt using an
Allen key, spanner or the quick
release lever and adjust the
seat post to the required height.
Adjust the height of the saddle
so that when cycling along, your
leg will be slightly bent with the
pedal at its lowest point.
Important: When altering the
height of the saddle, you must not
pull the seat post out further than
the limit mark.
SADDLE
ADJUSTMENT
A
B
