EN
14

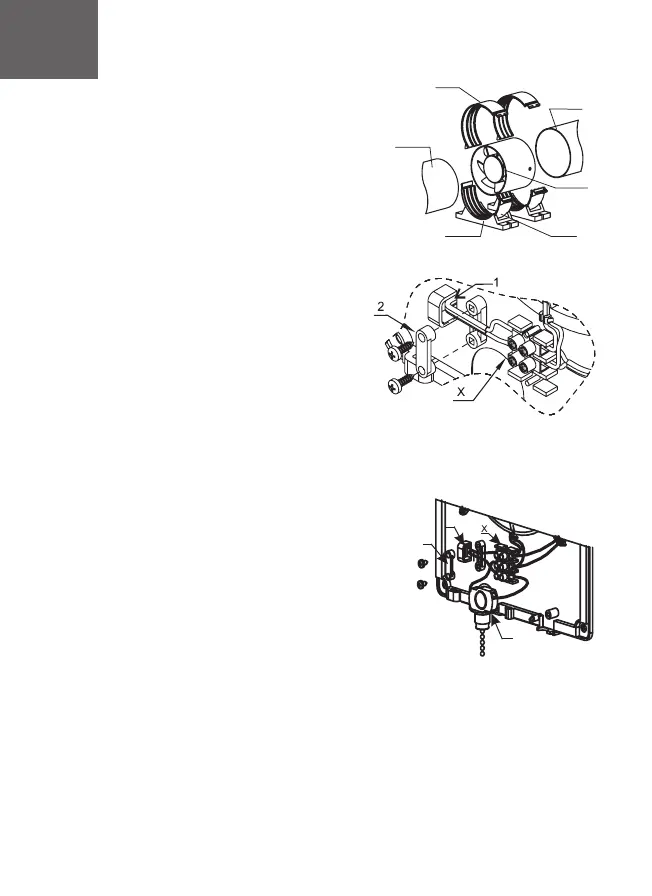

PRO (Pic. 4, 6)
•Install brackets of holders;
•Install first couple of covers in brackets ;
•Install the fan ;
•Butt airvents from two sides to the fan case
•Fix the fan case with airvents by means of another couple
of covers.
STANDARD (Pic. 7)
• remove the decorative front panel
• hold the power wire through the cable hole
1 in the case
• strip the insulation on 5-7 mm from the
wire end
• insert wires into terminal box X and press
them by tap screw
• fix the wires by means of cable clamp 2
• combine clamps of the decorative panel with
grooves in the case
• fix the panel with screw
STANDARD -02 (Pic. 8)
• remove the decorative front panel
• hold the power wire through the cable hole 1 in the case
• strip the insulation on 5-7 mm from the wire end
• insert wires into terminal box X and press them by tap
screw
• fix the wires by means of cable clamp 2
• combine clamps of the decorative panel with grooves in
the case
• fix the panel with screw
Pic.
6 PRO
Pic.
7 STANDARD
S3
1
2
2
Pic.
8 STANDARD -02
Maintenance
• disconnect the fan from the mains;
• remove the fan by disconnecting it from the duct and removed from the installation place.
• in case of heavy soiling, remove the fan impeller;
• wipe all plastic components with a soft cloth soaked in soapy water, it is not allowed transfer of washing
solution to the motor;
• wipe all surfaces dry;
• assemble a fan and set it in place.
fun
duct
connection
duct
connection
cover
cover
bracket
